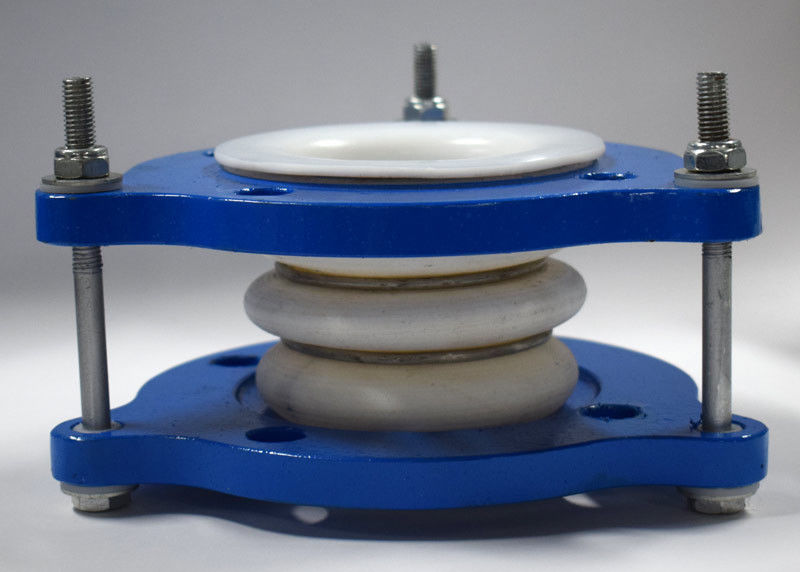

PTFE Bellows Expansion Joints For Chemical Pipes With ANSI Drilled Flange

PTFE Bellows Expansion Joints For Chemical Pipes With ANSI Drilled Flange
PTFE Bellows Expansion Joints For Chemical Pipes With ANSI Drilled Flange

Large Image :  PTFE Bellows Expansion Joints For Chemical Pipes With ANSI Drilled Flange

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JNTF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Certificate: CE Warranty: 18 Months
Working Pressure: PN6,PN10,PN16 Flange Standard: DIN,BS,ANSI
Flange Material: Stainless Steel Tie Rod: Carbon Steel,Stainless Steel
Company Type: Factory OEM: Yes
Material: PTFE Pressure: 0.3Mpa
High Light:

ptfe lined bellows

,

PTFE bellows expansion joints

PTFE expansion joints manufacture in China with reasonable price





Description



PTFE expansion joints are usually used in chemical pipes.
Daming convoluted PTFE is probably the optimum flexible hose for all applications being virtually inert to all chemicals,self cleaning ,non-stick,excellent fatigue,kink resistant and extremely flexible. Daming is produced by a patented process with shallow helical convolutions and helix outer stainless wire support.
SS304 stainless steel braided PTFE/ lined hose is mainly composed of inner hose (ideal anti-corrosion material) and stainless steel braid outside for protection and loaning pressure, with buckled metal connectors on both ends.




Features
1. PTFE expansion joint has Excellent chemical resistance
2. PTFE expansion joint has High and low temperature resistance(-100°C to 260°C)
3. PTFE expansion joint has High pressure resistance
4. PTFE expansion joint has Anti-aging,long life without an aging problem
5. PTFE expansion joint has Wear resistance, high lubrication
6. PTFE expansion joint has Anti-corrosion ,non-stick, easily cleaned
7. PTFE expansion joint has Fire resistance
8. PTFE expansion joint has Electrically insulated
9. PTFE expansion joint has Excellent flexibility


Structure
Inside: PTFE hose, the hose can be smoothbore PTFE , and also convoluted , for high and low temperature used, anti-corrosive, non-stick.
Outside: SUS304 Stainless steel braided. High pressure resistance. All kinds of couplings can be available.



Technique Parameter

Diameter . DN  mm Three waves of the maximum compensate ability Allow the largest work force

Three-wave
length
L mm

Connection flange size
HG5010-58/HGJ45-92(HG20593-93/97)

Axial X mm Transverse Y mm Angular θ Internal pressure   PN0.6Mpa PN1.0Mpa
02-1 02-2 TF02-1 TF02-2 Kpa K n-M K n-M
100 26 25 33 20 0.5 0.6 28 95 170   180 8-M16
124 29 0.4 0.5 24 105 200 8-M16 210
150 32 20 26 18 115 225 240 12-M20
200 40 15 0.35 0.4 17 125 280 295
250 42 27 0.3 0.35 14 135 335 12-M16 350
300 44 13 145 395 12-M20 400
350 46 0.2 0.25 150 445 460
400 0.1 0.1 11 160 495 16-M20 515 16-M22
450 48 12 16 180 550 565 20-M22
500 0.08 200 600 20-M24 620 20-M27
600 49 0.05 0.06 10 220 705 24-M24 725
700 50 240 810 24-M27
800 10 13 260 920
900 0.03 0.035 9 280 1020
1000 52 300 1120 28-M27
1200 8 10 7 320



JINGNING PTFE expansion joints can be produced with ANSI,EN,BS,JIN,GOST,JIS standard flanges.PTFE expansion joints have excellent Corrosion resistance.

The working pressure of PTFE expansion joints can be 1.0Mpa .

Contact Details
Shanghai Songjiang Jingning Shock Absorber Co.,Ltd.

Contact Person: Wu

Tel: +86 15093112546

Send your inquiry directly to us (0 / 3000)
