Home ProductsPTFE Expansion Joints

PN6 PN10 PN16 Hdpe Expansion Joint , PTFE Expansion Bellow Low Coefficient

China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
Timely delivery,good quality products

—— Manul

We received rubber expansion joints,then test.Good quality!

—— Mike

Good quality and good price!

—— Sofia

I'm Online Chat Now

PN6 PN10 PN16 Hdpe Expansion Joint , PTFE Expansion Bellow Low Coefficient

PN6 PN10 PN16 Hdpe Expansion Joint , PTFE Expansion Bellow Low Coefficient
PN6 PN10 PN16 Hdpe Expansion Joint , PTFE Expansion Bellow Low Coefficient PN6 PN10 PN16 Hdpe Expansion Joint , PTFE Expansion Bellow Low Coefficient

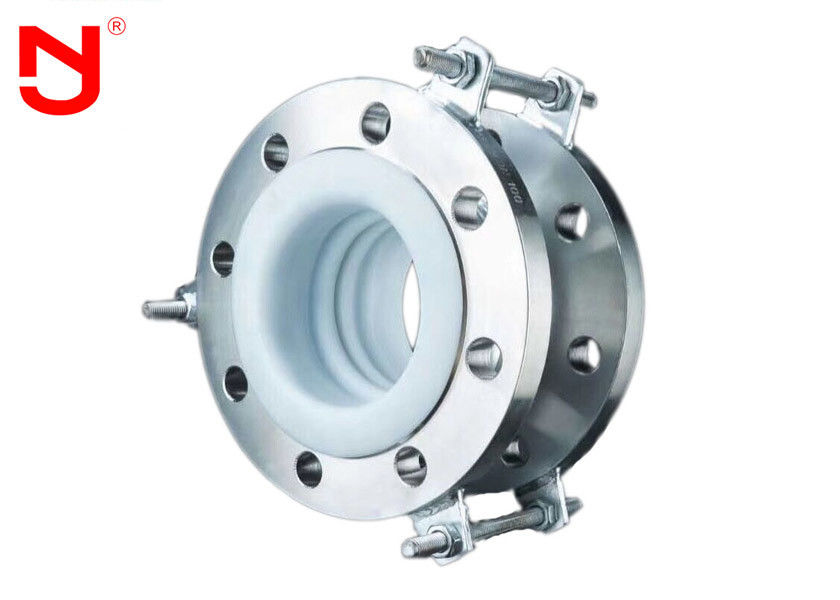

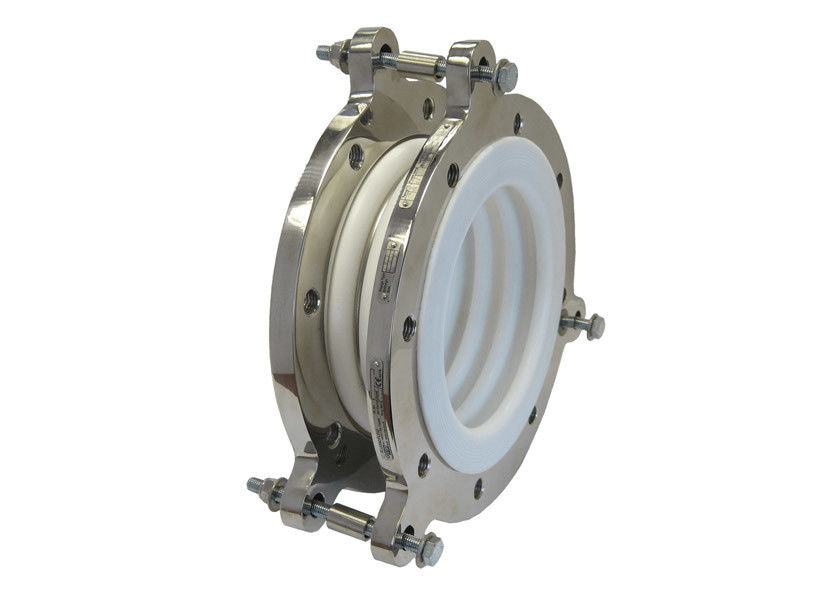

Large Image :  PN6 PN10 PN16 Hdpe Expansion Joint , PTFE Expansion Bellow Low Coefficient

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JNTF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Size: DN32---DN1800 Material: PTFE
Working Pressure: PN6,PN10,PN16 Flange Standard: DIN,BS,ANSI,JIS,AS
Flange Material: Carbon Steel,Stainless Steel Tie Rod: Carbon Steel,Stainless Steel
High Light:

ptfe lined bellows

,

ductwork expansion joints

PTFE corrugated bellow expansion joint with flange

Feature

1.Flexible joint with PTFE inner
2. Have excellent dielectric and chemical corrosion-resistance;
3. Non-absorbent, non-stick, non-conductive, low coefficient and non-aging properties
4.For oil, chemicals, food, medicine, space, and other fields.


Technique Parameter



Diameter DN mm Three waves of the maximum compensate ability Allow the largest work force

Three wave
length
L mm

Connection flange size
HG5010-58/HGJ45-92(HG20593-93/97)

Axial X mm Transverse Y mm Angular θ Internal pressure   PN0.6Mpa PN1.0Mpa
02-1 02-2 TF02-1 TF02-2 Kpa K n-M K n-M
100 26 25 33 20 0.5 0.6 28 95 170   180 8-M16
124 29 0.4 0.5 24 105 200 8-M16 210
150 32 20 26 18 115 225 240 12-M20
200 40 15 0.35 0.4 17 125 280 295
250 42 27 0.3 0.35 14 135 335 12-M16 350
300 44 13 145 395 12-M20 400
350 46 0.2 0.25 150 445 460
400 0.1 0.1 11 160 495 16-M20 515 16-M22
450 48 12 16 180 550 565 20-M22
500 0.08 200 600 20-M24 620 20-M27
600 49 0.05 0.06 10 220 705 24-M24 725
700 50 240 810 24-M27
800 10 13 260 920
900 0.03 0.035 9 280 1020
1000 52 300 1120 28-M27
1200 8 10 7 320



Contact Details
Shanghai Songjiang Jingning Shock Absorber Co.,Ltd.

Contact Person: Wu

Tel: +86 15093112546

Send your inquiry directly to us (0 / 3000)
