2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design

2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design
2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design 2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design 2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design

Large Image :  2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Size: DN50---DN3000 Bellows Material: SS304,SS316,SS321
Flange Material: Stainless Steel,Carbon Steel Flange Standard: ANSI,DIN,BS,AS,JIS
Working Pressure: 0---6.0Mpa OEM&ODM: Yes
Length: Customized Size Product Name: Metal Joint
High Light:

flanged expansion joint

,

stainless steel bellows

Stainless steel flexible metal expansion bellows Expansion joint bellow compensator

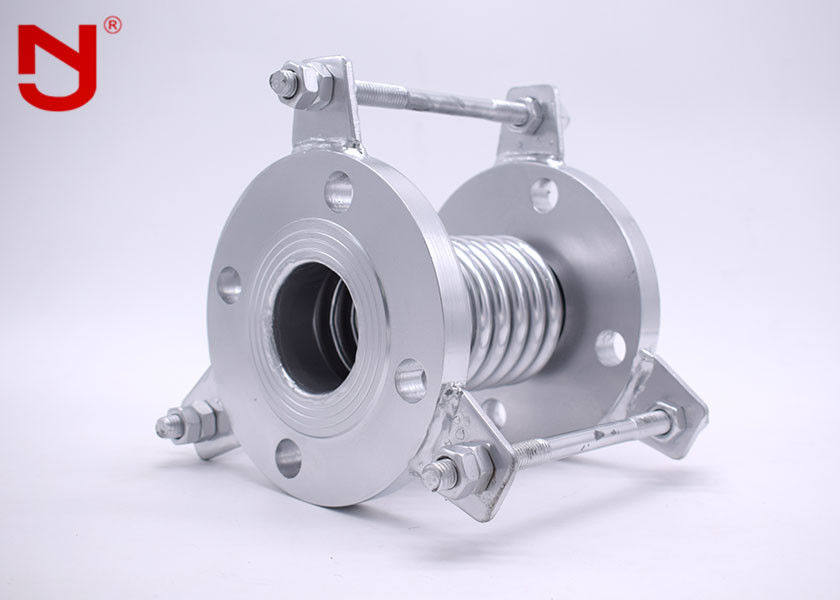

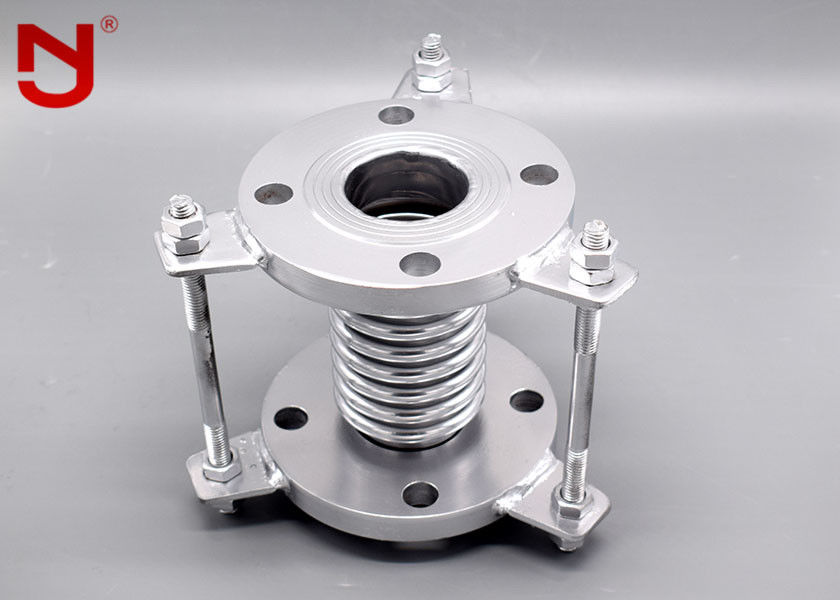

Axial internal pressure type corrugated compensator, or axial internally pressurized expansion joint is a kind of corrugated compensator. It is an equipment to compensate dimensional change caused by thermal expansion or mechanical vibration of pipeline/conduit/vessel through corrugated compensator's elastic component. Based on above, it can decrease the deforming stress on pipeline and increase service life of pipeline.



Structural material: The corrugated compensator can be made of metal and nonmetal. Usually, the material of metal one include austenitic stainless steel, corrosion resistant alloy & etc. while nonmetal one include PTFE, rubber and composite material.



Wall thickness: Refer to the wall thickness, there are thick-wall corrugated compensator and thin-wall corrugated compensator. The thick one is mostly used for pressure vessel to compensate vessel's own thermal deformation. In view of its little compensation dosage, only 1~2 waves needed with wall thickness in 3~22mm generally. For the thin one, corrugated compensator is used in the flexible part of pipeline. Its monolayer thickness is less than 3mm(The thickness of most stainless steel is 0.2~3mm). Since corrugated compensator used in pipeline requires compensation dosage as much as possible, wall thickness should be reduced in max to get higher flexibility under premise of satisfying pressure-bearing. Considering environmental corrosion, most corrugated compensator are made of stainless steel. If higher pressure-bearing is requested, thin wall multilayer stainless steel structure could be better.

Number of layer: According to the layer, corrugated compensator can be divided into single-ply bellows and multi-ply bellows. The manufacture of single-ply bellows is simple with low cost. It is often used in the condition of dead load together with displacement compensation. On the premise of satisfying design of pressure-bearing, compensation dosage, rigidity and fatigue life, single-ply bellows has better competitiveness. Multi-ply bellows(often more than 2 layers) are commonly used in crucial pipeline in the condition of alternating load. Compared with single-ply bellows, multi-ply one has less rigidity and better fatigue resistance under same pressure bearing.



Structure: Corrugated compensator also can be divided into two classes of simplex and complex type due to different structure. Both of them could weld draw rod if required. Draw rod will weaken the axial thrust caused by internal pressure in pipeline, while no such effect if no draw rod.



Connection type: Corrugated compensator have two kinds of connection type, welded connection & flange connection.



Product features:Axial internal type corrugated compensator can be assembled or disassembled easily with advanced design, rational construction in compact size. It has a series of outstanding characteristic, such as high & low temperature resistance, high pressure resistance, corrosion resistance, antifatigue, long service life, high pressure-bearing, large compensation dosage, axial recurrent motion bearing, excellent noise reduction & etc..



2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design 0

Products Features:

  • The compensator&metal expansion joints are used in a wide variety of piping application tocompensate for thermal expansion or contraction and to absorb equipment vibration or pipe motions.

  • We manufacture single, two-ply and multiply testable bellows in different sizes using precision forming technology.

  • They are used as an retractable elastic compensation element, has the advantages of thereliable working,good performance,compact structure.

  • The compensator&Metal expansion joints absorb movement in piping caused by theraml changes.

  • Durability and excellent chemical resistance.

  • Widely used to absorb termal expansion in pipe systems carring water, steam, oil and gases

  • Bellows are stainless steel with welding flanges,fixed or floating.

  • Stainless bellows compensators or expansion joints are designed according to the client'sspecifications ad design conditions

  • Control rods available ,as required.

  • Standard sizes range from 2" through 84".

 2"-84" Stainless Steel Bellows Expansion Joint High Pressure Bearing Robust Body Design 1

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
