| Size: | DN32---DN1800 | Material: | PTFE |
|---|---|---|---|
| Working Pressure: | PN6,PN10,PN16 | Flange Standard: | DIN,BS,ANSI,JIS,AS |
| Flange Material: | Carbon Steel,Stainless Steel | Tie Rod: | Carbon Steel,Stainless Steel |
| Company Type: | Factory | OEM: | Yes |
| High Light: | PTFE bellows expansion joints,ductwork expansion joints |
||
Industrial Customized Round White Ptfe Flexible Copper Expansion Joint
Feature

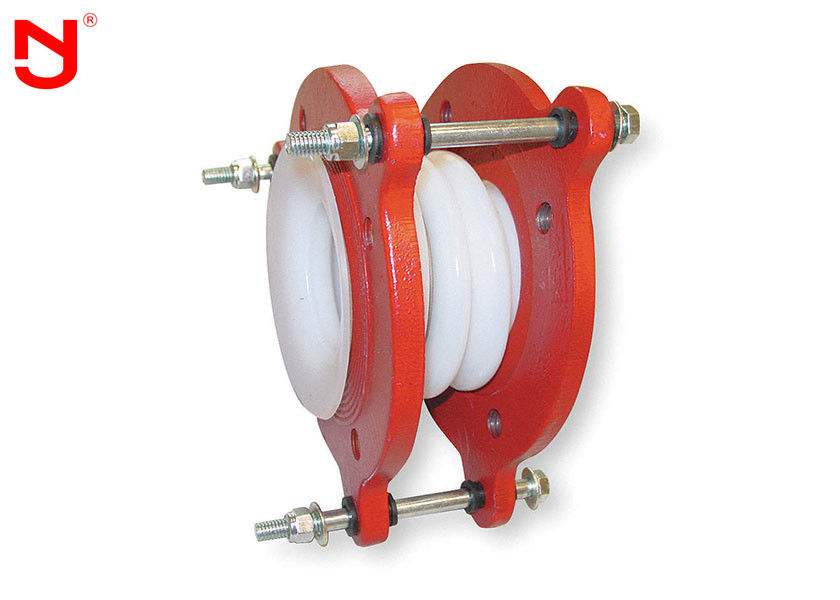

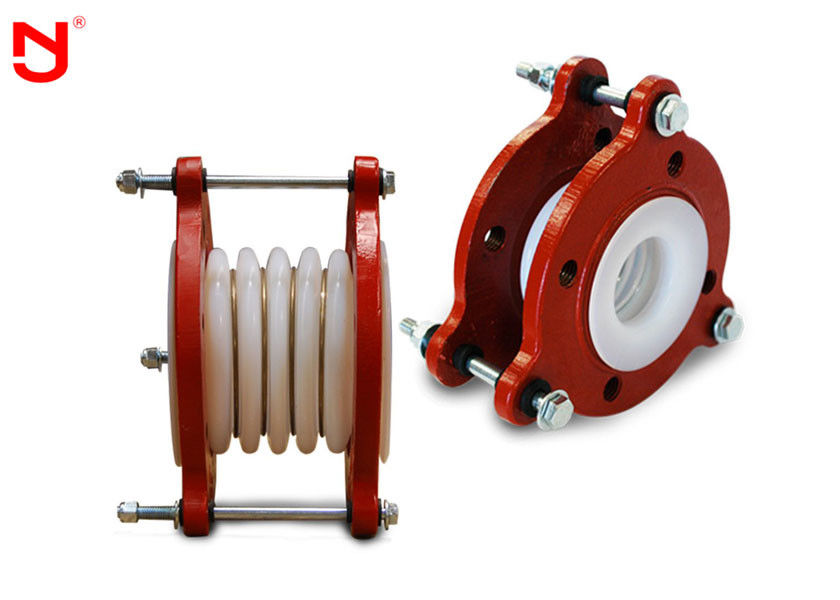

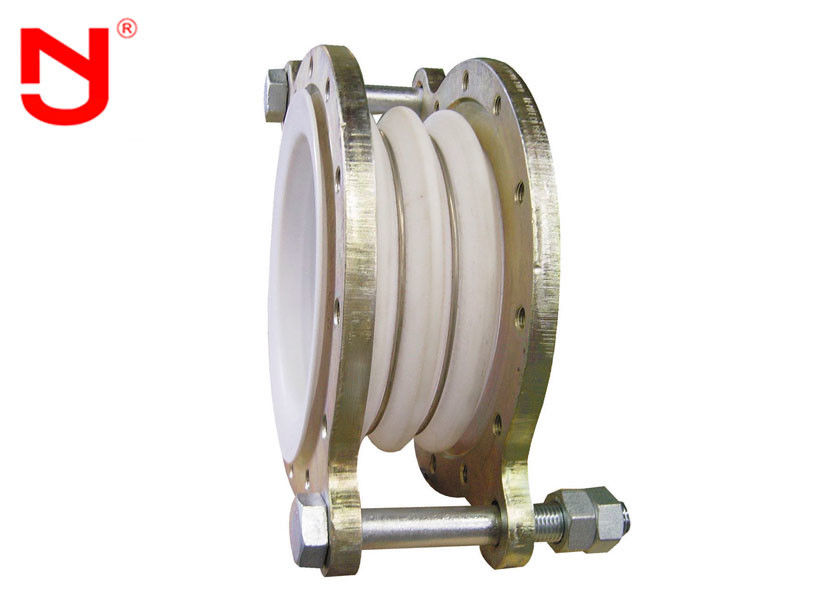

PTFE corrugated bellow expansion joint with flange
1.Flexible joint with PTFE inner
2. Have excellent dielectric and chemical corrosion-resistance;
3. Non-absorbent, non-stick, non-conductive, low coefficient and non-aging properties
4.For oil, chemicals, food, medicine, space, and other fields.
Technique Parameter
| DiameterDN mm | Three waves of the maximum compensate ability | Allow the largest work force | Three-wave | Connection flange size | ||||||||
| Axial X mm | Transverse Y mm | Angular θ | Internal pressure | PN0.6Mpa | PN1.0Mpa | |||||||
| 02-1 | 02-2 | TF02-1 | TF02-2 | Kpa | K | n-M | K | n-M | ||||
| 100 | 26 | 25 | 33 | 20 | 0.5 | 0.6 | 28 | 95 | 170 | 180 | 8-M16 | |
| 124 | 29 | 0.4 | 0.5 | 24 | 105 | 200 | 8-M16 | 210 | ||||
| 150 | 32 | 20 | 26 | 18 | 115 | 225 | 240 | 12-M20 | ||||
| 200 | 40 | 15 | 0.35 | 0.4 | 17 | 125 | 280 | 295 | ||||
| 250 | 42 | 27 | 0.3 | 0.35 | 14 | 135 | 335 | 12-M16 | 350 | |||
| 300 | 44 | 13 | 145 | 395 | 12-M20 | 400 | ||||||
| 350 | 46 | 0.2 | 0.25 | 150 | 445 | 460 | ||||||
| 400 | 0.1 | 0.1 | 11 | 160 | 495 | 16-M20 | 515 | 16-M22 | ||||
| 450 | 48 | 12 | 16 | 180 | 550 | 565 | 20-M22 | |||||
| 500 | 0.08 | 200 | 600 | 20-M24 | 620 | 20-M27 | ||||||
| 600 | 49 | 0.05 | 0.06 | 10 | 220 | 705 | 24-M24 | 725 | ||||
| 700 | 50 | 240 | 810 | 24-M27 | ||||||||
| 800 | 10 | 13 | 260 | 920 | ||||||||
| 900 | 0.03 | 0.035 | 9 | 280 | 1020 | |||||||
| 1000 | 52 | 300 | 1120 | 28-M27 | ||||||||
| 1200 | 8 | 10 | 7 | 320 | ||||||||
