High Pressure Ductwork Expansion Joints Non Absorbent Weather Proof For Oil Industry

High Pressure Ductwork Expansion Joints Non Absorbent Weather Proof For Oil Industry

ptfe lined bellows

ductwork expansion joints

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

JNTF

Contact Us

Request A Quote
Product Details
Size:
DN32---DN1800
Material:
PTFE
Working Pressure:
PN6,PN10,PN16
Flange Standard:
DIN,BS,ANSI
Flange Material:
Carbon Steel
Tie Rod:
Carbon Steel,Stainless Steel
Company Type:
Factory
OEM:
Yes
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

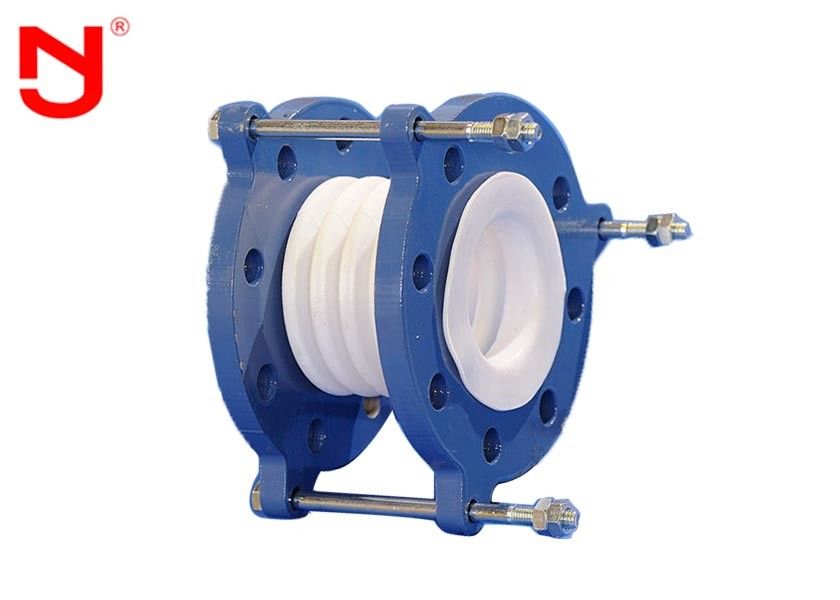

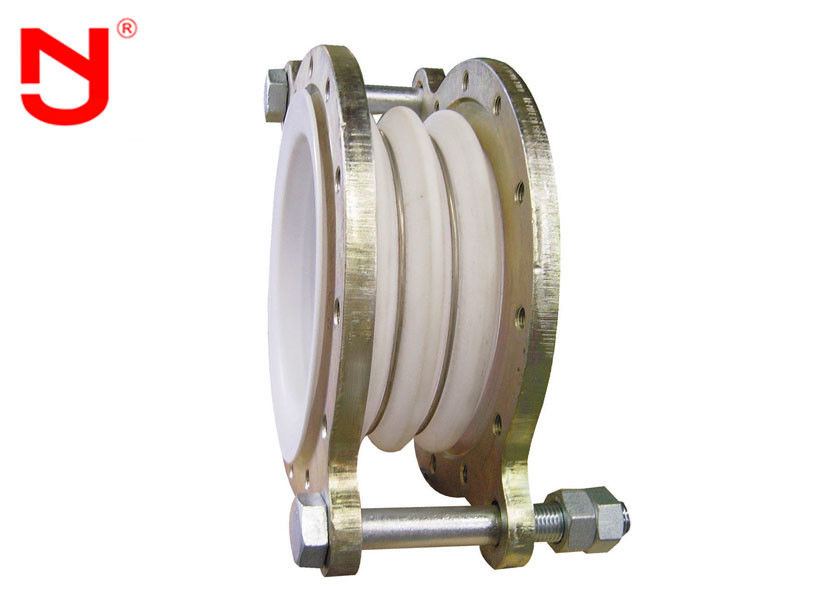

High pressure flexible ptfe coupling corrugated expansion joint

Feature

The lining material PTFE is also called , 4F, the King of Plastic. PTFE has excellent acid and alkali resistance property, and it is resistant to all kinds of organic solvent, high temperature resistance, low friction coefficient, can be used for lubrication or coating. PTFE is the best quality corrosion resistant material in the world. It can working under +250℃ to -180℃ for a long time, almost resistant to all chemical medicine.

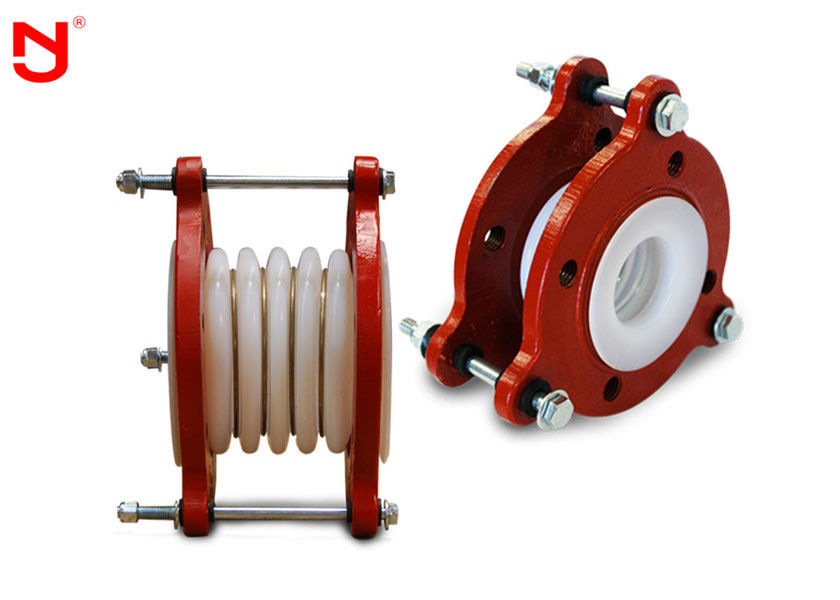

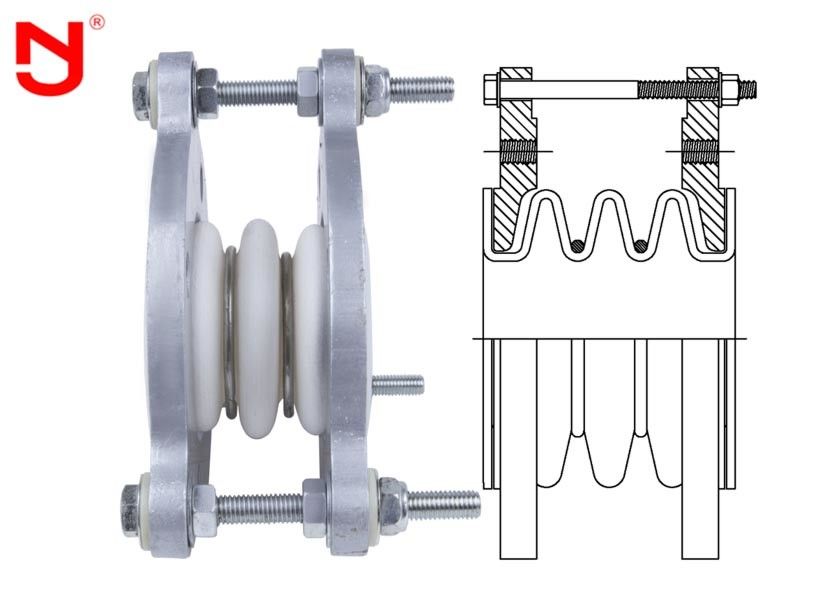

PTFE corrugated bellow expansion joint with flange
1.Flexible joint with PTFE inner
2. Have excellent dielectric and chemical corrosion-resistance;
3. Non-absorbent, non-stick, non-conductive, low coefficient and non-aging properties
4.For oil, chemicals, food, medicine, space, and other fields.


High Pressure Ductwork Expansion Joints Non Absorbent Weather Proof For Oil Industry 0
Technique Parameter

DiameterDN mm Three waves of the maximum compensate ability Allow the largest work force

Three-wave
length
L mm

Connection flange size
HG5010-58/HGJ45-92(HG20593-93/97)

Axial X mm Transverse Y mm Angular θ Internal pressure   PN0.6Mpa PN1.0Mpa
02-1 02-2 TF02-1 TF02-2 Kpa K n-M K n-M
100 26 25 33 20 0.5 0.6 28 95 170   180 8-M16
124 29 0.4 0.5 24 105 200 8-M16 210
150 32 20 26 18 115 225 240 12-M20
200 40 15 0.35 0.4 17 125 280 295
250 42 27 0.3 0.35 14 135 335 12-M16 350
300 44 13 145 395 12-M20 400
350 46 0.2 0.25 150 445 460
400 0.1 0.1 11 160 495 16-M20 515 16-M22
450 48 12 16 180 550 565 20-M22
500 0.08 200 600 20-M24 620 20-M27
600 49 0.05 0.06 10 220 705 24-M24 725
700 50 240 810 24-M27
800 10 13 260 920
900 0.03 0.035 9 280 1020
1000 52 300 1120 28-M27
1200 8 10 7 320





Product Features of industrial customized round white ptfe flexible plastic polyurethane bellows :

  1. High temperature resistance, working temperature can reach 250 ℃.
  2. Good low temperature resistance, good mechanical toughness; Even if the temperature dropped to - 196 ℃, it can also maintain the elongation of 5%.
  3. Corrosion resistance-to most chemicals and solvents, inert, acid alkali, water and a variety of organic solvents.
  4. Weather-proof, service life is the longest.
  5. High lubrication - the lowest friction coefficient in solid materials.
  6. Inadhesion - the surface tension of the solid material is is the smallest, don't adhere to any material.
  7. Non-toxic, has a physiological inertia, as artificial blood vessels and organs implanted in the body for a long time without adverse reaction.
