PN16 Pipe Dismantling Joint , Ductile Iron Dismantling Joint DN80 Longitudinal Adjustable

PN16 Pipe Dismantling Joint , Ductile Iron Dismantling Joint DN80 Longitudinal Adjustable

restrained dismantling joint

ductile iron dismantling joint

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

VSSJAF

Contact Us

Request A Quote
Product Details
Size:
DN80----DN3000
Material:
Carbon Steel.Ductile Iron
Working Pressure:
0-6Mpa
Flange Standard:
DIN,ANSI,BS
Working Temperature:
-30~200Degree
Company Type:
Factory
OEM ODM:
Support
Product Name:
Dismantling Joint
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

PN16 stainless steel dismantling joint



Dismantling joint is designed to be the final closing piece in the pipe network, to ease the assembling and disassembling for later maintenance of a pump or valve. A standard adjusting range of 50mm on length and a small lateral and angular misalignment can be accommodated. This adjustability of the dismantling joint facilitates for easy removal of pumps and valves in circumstances of inspection, maintenance or replacement.

PN16 Pipe Dismantling Joint , Ductile Iron Dismantling Joint DN80 Longitudinal Adjustable 0

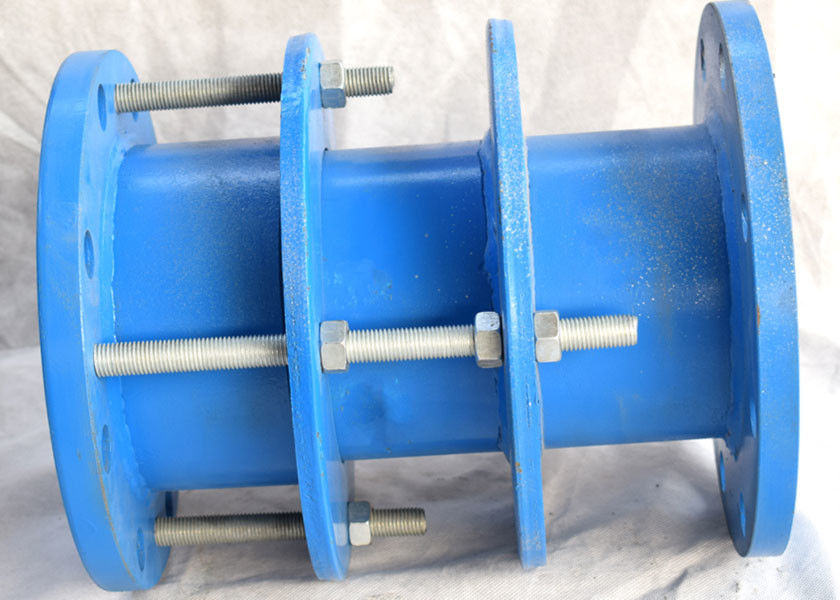

1. metal expansion joint provide adjustability to equipment installations by combining a Flanged Coupling Adapter and a Flanged Spigot into one assembly.

2.equipment connection applications include valve, pump, meter and other flanged fitting installations.

3.longitudinal adjustment is provided by the telescoping action of the Spigot inside the Flanged Pipe Coupling Adapter.

4.when final installation position is achieved, the bolting procedure for the Flanged Pipe Coupling Adapter and the Flanged Spigot can be completed.



Specification DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges.
Standard
ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295
Pressure
300PSI, 500PSI, 750PSI, 1000PSI
Pipe ends
Spigot, socket or flanges.
Internal coating
Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating
External coating
Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer's requirements.
Test
In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.
Accessories
NBR, SBR, EPDM rubber ring according to ISO4633 / EN681.1 are available.
Application
Municipal Use,Waterworks Pipelines,Piping Fittings,Water Engineering,Potable Water Use,Irrigation Use,Water Supply Project Use,Water Treatment Plants Use,Pumping Stations,Water Utility Sectors,Water-Supply Pressure Pipeline,Potable Water Pumping Station,Stormwater Lines,Fire Water Pumping Station,Fresh Water Pumping Station, ect.
Types
Dismantling Joint,Universal Flange Adaptor,Universal Coupling,Ductile Iron Loose Flange Joint,DI Pipe Fitting,Saddle for PVC Pipe,Repair Clamp,Qucick Flange Adaptor,Gibault Joint,Restrained Flange Adaptor,Restrained Coupling,Valve,etc.

PN16 Pipe Dismantling Joint , Ductile Iron Dismantling Joint DN80 Longitudinal Adjustable 1

The metal pipe couplings are functioned with pull and pres-sure resistance and excellent seal performance and easy installation. Hence it is widely used in power, metallurgy, drainage and sewage disposal to connect pump, vale and pipe, etc. It also has some multi-directional displacement during pipes operation so as to release blind plate propulsion and protect pipes, especially it makes it easy to install and maintain pipes. However, force- transferring pipe coupling shall be used on the pipe corner and pump exit, because, the coupling can transfer blind plate propulsion from pump start to pump and pipe through force- transferring bolt and prevent pull to centralize close to pipe or pipe or damage equipment by impact force. Other pipe couplings can be selected freely for other positions.

Our tenet: your trust is our honor and we will manufacture high- quality products for you.

we can design and make the products according to your drawings and techincal requirements.The quality is better and the price is lower than the similar products another company make.
