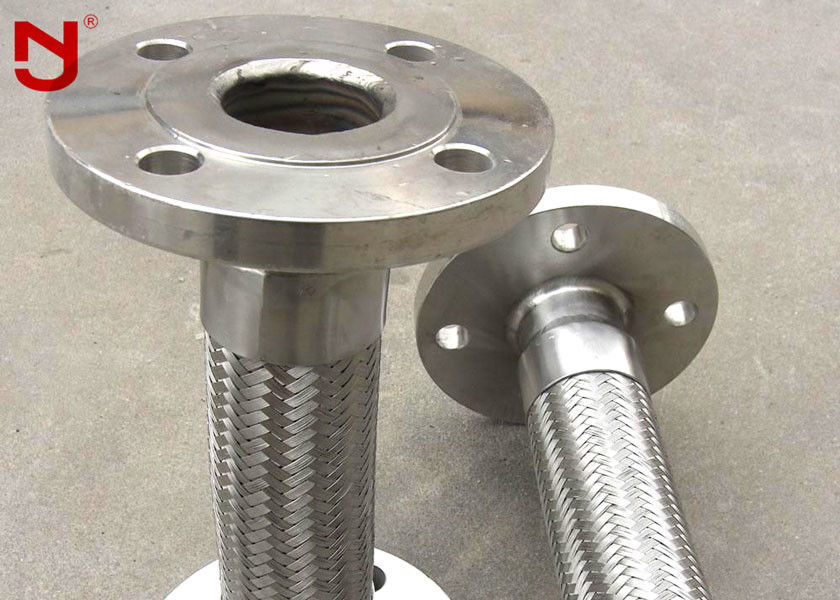

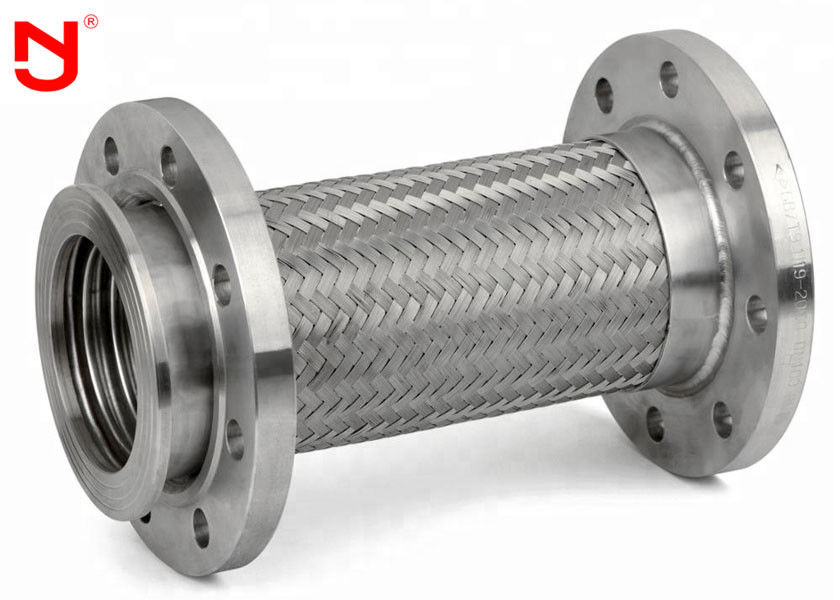

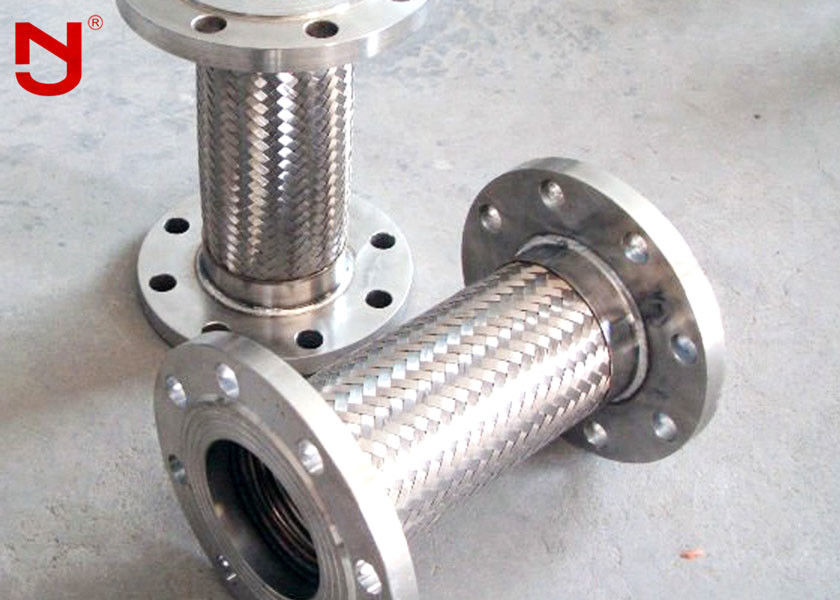

DIN Stainless Steel Flexible Hose Braided
Flexible hose braideds are an important part of a wide range of systems that require flexibility in fluid transfer. They are constructed from lengths of corrugated stainless steel bellows which are covered with flexible stainless steel braiding to add strength.
Performance of flexible hose braided
1. Corrosion resistance
2. High and low temperature resistance (- 196 ℃ to 420 ℃)
3. Light weight
4. Small volume
5. Good flexibility
Technique Parameter of flexible hose braided
| Main data of flexible hose braided | |||||||
|
Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Production process of flexible hose braided
Inner core: stainless steel bellows
The inner core strength is 304, 321 and 316L stainless steel; The stainless steel pipes form corrugations parallel to each other.
Outer core: stainless steel braided layer
Buy corrugated core hose, no layering, single braid or double braid; The outer braid is made of 304 stainless steel.
JINGNING has more than 17 years of design experience in the manufacture of rubber expansion joints, metal expansion joints, dismantling joints, pipes and other industrial pipe fittings, and meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.
Flexible hose braided advantages
1. The product price is the ex factory price
2.17 years of manufacturing experience and 5 years of export experience
3. There is strict quality inspection, and the quality far exceeds the industry standard.
4. Mold customization and OEM of various specifications
5. Provide samples free of charge
Flexible hose braided application
This product can be widely used in aviation, aerospace, petroleum, chemical industry, metallurgy, electric power, papermaking, wood, textile, construction, medicine, food, tobacco, communication and other industries.
