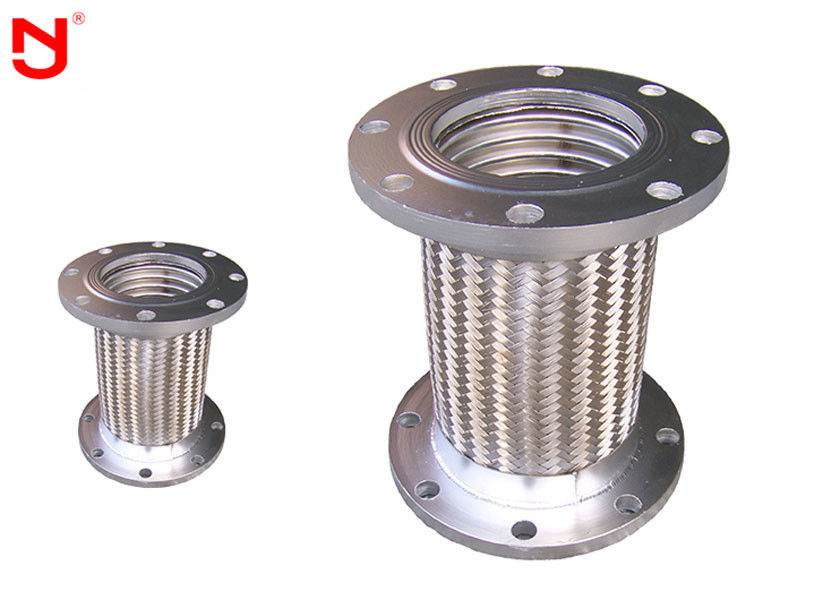

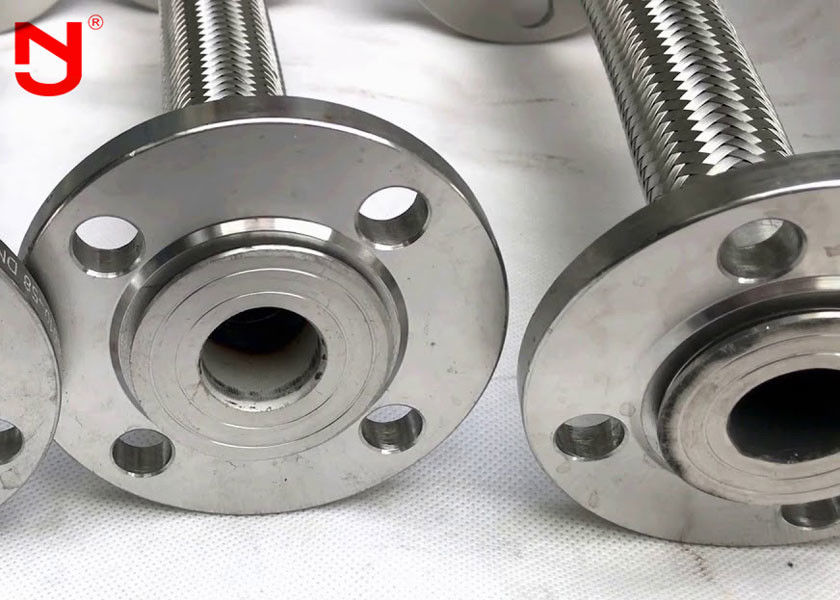

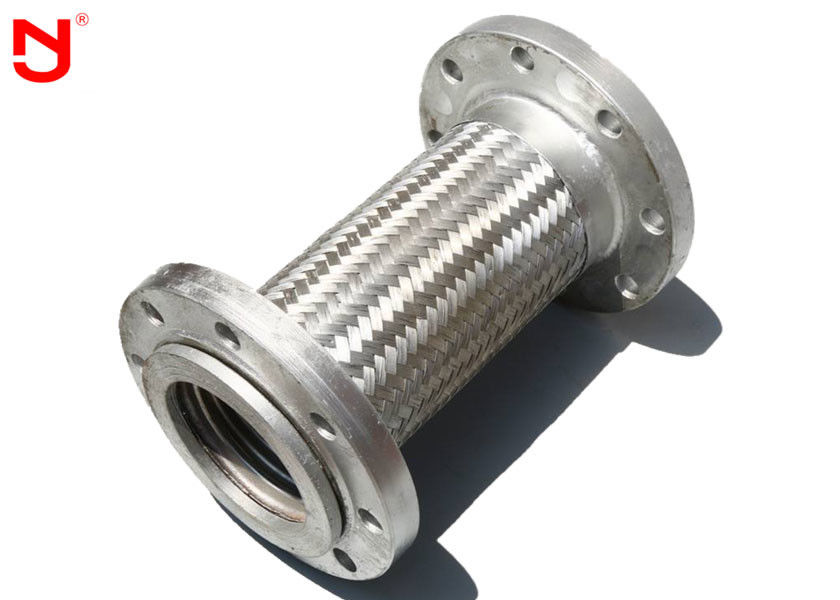

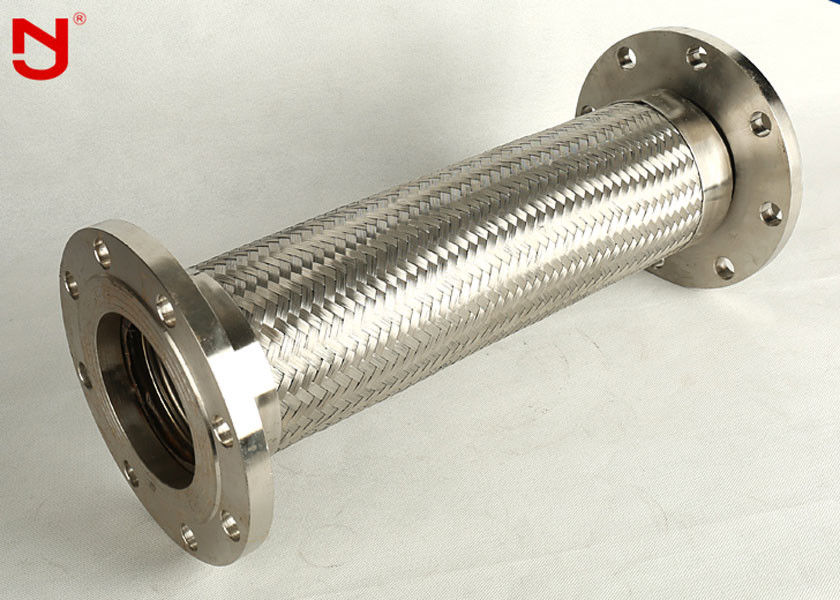

Flange Metal Braided Hose , Braided Flex Connectors Non Vibration Noise SS 304

China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
China Shanghai Songjiang Jingning Shock Absorber Co.,Ltd. certification
Timely delivery,good quality products

—— Manul

We received rubber expansion joints,then test.Good quality!

—— Mike

Good quality and good price!

—— Sofia

I'm Online Chat Now

Flange Metal Braided Hose , Braided Flex Connectors Non Vibration Noise SS 304

Flange Metal Braided Hose , Braided Flex Connectors Non Vibration Noise SS 304
Flange Metal Braided Hose , Braided Flex Connectors Non Vibration Noise SS 304
video play

Large Image :  Flange Metal Braided Hose , Braided Flex Connectors Non Vibration Noise SS 304

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20---500
Packaging Details: Wooden Box
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 Sets/Week
Detailed Product Description
Size: DN50----DN2000 Flange Material: Carbon Steel,SS304,SS316
Welding Line Type: Sprial Welded Reinforcement: High Tensile Steel Wire
OEM&ODM: 15 Years' Experience Product Name: Stainless Steel Hose
High Light:

stainless braided hose

,

flexible hose connector

China Factory Flexible Stainless Steel Braided Metal Hose With Flange



Braided flexible connectors are an important part of a wide range of systems that require flexibility in fluid transfer. They are constructed from lengths of corrugated stainless steel bellows which are covered with flexible stainless steel braiding to add strength.



Performance of braided metal hose

1. Corrosion resistance

2. High and low temperature resistance (- 196 ℃ to 420 ℃)

3. Light weight

4. Small volume

5. Good flexibility



Technique Parameter of braided metal hose



Main data of braided metal hose

Nominal

diameter DN

Inner diameter

(mm)

Outer diameter Minimum bending radius Working pressure
Bellows Braid mesh Static Dynamic Single braid mesh Double braid mesh
8 8.8 13.2 14.4 50 110 15 20
10 11.7 16.5 17.7 65 145 185 20
15 13.5 19.5 21.1 80 180 18 20
20 20.0 27 28.6 120 270 10 15
25 27.0 34.5 36.1 160 360 6.3 10
32 32.0 40 41.6 175 400 4.0 6.3
40 39.6 52 53.6 225 510 4.0 6.3
50 49.7 62 63.6 280 640 3.0 5.0
65 61.2 80.2 81.8 410 915 3.0 5.0
80 79.0 96.3 97.9 486 1030 3.0 5.0
100 101.2 119.6 121.2 610 1340 2.5 4.0
125 124.1 145.3 146.9 700 1540 2.5 4.0
150 149.4 180.8 182.4 810 1780 2.5 4.0
200 176.0 240 243.2 1000 2000 2.5 4.0
250 248.0 290 294 1250 2500 2.5 4.0
300 298.0 350 354 1500 3000 1.6 2.5
350 347.0 400 404.8 1750 3500 1.6 2.5
400 397.6 460 464.8 2000 4000 1.6 2.5



Production process of braided metal hose



Flange Metal Braided Hose , Braided Flex Connectors Non Vibration Noise SS 304 0

Inner core: stainless steel bellows

The inner core strength is 304, 321 and 316L stainless steel; The stainless steel pipes form corrugations parallel to each other.

Outer core: stainless steel braided layer

Buy corrugated core hose, no layering, single braid or double braid; The outer braid is made of 304 stainless steel.

JINGNING has more than 17 years of design experience in the manufacture of rubber expansion joints, metal expansion joints, dismantling joints, pipes and other industrial pipe fittings, and meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.



Braided metal hose advantages



1.absorbs thermal growth in the piping and provides protection to adjacent piping and equipment.

2.Provides compensation for mis-alignments and eliminates stress.

3.Absorbs mechanical equipment vibrations in the connected piping.

4.Noise associated with the vibration is eliminated.

5.Lowers overall operating costs.

6.Service life is substantially higher compared to Rubber Expansion Joints.

Flexible hose braided application



This product can be widely used in aviation, aerospace, petroleum, chemical industry, metallurgy, electric power, papermaking, wood, textile, construction, medicine, food, tobacco, communication and other industries.
