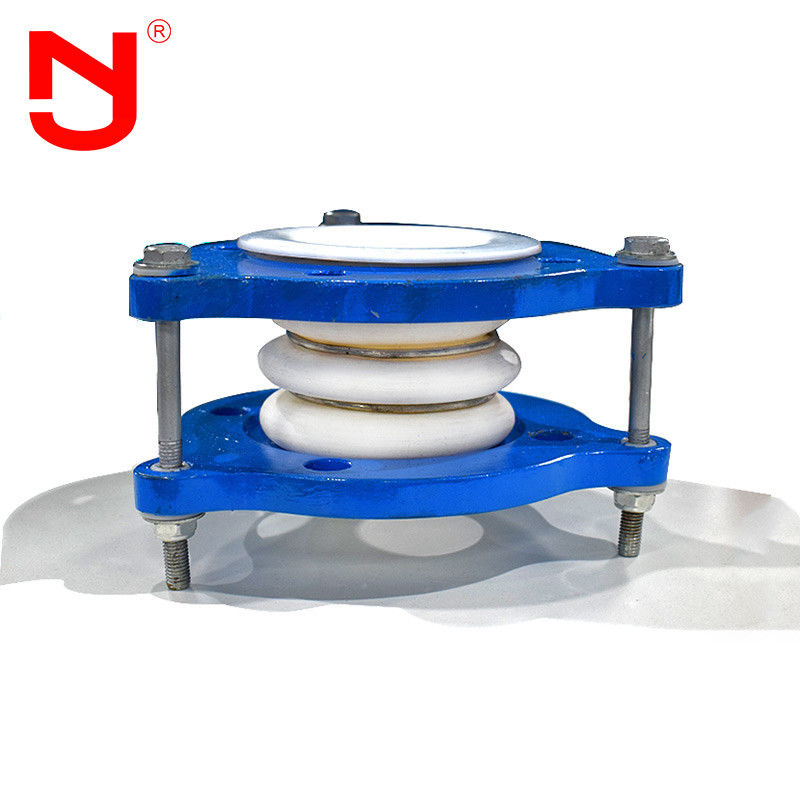

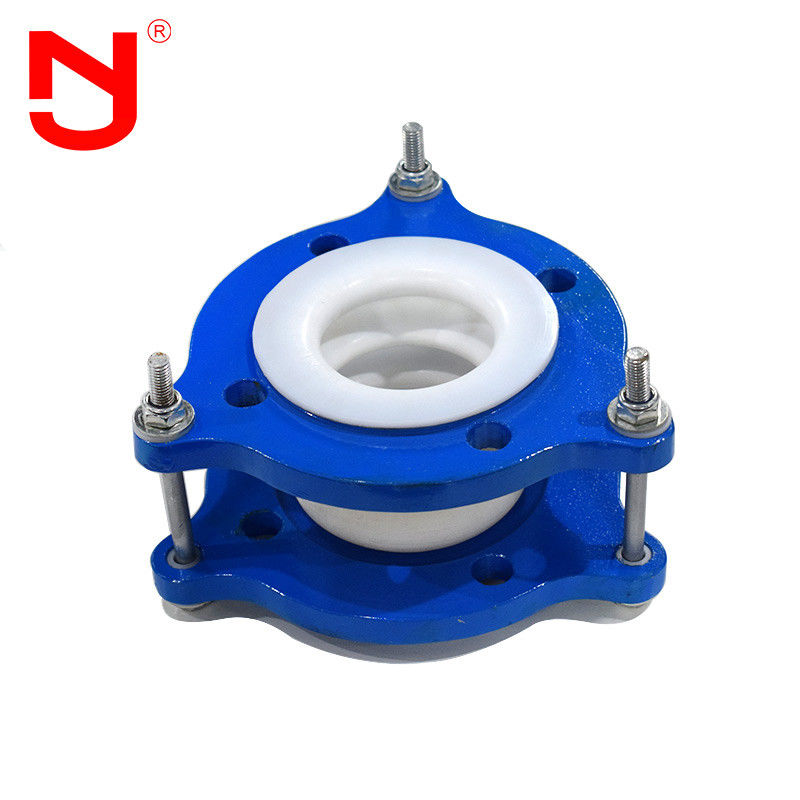

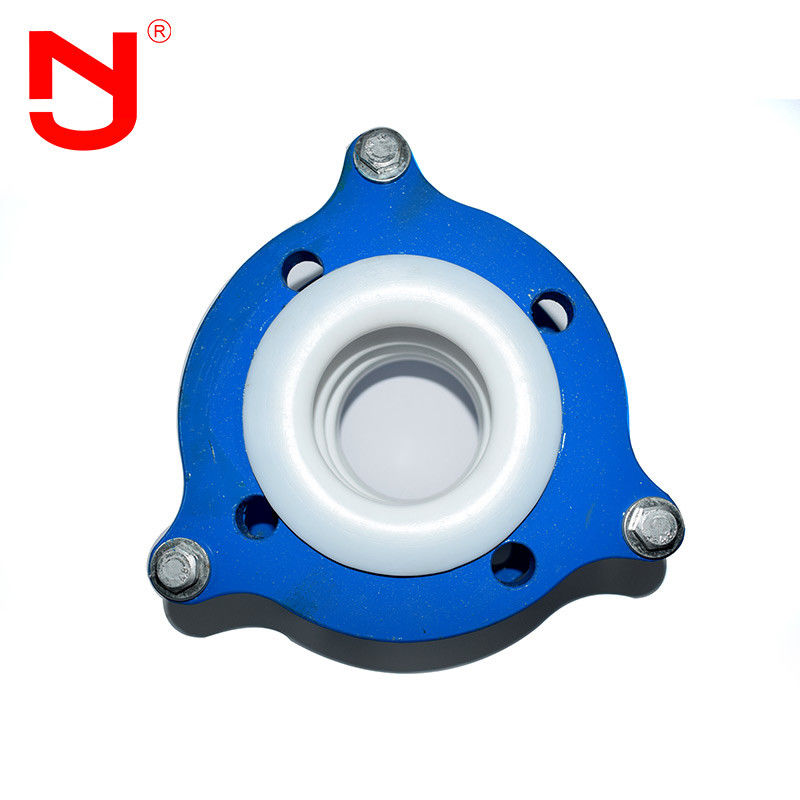

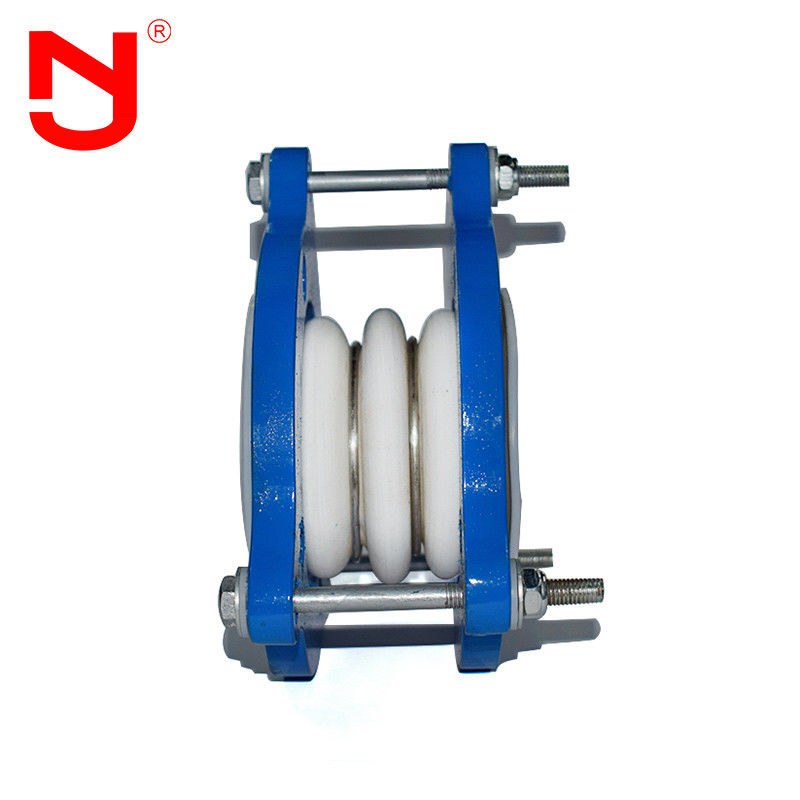

PTFE Expansion Joints with 3 TIE RODS CARBON STEEL ANSI150 DN150

Detailed Product Description
Certificate: CE Warranty: 18 Months
Material: PTFE Flange Standard: DIN,BS,ANSI
Flange Material: Carbon Steel Tie Rod: Carbon Steel,Stainless Steel
Company Type: Factory OEM: 16 Years' Experience
Pressure: PN16 Product Name: PTFE Expansion Joints With 3 TIE RODS CARBON STEEL ANSI150 DN150
Keyword: PTFE Expansion Joints
High Light:

ptfe lined bellows

,

ductwork expansion joints

PTFE Expansion Joints with 3 TIE RODS CARBON STEEL ANSI150 DN150



PTFE bellows expansion joints also known as expansion bellows.It is composed of a corrugated pipe (an elastic element), an end pipe, a bracket, a conduit and other accessories.PTFE bellows expansion joints is a compensation element, effective use of bellows telescopic body deformation, dimensional change in absorption pipeline,thermal expansion and contraction caused by the container, or compensation pipeline, conduit, vessel axial, transverse and angular displacement.



Performance characteristics


1. Excellent chemical resistance
2. High and low temperature resistance(-100°C to 260°C)
3. High pressure resistance
4. Anti-aging,long life without an aging problem
5. Wear resistance, high lubrication
6. Anti-corrosion ,non-stick, easily cleaned
7. Fire resistance
8. Electrically insulated
9. Excellent flexibility



In particular, the properties of PTFE are as follows:



Corrosion resistance: it can withstand the action of all strong acids (including aqua regia), strong oxidant, reducing agent and various organic solvents except molten alkali metal, fluorinated medium and sodium hydroxide higher than 300 ℃.


Structure


Inside: PTFE hose, the hose can be smoothbore PTFE , and also convoluted , for high and low temperature used, anti-corrosive, non-stick.
Outside: SUS304 Stainless steel braided. High pressure resistance. All kinds of couplings can be available



Technique Parameter



DiameterDN mm Three waves of the maximum compensate ability Allow the largest work force

Three-wave
length
L mm

Connection flange size
HG5010-58/HGJ45-92(HG20593-93/97)

Axial X mm Transverse Y mm Angular θ Internal pressure   PN0.6Mpa PN1.0Mpa
02-1 02-2 TF02-1 TF02-2 Kpa K n-M K n-M
100 26 25 33 20 0.5 0.6 28 95 170   180 8-M16
125 29 0.4 0.5 24 105 200 8-M16 210
150 32 20 26 18 115 225 240 12-M20
200 40 15 0.35 0.4 17 125 280 295
250 42 27 0.3 0.35 14 135 335 12-M16 350
300 44 13 145 395 12-M20 400
350 46 0.2 0.25 150 445 460
400 0.1 0.1 11 160 495 16-M20 515 16-M22
450 48 12 16 180 550 565 20-M22
500 0.08 200 600 20-M24 620 20-M27
600 49 0.05 0.06 10 220 705 24-M24 725
700 50 240 810 24-M27
800 10 13 260 920
900 0.03 0.035 9 280 1020
1000 52 300 1120 28-M27
1200 8 10 7 320

Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device.



Porduct advantage



1.Factory price

2.16 years of manufacturing experience, 5 years of export experience

3.Strict quality inspection, the quality far exceeds the industry standard.

4.Mold a variety of specifications, support customization, OEM

5.Provide free samples

6.Large inventory



Application



The ptfe lined bellows expansion joints produced by our company can withstand various concentrations of acid and alkali, and solve the problem of poor corrosion resistance of metal corrugated compensator.It also has the pressure of stainless steel bellow compensator .It is widely used in the chemical industry, petrochemical industry, rubber and other pipelines as the medium of the diversion and confluence or flow switching device.



PTFE Expansion Joints with 3 TIE RODS CARBON STEEL ANSI150 DN150 0



FAQ



Q1What`s the rubber material of PTFE bellows expansion joints?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.



Q2: Is the flange galvaized of PTFE bellows expansion joints?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.



Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.



Q4: What is the MOQ of PTFE bellows expansion joints?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
