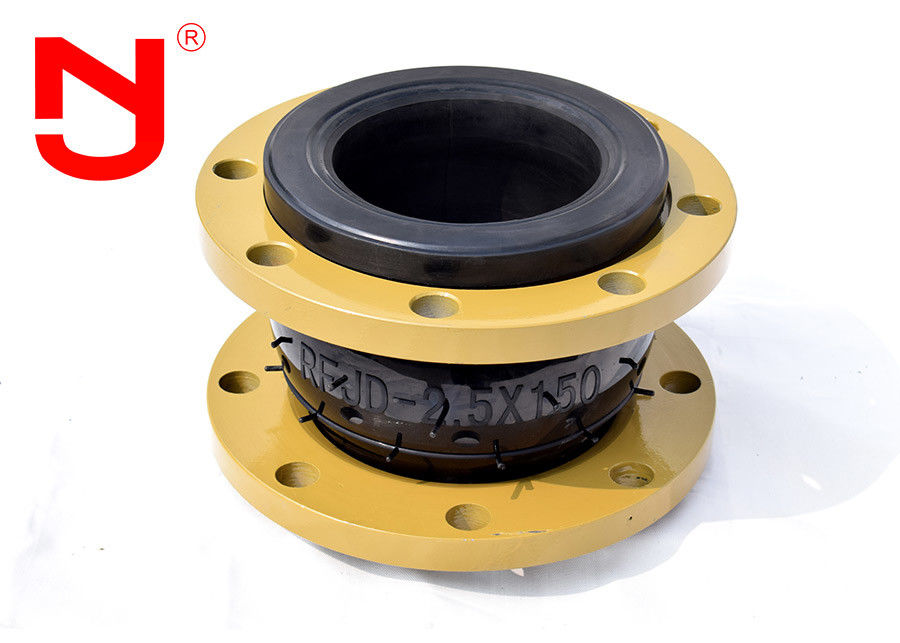

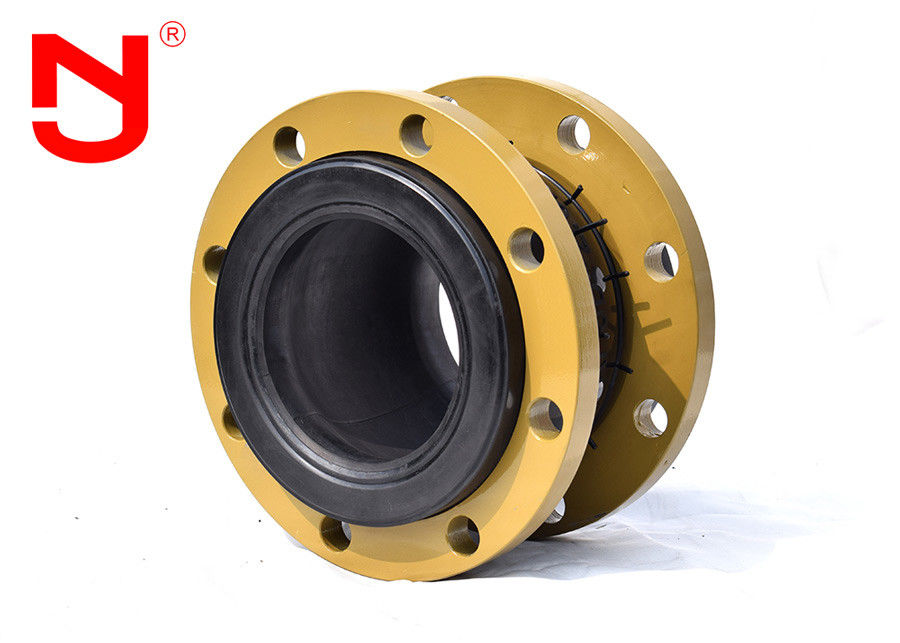

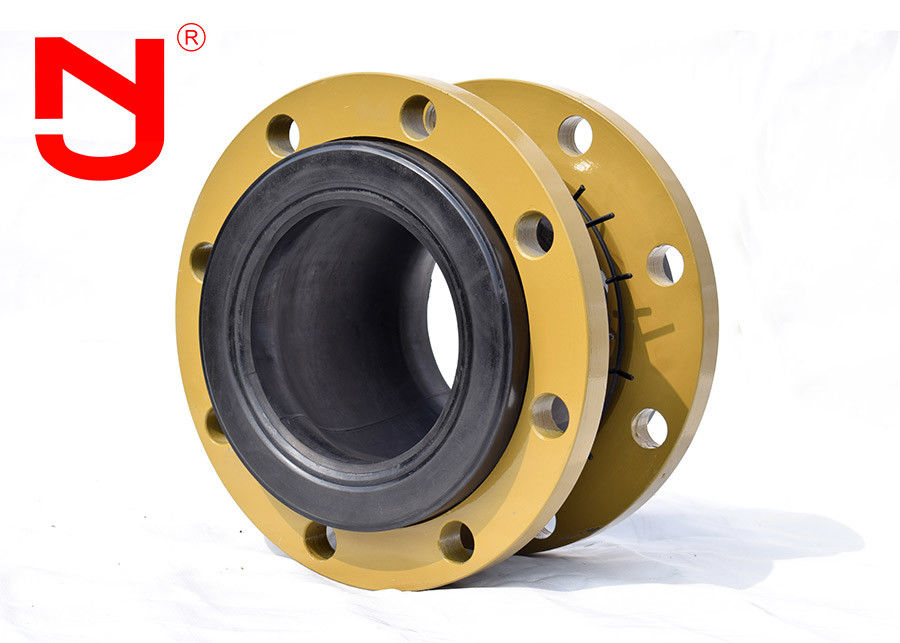

Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange

Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange
Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange

Large Image :  Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10--2000
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Size: From 1" To 120" Material: EPDM,NBR,SBR,NR
Flange Standard: Carbon Steel,Stainless Steel,Ductile Iron Working Pressure: -0.2~5.5Mpa
Working Temperature: -30~130℃ Length: 4",5",6",7"
Businese Type: Factory OEM: Yes
Antirust: Galvanized Product Name: Rubber Flexible Joints
High Light:

flanged rubber expansion joint

,

rubber bellows expansion joints

,

epdm expansion joint

Single Double Sphere Wide Arch Rubber Flexible Joints with Galvanized Flange



JINGNING Expansion Joints offer superior performance, reliability, and service life, resulting in improved plant safety and increased mechanical integrity of equipment. As specifically engineered products that are inserted in a rigid piping system, JINGNING Rubber Expansion Joints will:

  • Absorb movement
  • Improve thermal stability
  • Relieve system strain due to thermal change, load stress, pumping surges, wear of settling
  • Reduce mechanical noise
  • Compensate for misalignment
  • Eliminate electrolysis between dissimilar metals

All of our expansion joints carry safety ratings that exceed product specifications in areas such as pressure and movement. Non-metallic expansion joints and flexible couplings are ideally suited for a wide variety of industries.

Wide Arch Rubber Flexible Joints Single Double Sphere With Galvanized Flange 0




                   GENERAL CHARACTRISTICS
Nominal Diameter DN15-DN3000
Working Pressure PN6-PN25
Working Temperature -20℃-140℃
Working Medium Water,Oil,Acid,Alkali
Part of technical data
Main data of rubber expansion joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°





Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.


Contact us to know more about rubber expansion joints!
