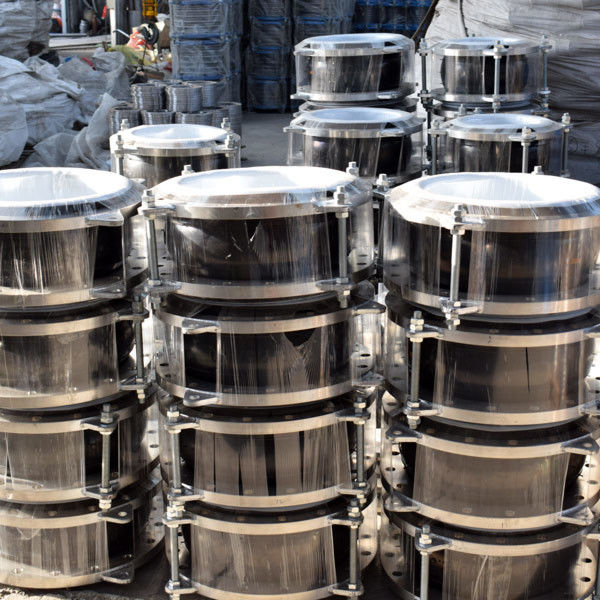

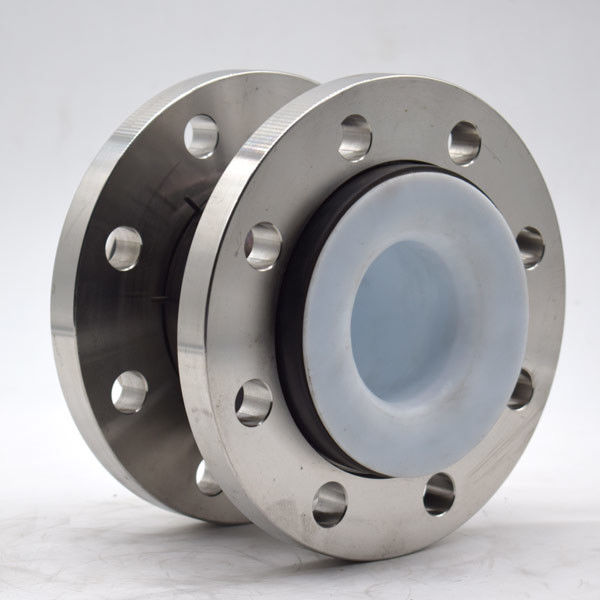

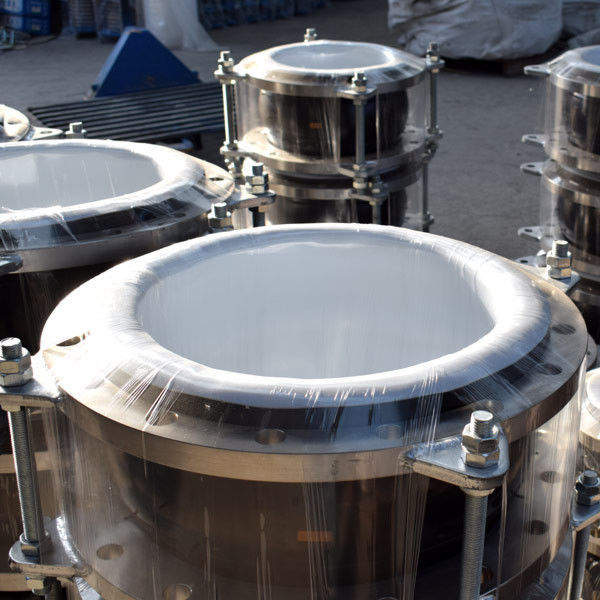

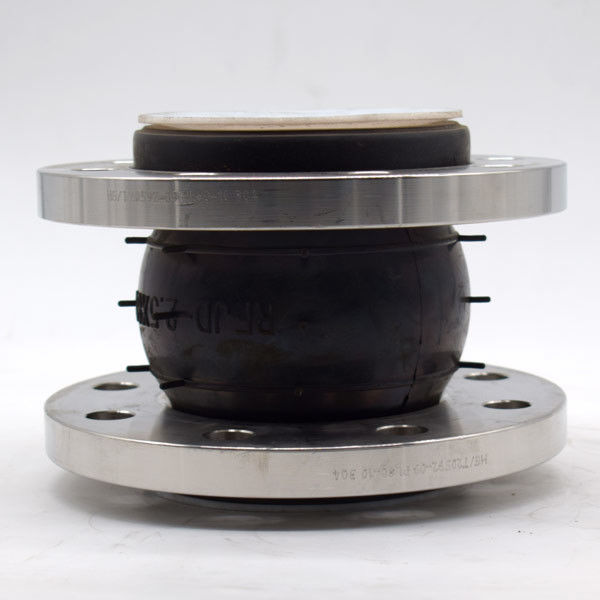

Chemical Pipeline DN600 Vulcanized Rubber Expansion Joint

Chemical Pipeline DN600 Vulcanized Rubber Expansion Joint
Chemical Pipeline DN600 Vulcanized Rubber Expansion Joint
video play

Large Image :  Chemical Pipeline DN600 Vulcanized Rubber Expansion Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Size: DN32---DN600 Connection: Flanges
Flange Standard: DIN,ANSI,JIS,GOST Working Pressure: -0.2~4.5Mpa
Working Temperature: -30~100℃ Burst Pressure: 6.0Mpa
Length: 95--300mm Technical: Vulcanized
Oem: 15 Years' Experience Flange Material: Carbon Steel ,stainless Steel, Ductile Iron
Name: PTFE Lined Expansion Joints Other Name: Rubber Expansion Joints With PTFE Linner
High Light:

Vulcanized Rubber Expansion Joint

,

DN600 Rubber Expansion Joint

,

PTFE Lined Expansion Joints

Chemical Pipeline DN600 Vulcanized Rubber Expansion Joint

Rubber expansion joints with PTFE liner usd for chemical pipelines



PTFE lined Expansion Joints are widely used in paper mills, chemical plants and other piping applications where acids and highly corrosive chemicals are being handled.

Our manufacturing capabilities include a complete range of Metal and Rubber Expansion Joints, lined in PTFE for transferring chemicals, strong acids, corrosives or other hazardous materials.

These lining covers all wetted surfaces in the bellows and flange areas and provides exceptional resistance to almost all chemicals.

JINGNING PTFE Lined Rubber Expansion Joints !


                   GENERAL CHARACTRISTICS
Nominal Diameter DN32-DN600
Working Pressure PN6-PN16
Working Temperature -20℃-100℃
Working Medium Water,Oil,Acid,Alkali





Part of technical data

Main data of rubber expansion joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°



To select the proper piping expansion joint, it is critical to understand the media compatibility with the materials selected, full temperature, pressure and vacuum ranges, movements required, and dimensions between pipe flanges. With this information, JINGNING application engineers can assist in determining the ideal expansion joint for any application.





Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.






JINGNING PTFE Lined Rubber Expansion Joints !



Chemical Pipeline DN600 Vulcanized Rubber Expansion Joint 1




FAQ



Q1What`s the rubber material for Epdm flexible flange couplings rubber joint in usa?

A1: We have EPDM.CR,NBR and so on .you can choose your needed deponding on the work enviroment and media.



Q2: Is the flange galvaized for Epdm flexible flange couplings rubber joint in usa?

A2: Yes.the colour have the white,red,blue,grey ,yellow and others deponding on your needed. the carbon steel flange not painting anticorrosive paint must be galvanized in order to avoid rusting. Usually,we choose electronic galvanized or hot dip galvanized .



Q3: Do you attend the Fair ?

A3:Yes ,you can meet us ,then we can have a talk with you well . You can meet us at your office ,because we visit you every year.



Q4: Can i get a sample?

A4: Of cause you can . For samll order .Express wll be best. And for bulk order,sea ship way is best but take much time.For urgent orders.we suggest via air to airport plus our ship partner send to your door.



Q5: What is the MOQ of Epdm flexible flange couplings rubber joint in usa?

A5: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
