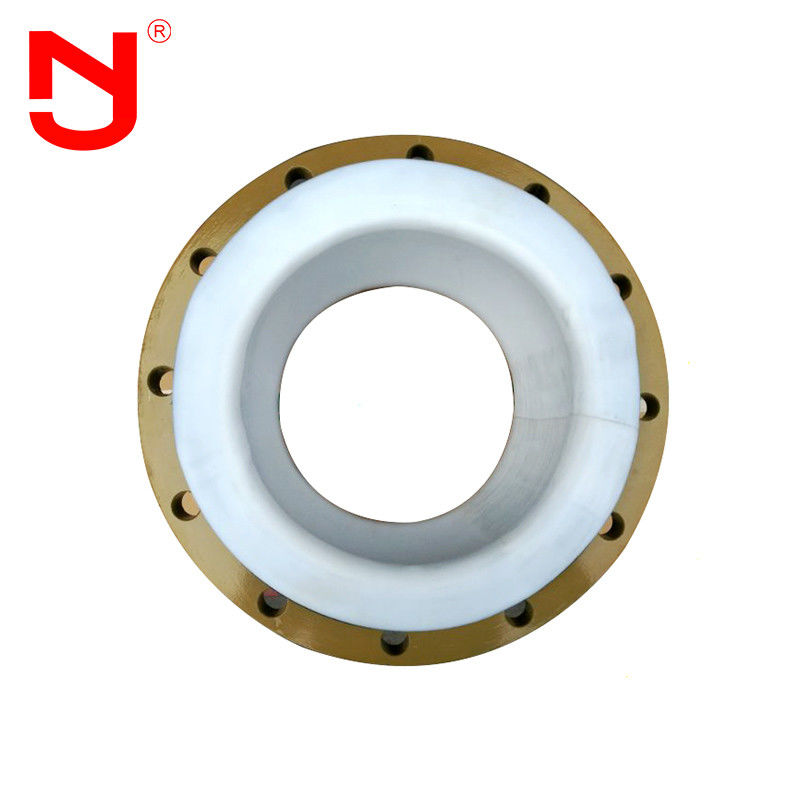

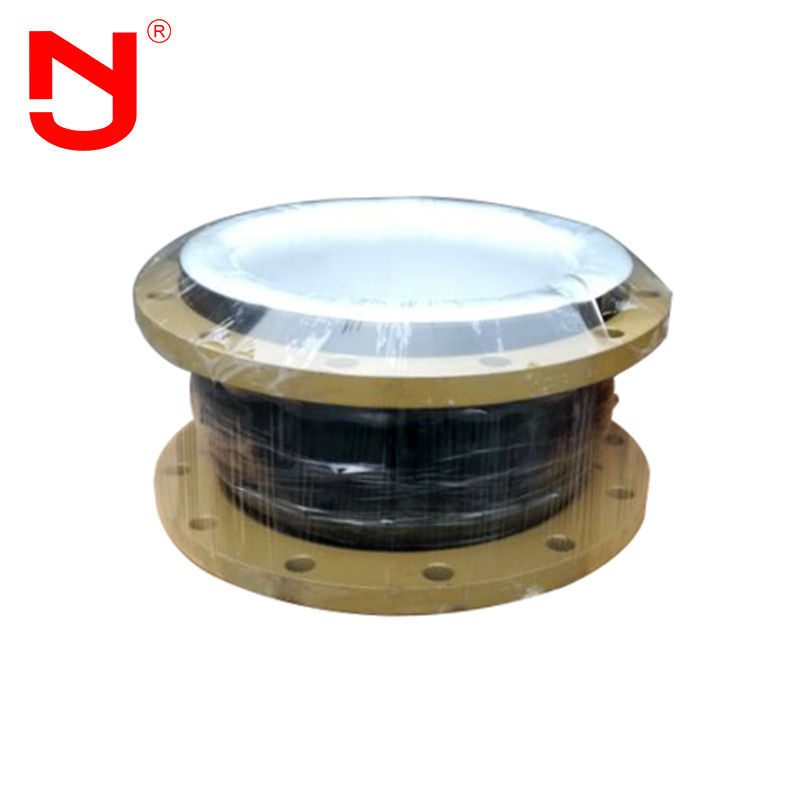

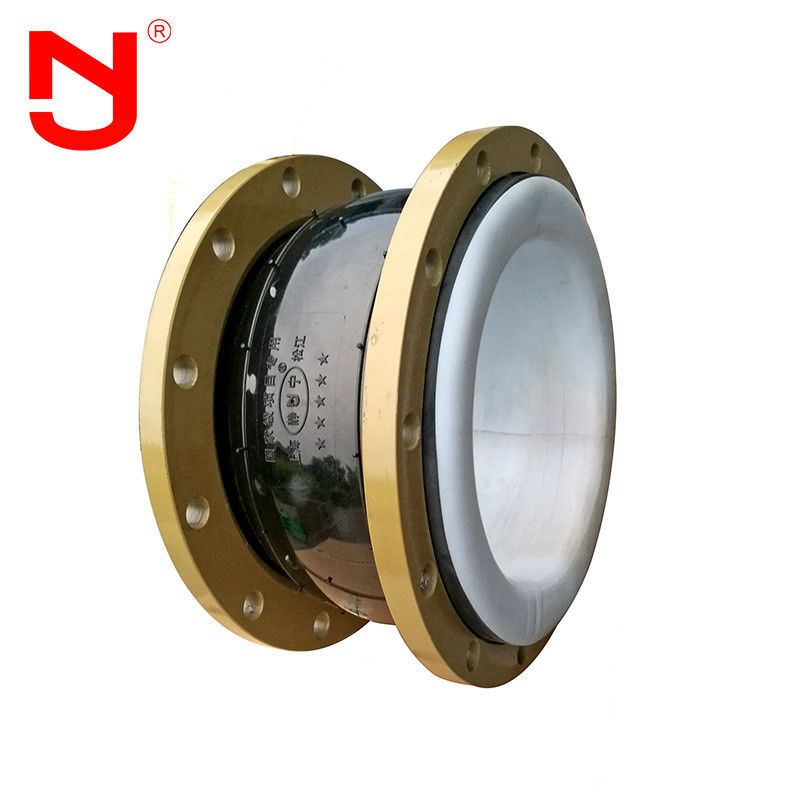

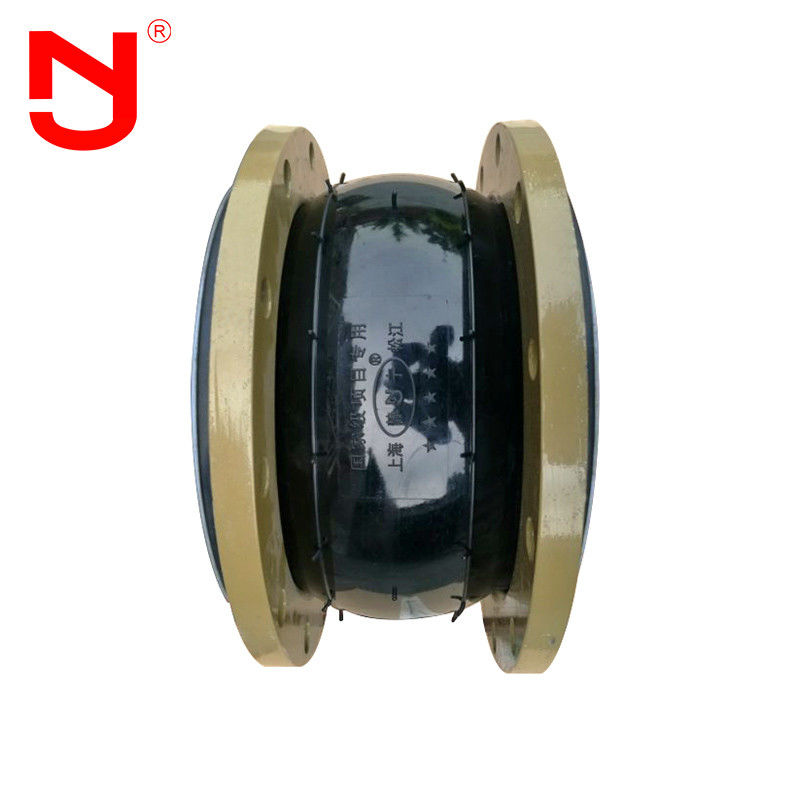

High Pressure Temperature Resistance PTFE Rubber Expansion Joint

High Pressure Temperature Resistance PTFE Rubber Expansion Joint

Temperature Resistance PTFE Expansion Joints

Galvanized PTFE Expansion Joints

OEM PTFE Expansion Joints

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE,ISO

Model Number:

RFJD

Contact Us

Request A Quote
Product Details
Product Name:
High Pressure Temperature Resistance PTFE Rubber Expansion Joint
Businese Type:
Factory
Flange Standard:
Carbon Steel,Stainless Steel,Ductile Iron
Warranty:
18 Months
Material:
EPDM,NBR,SBR,NR
Antirust:
Galvanized
Certificate:
CE ZTC
OEM:
Yes
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton or wooden
Delivery Time
5--15 working days
Payment Terms
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability
10000 sets per week
Product Description



High Pressure Temperature Resistance PTFE Rubber Expansion Joint



PTFE rubber expansion joint is based on the original conventional rubber joint, adding PTFE coating lining inside, which can effectively protect the rubber joint from corrosion and medium erosion. For example, strong acid, strong alkali or high-temperature oil, PTFE coating can effectively adhere to the inner wall of the pipeline, prevent the separation caused by medium erosion or pipeline tensile contraction, so that the original mechanical and physical properties of flexible rubber joint are not affected, and can still compensate for pipeline vibration, absorb pipeline displacement and reduce pipeline noise.



Performance characteristics



Performance characteristics of PTFE rubber expansion joint:the PTFE rubber expansion joint has excellent chemical stability and corrosion resistance. It is one of the best corrosion resistant materials today. Except for molten metal sodium and liquid fluorine, it can resist all kinds of chemicals. It can not change when boiling in aqua regia. It is widely used in all kinds of acid-base and organic solvent resistant.

Structure name of PTFE rubber expansion joint
High Pressure Temperature Resistance PTFE Rubber Expansion Joint 0

Part of technical data


Main data of PTFE Rubber Expansion Joint

Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°

          600

24
260
16
25
22
15°

Notes:1.PTEF rubber expansion joint Length can be produce according to your requirements .2.PTEF rubber expansion joint flanges can be carbon steel or stainless steel ,ductile iron,aluminum,plastic.3.Rubber expansion joint rubebr can be EPDM,NBR,CR,NR...



Details show



High Pressure Temperature Resistance PTFE Rubber Expansion Joint 1



Production Flow



Do you know how is a high quality  PTEF rubber expansion joint made?Let's see with JINGNING.



High Pressure Temperature Resistance PTFE Rubber Expansion Joint 2



It is very important to select the appropriate flexible rubber expansion joint of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal expansion joint for any application.



Porduct advantages



1.Factory price

2.17 years of manufacturing experience, 5 years of export experience

3.Strict quality inspection, the quality far exceeds the industry standard

4.Mold a variety of specifications, support customization, OEM

5.Provide free samples

6.Large inventory

7.PTFE rubber joint can adapt to special environment



Application



Applications of PTFE rubber expansion joint:Due to its good comprehensive performance, PTFE rubber joint is widely used in chemical industry, construction, water supply and drainage, petroleum, light industry, refrigeration, health, water heating, fire protection, electric power and other basic engineering. When concentric decompression rubber compensator is used in high-rise water supply, the pipeline must have fixed support or fixed support, otherwise the product should be equipped with anti pulling equipment. The stress of the fixed bracket or bracket must be greater than the axial force, otherwise the anti pulling equipment should be installed. According to different data, it can be made into a variety of acid, alkali, corrosion and oil resistant media.



FAQ



Q1What`s the rubber material of PTFE rubber expansion joint?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.



Q2: Is the flange galvaized of PTFE rubber expansion joint?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.



Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.



Q4: What is the MOQ of PTFE rubber expansion joint?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us.
