Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE，ISO
Model Number:
RFJD
Contact Us

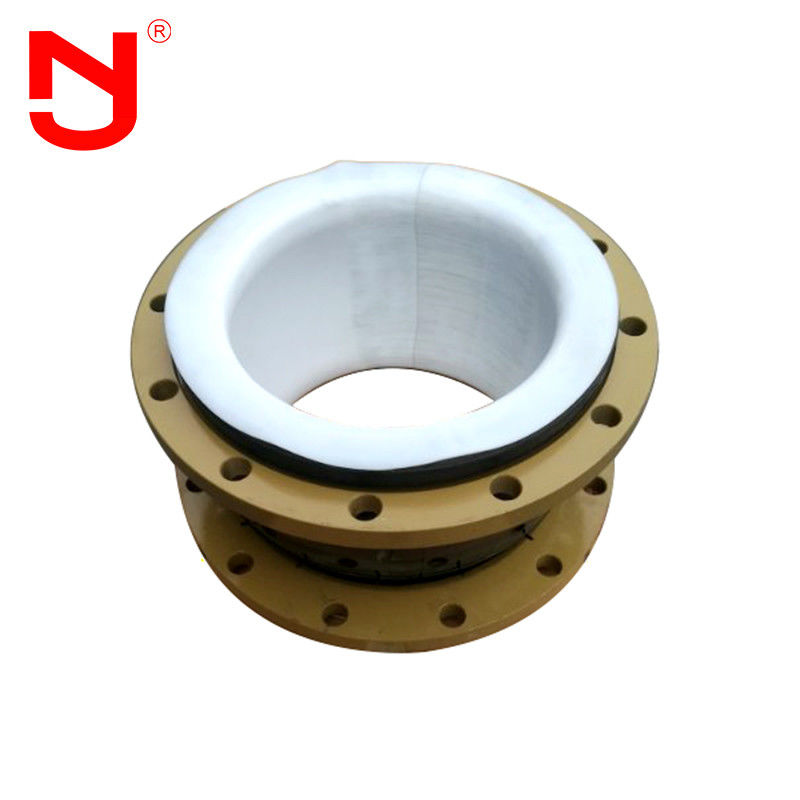

Chinese Manufacturers Direct Sales PTEF Expansion Joint Rubber Compensator
The rubber joint is composed of inner and outer rubber layer, nylon cord and steel ring. After vulcanization, it is loosely combined with metal flange or parallel joint. The PTFE expansion joint rubber compensator is based on the original conventional rubber joint, adding PTFE coating lining inside the joint, which can effectively protect the rubber joint from corrosion and medium erosion. Due to the unique characteristics of PTEF, it can protect the rubber joint from erosion in special media to the greatest extent, so that the performance of flexible rubber joint will not be affected. At the same time, it can also play the role of compensating pipeline, absorbing displacement, reducing noise and so on.
Porduct Features
1.High pressure resistance
2.High temperature resistance
3.Oil resistance
4.wear resistance
5.corrosion resistance
6.Acid and alkail resistance
|
Main data of PTEF Expansion Joint Rubber Compensator |
||||||
|
Nominal diameter(DN)
|
Length
|
Axial displacement(mm)
|
Horizontal displacement
|
Deflexion angle
|
||
|
mm
|
inch
|
mm
|
Extension
|
Compression
|
mm
|
(a1+a2)°
|
|
32
|
1 1/4
|
95
|
6
|
9
|
9
|
15°
|
|
40
|
1 1/2
|
95
|
6
|
10
|
9
|
15°
|
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
|
65
|
2 1/2
|
115
|
7
|
13
|
11
|
15°
|
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
|
600 |
24
|
260
|
16
|
25
|
22
|
15°
|
Notes:1.PTEF Expansion Joint Rubber Compensator Length can be produce according to your requirements .2.PTEF Expansion Joint Rubber Compensator flanges can be carbon steel or stainless steel ,ductile iron,aluminum,plastic.3.Rubber expansion joint rubebr can be EPDM,NBR,CR,NR...
Details show
Production Flow
Do you know how is a high quality PTFE expansion joint Rubber Compensator made?Let's see with JINGNING.
It is very important to select the appropriate flexible rubber expansion joint of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal expansion joint for any application.
Porduct advantages
1.Factory price
2.17 years of manufacturing experience, 5 years of export experience
3.Strict quality inspection, the quality far exceeds the industry standard
4.Mold a variety of specifications, support customization, OEM
5.Provide free samples
6.Large inventory
7.PTFE expansion joint Rubber Compensator can adapt to special environment
Application
Applications of PTFE expansion joint Rubber Compensator: The PTFE lined rubber expansion joint has excellent chemical stability and corrosion resistance. It is one of the best corrosion resistant materials today. Except for molten metal sodium and liquid fluorine, it can resist all kinds of chemicals. It can not change when boiling in aqua regia. It is more common in chemical pipeline, mainly used in strong acid-base, strong high temperature, strong corrosion pipeline equipment, especially in corrosive medium. including: conveying pipe, exhaust pipe, steam pipe of corrosive gas, high-pressure oil pipe of rolling mill, heat exchanger, lining of tower and tank, valve and other chemical equipment.
FAQ
Q1What`s the rubber material of PTFE expansion joint Rubber Compensator?
A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.
Q2: Is the flange galvaized of PTFE expansion joint Rubber Compensator?
A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.
Q3: Can I get a sample?
A3: Of cause. We could delivery by Express,by air or by sea.
Q4: What is the MOQ of PTFE expansion joint Rubber Compensator?
A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us.
