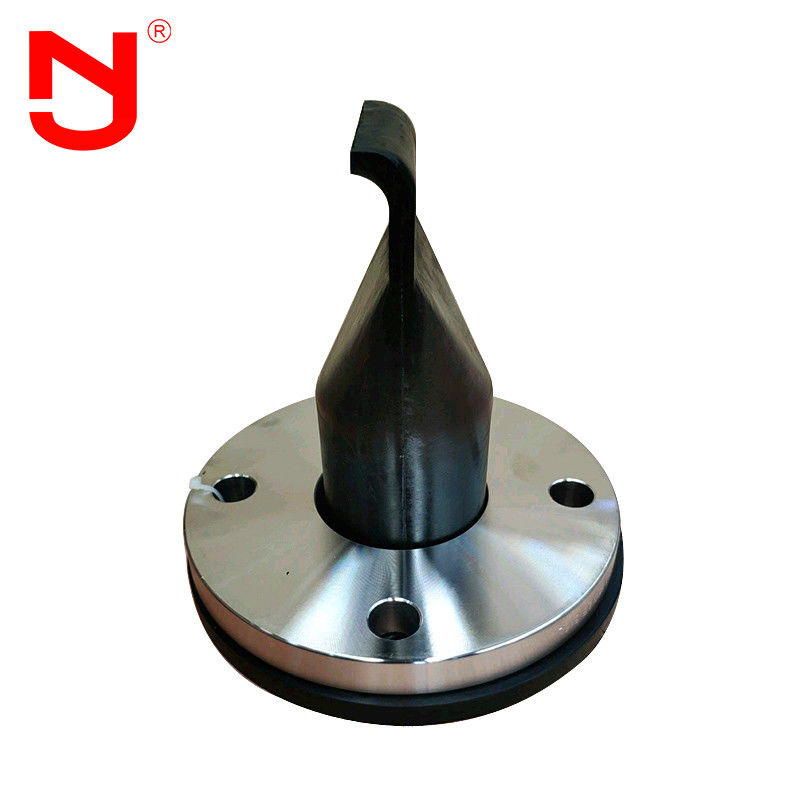

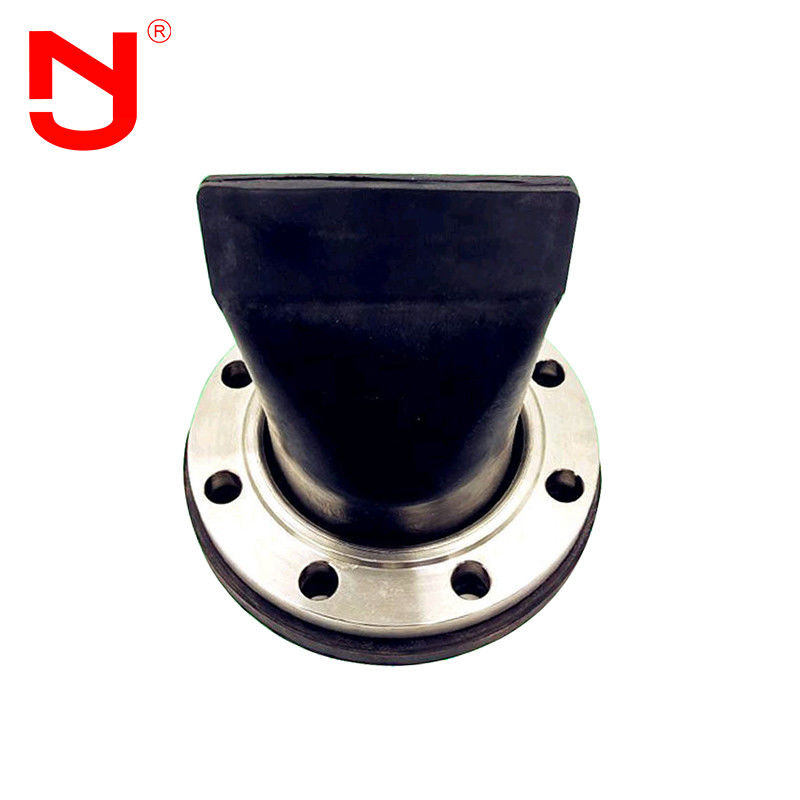

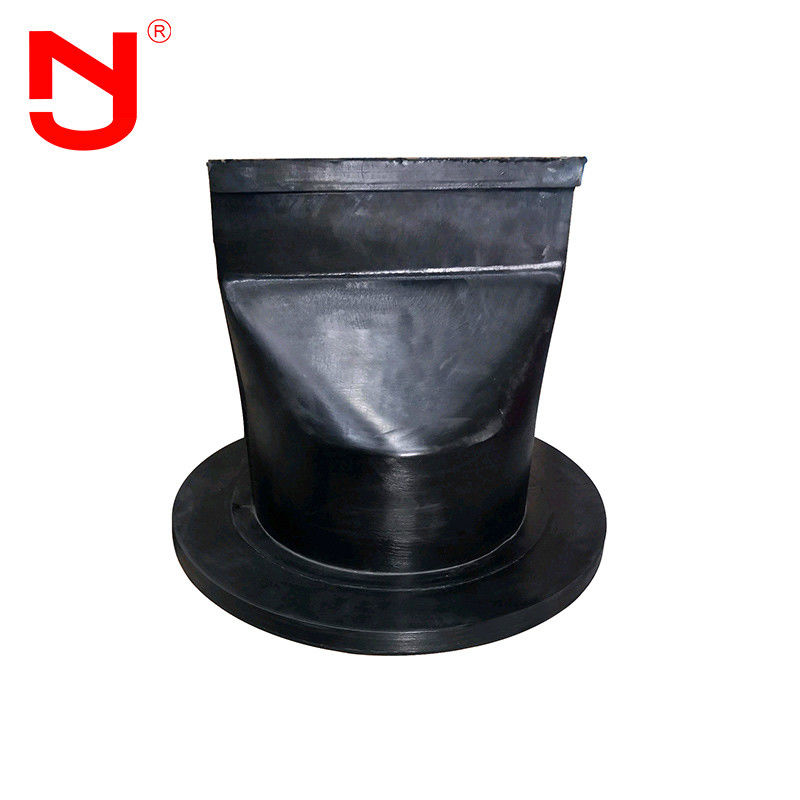

Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected

Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected
Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected

Large Image :  Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: XH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 5000 Sets/Week
Detailed Product Description
Size: DN50---DN3000 Certificate: ISO9001,CE,ZTC
Connection: Clamp Warranty Time: 18 Months
Rubber Material: EPDM,NBR,SBR OEM: Support
Product Name: Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected
High Light:

Sewage Duckbill Check Valve

,

Flange Type Duckbill Check Valve

,

Clamp Connected Duckbill Check Valve

Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected





Duckbill Check Valve is generally made of natural rubber or chloroprene rubber and artificial fiber through special processing. Because the appearance looks like duck's mouth and the front end is flat, it is called duckbill check valve.Classification of duckbill check valve:According to the connection mode, it is generally divided into flange duckbill valve and clamp duckbill valve;According to the material, it can be divided into natural rubber duckbill valve and neoprene duckbill valve.



Function of duckbill check valve



In the process of use, when the internal pressure of the pipeline increases gradually, the outlet of the duckbill valve will gradually expand and open, and the medium of the pipeline will be discharged at high speed. When there is no internal pressure, the outlet of the duckbill valve will be closed under the effect of its own material elasticity, and the external medium will not enter the pipeline through the outlet of the duckbill valve, so as to prevent the sewage from pouring So it will be called duckbill check valve.



Features & Benefits of duckbill check valve



1. Automatic switch of duckbill check valve pressure difference, safe and reliable, no noise, no need of personnel operation, no need of maintenance.

2. The forward steering resistance is small, and the starting pressure and flow are adjusted naturally according to the water pressure.

3. Duckbill check valvecheck seal, no leakage, prevent backflow, the greater the back pressure, the better the effect.

4. The rubber of duckbill check valve is resistant to corrosion, aging, deformation, strong adaptability and long service life.

5. Compared with other check valves, duckbill check valve has the same function and lower price.

6. The duckbill check valve is easy to install and maintain.

7. The duckbill check valve is light in weight, small in volume and convenient in transportation.



However, due to the limitation of material, Duckbill check valve also has some disadvantages. For example, the rubber of duckbill check valve is easy to crack when it is placed outdoors for a long time; it is not resistant to high temperature and easy to accelerate aging; outdoor sunlight and ozone will shorten the service life of the product. Therefore, according to the characteristics of duckbill check valves, we must pay attention to the use and storage methods of duckbill check valves, avoid collision and sharp tool scratch, keep away from high temperature and high temperature, and often check and maintain duckbill check valves outdoors.



Technical data of duckbill check valve



Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected 0





Main data of Duckbill check valve
Pipe Size ID Length Height Flange Outside Diameter
DN(mm) NPS L(mm) H A
50 2 150 100 150
80 3 220 140 200
100 4 250 200 225
150 6 340 265 275
200 8 420 325 338
250 10 520 425 400
300 12 620 525 485
350 14 700 625 525
400 16 800 725 588
450 18 900 825 625
500 20 980 925 688
600 24 1120 1025 800
700 28 1180 1125 969
800 32 1350 1400 1080
900 36 1500 1525 1150
1000 40 1600 1725 1325
1200 48 1840 1950 1485

Note: for duckbill check valve, if there are other standard requirements or special flange needs to be customized, please provide written drawings, standards and information, we can customize duckbill check valve for you.



Duckbill check valve advantages



1. Duckbill check valve is factory price

2.17 years of manufacturing experience, 5 years of export experience

3. Duckbill check valve has strict quality inspection, and the quality is far beyond the industry standard.

4. Various specifications of duckbill check valve mould support customization and OEM

5. Provide free samples of duckbill check valve

6. Duckbill check valve has large inventory



Duckbill check valve application



Duckbill check valve is a combination of rubber flange and valve body, which is easy to install. Duckbill check valve can be used for straight pipe, flange pipe, cement pipe, glass steel pipe, etc. Duckbill check valve has replaced flap check valve, which completely solves the problem that flap check valve is easy to be blocked by sediment and silt.



Corrosion Resistance Flange Type Sewage Duckbill Check Valve Clamp Connected 1



FAQ



Q1What`s the rubber material of duckbill check valve?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.



Q2: Is the flange galvaized of duckbill check valve?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.



Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.



Q4: What is the MOQ of duckbill check valve?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us.
