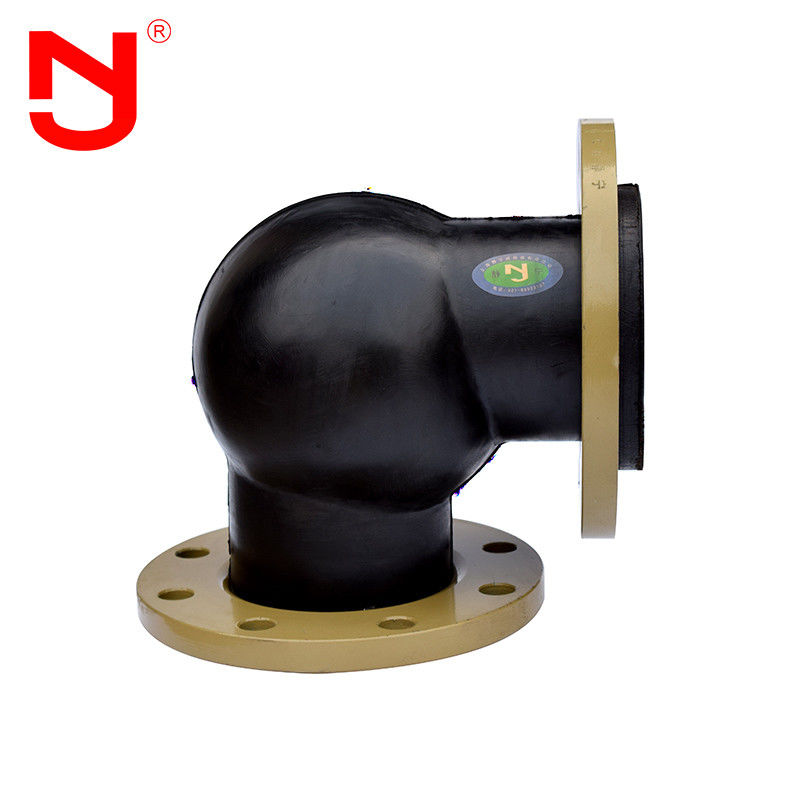

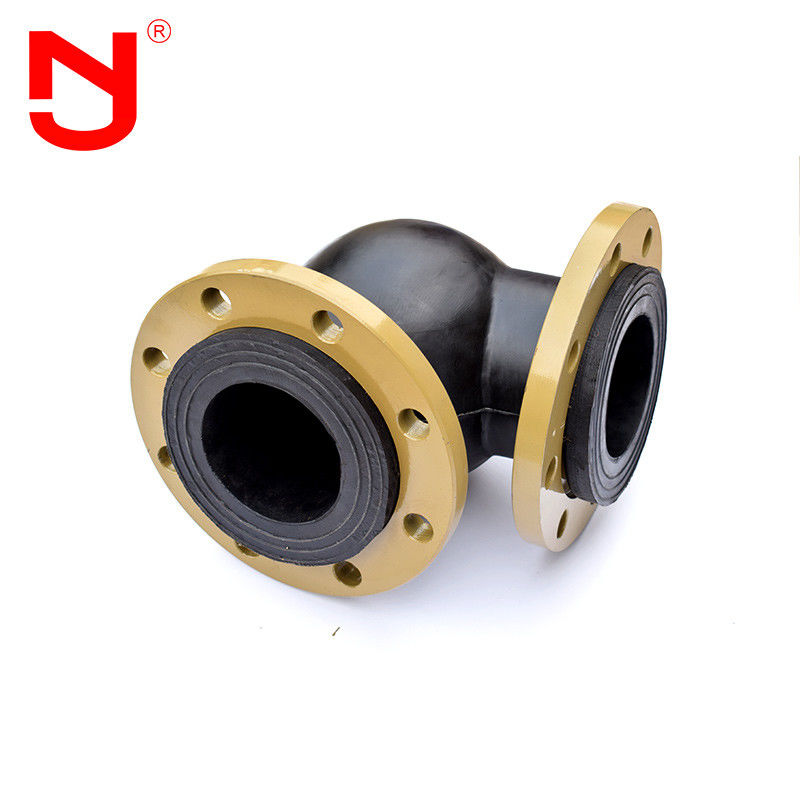

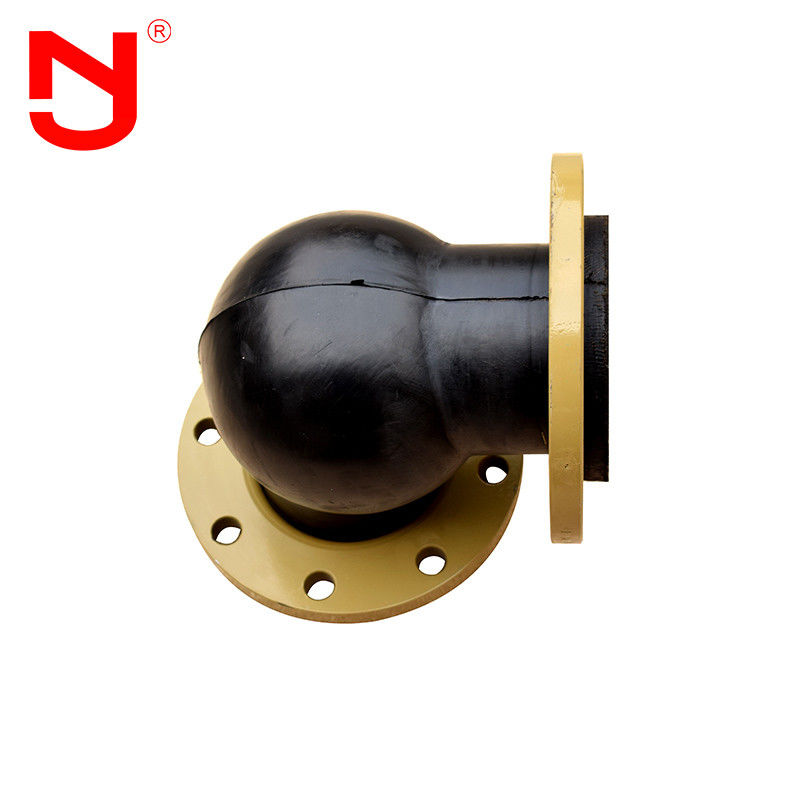

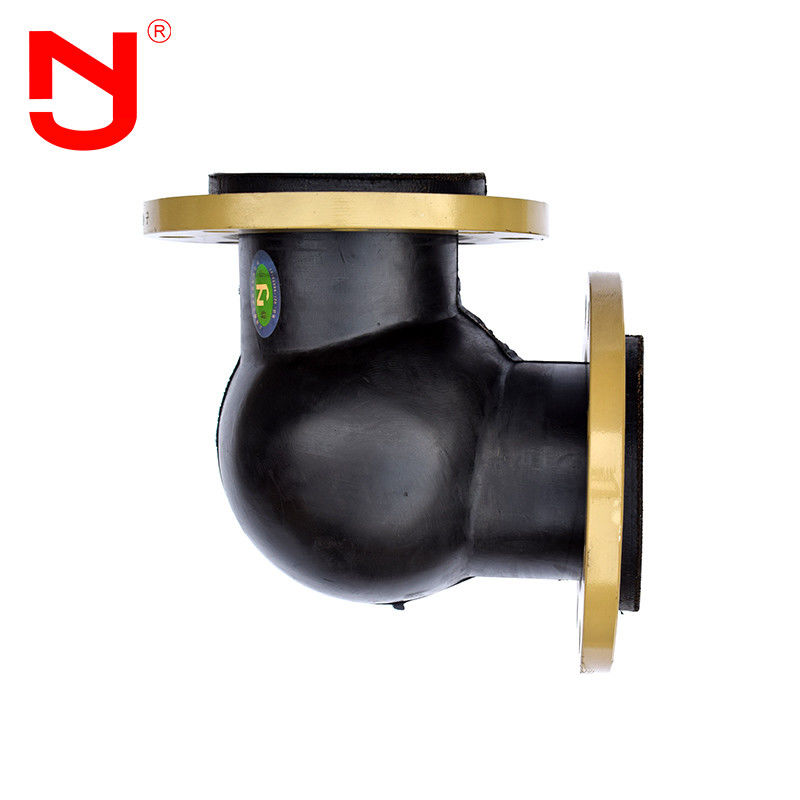

90 Degree Rubber Expansion Joint for Plumbing System
90 degree rubber expansion joint is a flexible elbow connection, it can solve the connection problem that the pipes are not on the same horizontal plane. Meanwhile, it has good shock & noise reduction effect.90 degree elbow rubber expansion joint is composed of inner & outer rubber layer, reinforcement layer, reinforced metal ring and metal flange. It has the advantages of high pressure resistance, good elasticity, large displacement, balanced pipeline deviation, etc.
90 Degree Rubber Expansion Joint Features
1. According to the connection form, it can be divided into flange connection, threaded connection and threaded pipe flange connection.
2. According to the working pressure: 0.25MPa, 0.6MPa, 1.0MPa, 1.6Mpa, 2.5MPa.
3. Small size, light weight, good elasticity, easy installation and maintenance.
4. The installation can produce transverse, axial and angular displacement, which is not affected by the non concentric pipes and non parallel flanges.
5. When working, it can reduce the transmission noise of the structure and has strong vibration absorption capacity.
| GENERAL CHARACTRISTICS | |
| Nominal Diameter | DN50-DN300 |
| Working Pressure | PN6-PN25 |
| Working Temperature | -40℃-120℃ |
| Working Medium | Water,Oil,Acid,Alkali |
Part of technical data
|
Nominal Diameter |
Neutral Length |
Flange Thickness |
|
|
DN(mm) |
NPS |
L(mm) |
b(mm) |
|
50 |
2 |
140 |
18 |
|
65 |
21/2 |
140 |
20 |
|
80 |
3 |
150 |
20 |
|
100 |
4 |
160 |
22 |
|
125 |
5 |
180 |
24 |
|
150 |
6 |
200 |
24 |
|
200 |
8 |
230 |
24 |
|
250 |
10 |
280 |
26 |
|
300 |
12 |
305 |
28 |
Notes:90 degree rubber expansion joint can be processed into different types according to different mediums.◆ Rubber Materials: NR, NBR, CR, EPDM, PTFE, etc.◆ Flange Materials: Q235 carbon steel, 304 stainless steel.We also offer the product customization, for the special size or OEM order, please contact us.
Production flow
Do you know how is a high quality 90 degree rubber expansion joint made?Let's see with JINGNING.
Porduct advantages
1. Unique design,compact structure, light weight.
2. High elasticity synthetic rubber, good sealing performance.
3. Easy installation, wide application.
4. Good shock & noise absorption effect.
5. Acid and alkali resistance, corrosion resistance.
6. High temperature resistance, wear resistance, long service life.
Application
As 90 degree rubber expansion joint has good comprehensive performance, it is widely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic projects.
FAQ
Q1What`s the rubber material for 90 degree rubber expansion joint?
A1: We have EPDM.CR,NBR and so on .you can choose your needed deponding on the work enviroment and media.
Q2: Is the flange galvaized for 90 degree rubber expansion joint?
A2: Yes.the colour have the white,red,blue,grey ,yellow and others deponding on your needed. the carbon steel flange not painting anticorrosive paint must be galvanized in order to avoid rusting. Usually,we choose electronic galvanized or hot dip galvanized .
Q3: Do you attend the Fair ?
A3:Yes ,you can meet us ,then we can have a talk with you well . You can meet us at your office ,because we visit you every year.
Q4: Can i get a sample?
A4: Of cause you can . For samll order .Express wll be best. And for bulk order,sea ship way is best but take much time.For urgent orders.we suggest via air to airport plus our ship partner send to your door.
Q5: What is the MOQ of 90 degree rubber expansion joint?
A5: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
