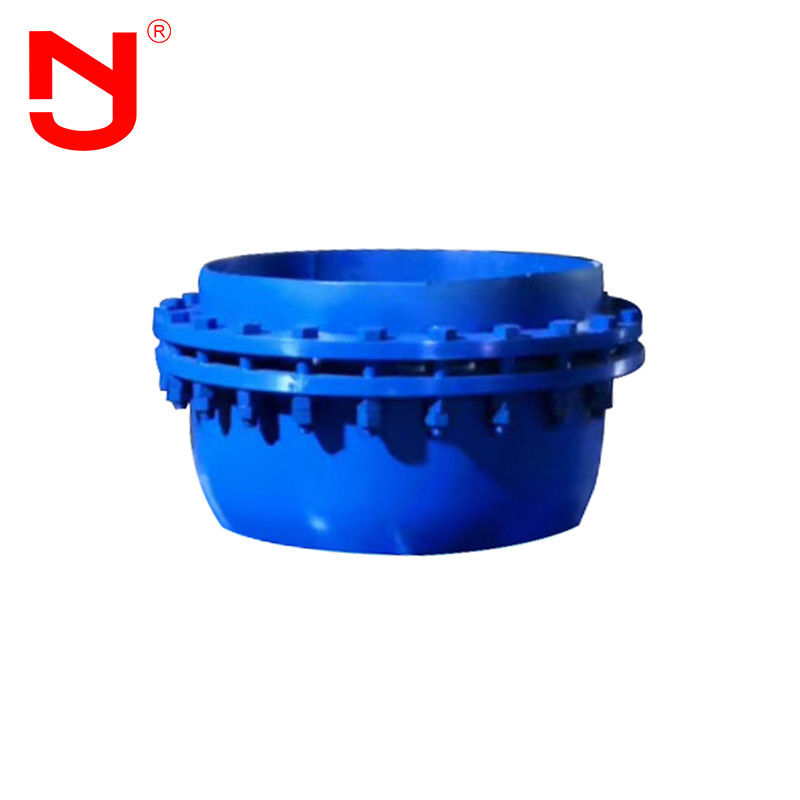

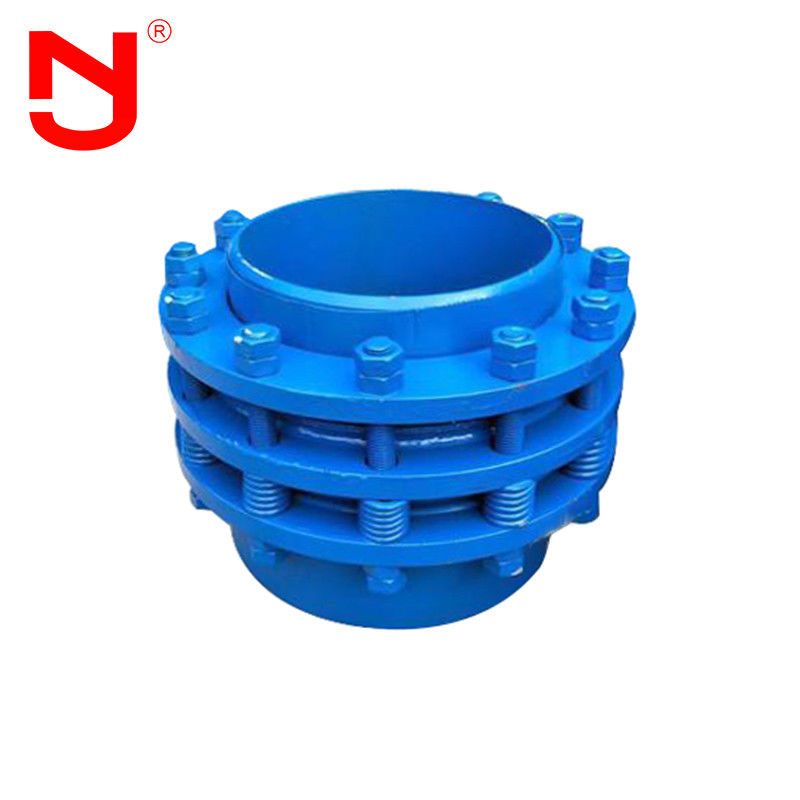

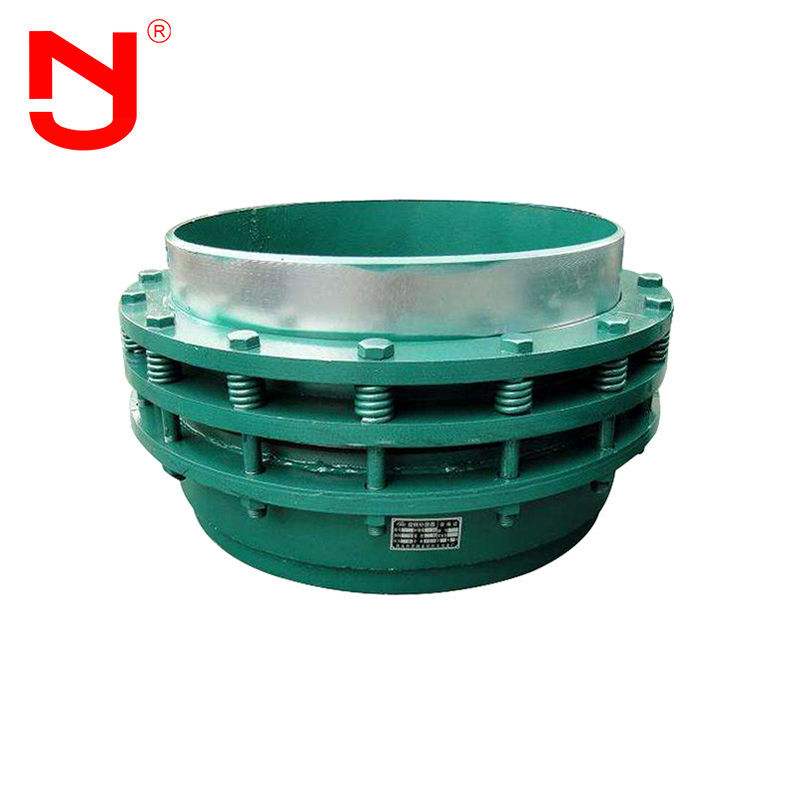

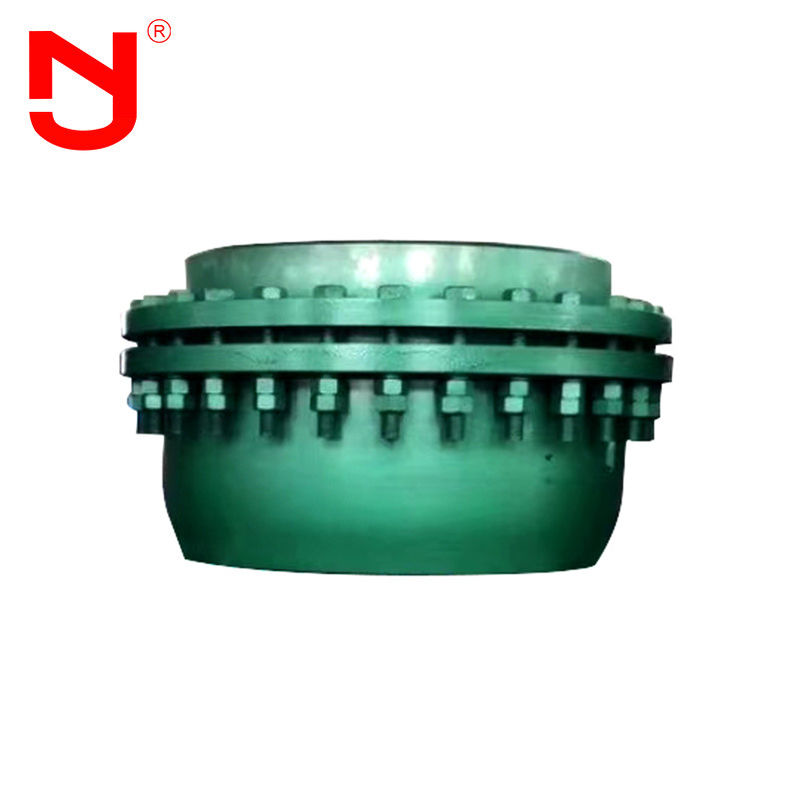

Maintenance free rotary compensator connector directly sold by manufacturer
The rotary compensator is composed of reducer, inner sleeve, outer sleeve of sealing seat, flexible graphite packing, nut bolt spring combination and packing gland, and is equipped with corresponding ball. The rotary compensator uses the sealing material to be molded with a press, and the molding density is not too dense to maintain the plasticity. Then put n rings of the packing ring (determined according to the product requirements) into the packing chamber, add some components to delay oxidation, and then use the hydraulic press to carry out secondary molding under a certain pressure (the hydraulic press surpasses the manual wrench process in strength and uniformity), so as to integrate the packing rings, so as to improve the density of the packing and improve the sealing performance of the packing, Ensure that the product will not leak within 15-20 years.
Performance of rotary compensator
Rotary compensator is mainly used for large distance compensation. In the three-dimensional pipe network and spatial network, fixed support is not required at the turning of the pipe network, but the angle of the rotary compensator is used to absorb the heat expansion and cooling contraction in the pipe network, which is simple, convenient and low cost.
The rotary compensator is composed of a rotary inner cylinder, a packing gland, a fastening flange, a spring flange, a spring, a guide centering ring, a shaped flexible graphite sealing packing, a sealing pressure ring, a sealing seat shell, an end connecting pipe, a bolt and a nut. The rotary compensator features no thrust, maintenance free, large compensation and no leakage.
Rotary compensator structure
Technical data of rotary compensator
| Main data of rotary compensator | ||||||||
|
Nominal diameter(mm) |
Outer diameter of core tubeD1(mm) |
Outer diameter of outer sleeveD2(MM) |
Flange outer diameterD3(MM) |
Installation lengt Lax(mm) |
Torque(KN-m) | |||
| 1.0Mpa | 1.6Mpa | 2.5Mpa | 4Mpa | |||||
| 100 | 106 | 133 | 215 | 320 | 0.62 | 0.96 | 1.60 |
2.26 |
| 125 | 131 | 159 | 245 | 320 | 1.15 | 2.00 | 3.13 | 4.68 |
| 150 | 157 | 194 | 285 | 330 | 1.81 | 2.86 | 4.35 | 4.68 |
| 200 | 217 | 273 | 335 | 355 | 2.52 | 4.10 | 5.93 | 9.49 |
| 250 | 270 | 325 | 405 | 360 | 5.00 | 7.6 | 11.61 | 18.65 |
| 300 | 322 | 377 | 470 | 380 | 7.61 | 12.10 | 17.48 | 27.56 |
| 350 | 373 | 426 | 525 | 400 | 9.79 | 15.85 | 22.50 | 36.32 |
| 400 | 426 | 480 | 575 | 400 | 12.89 | 20.15 | 29.84 | 47.60 |
| 450 | 478 | 530 | 630 | 400 | 18.20 | 29.15 | 42.21 | 67.52 |
| 500 | 528 | 580 | 680 | 415 | 24.97 | 38.96 | 57.12 | 91.58 |
| 600 | 630 | 670 | 770 | 440 | 31.20 | 50.00 | 70.23 | 113.60 |
| 700 | 720 | 760 | 870 | 470 | 38.12 | 54.80 | 86.70 | 138.50 |
| 800 | 820 | 860 | 1000 | 490 | 45.90 | 72.45 | 105.20 | 168.30 |
| 900 | 920 | 960 | 1120 | 530 | 53.60 | 210.00 | 124.50 | 197.00 |
| 1000 | 1020 | 1060 | 1210 | 600 | 62.50 | 100 | 145.00 | 230.00 |
Rotary compensator advantage
1. Factory price of rotary compensator.
2. 16 years of manufacturing experience, 5 years of export experience.
3. Strict quality inspection, the quality far exceeds the industry standard.
4. Rotary compensator mold has a variety of specifications, support customization, OEM.
5. Provide free samples of rotary compensator.
6. Rotary compensators are in large stock.
Rotary compensator application
The company adopts the most advanced and reliable sealing technology and double combined sealing structure. The rotary compensator has all the characteristics of reasonable design, unique structure, no thrust, good sealing and large compensation. Rotary compensator is widely used in reservoir water intake, water supply, petrochemical, electric power, metallurgy, textile, construction and other fields.
FAQ
Q1:Can the rotary compensator marked with customized logo?
A1:Yes,the rotary compensator can be marked with your logo. We could provide OEM&ODM service for rotary compensator.
Q2:What’s the face to face length of rotary compensator?
A2:The face to face length of rotary compensator can be L130, L152,L203... We also could accept customized length according to your requirements.
Q3:Can you provide drawings of rotary compensator?
A3:Yes,we could provide drawings of rotary compensator for you.Please contact us to get the drawing of rotary compensator.
Q4:What certificates of rotary compensator can you provide?
A4:We could provide CE,ISO certificate for our rotary compensator.
Q5:Can we get a sample of rotary compensator?
A5:Yes,we could provide samples for you to test the quality of our rotary compensator.
Q6:What’s the warranty period of rotary compensator?
A6:We provide 18 months’ warranty for our rotary compensator.
