PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant

PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant
PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant

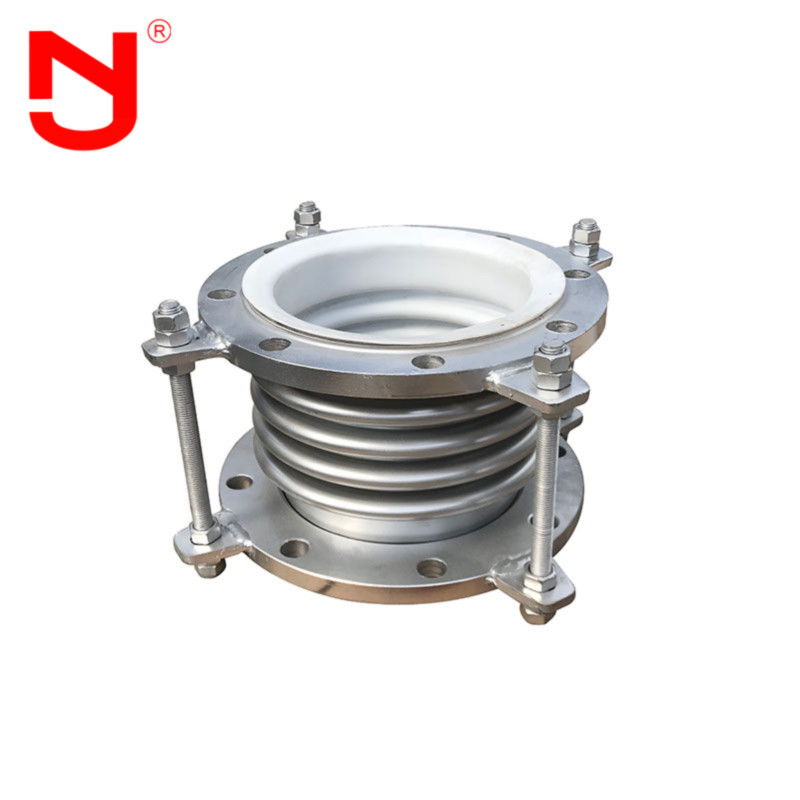

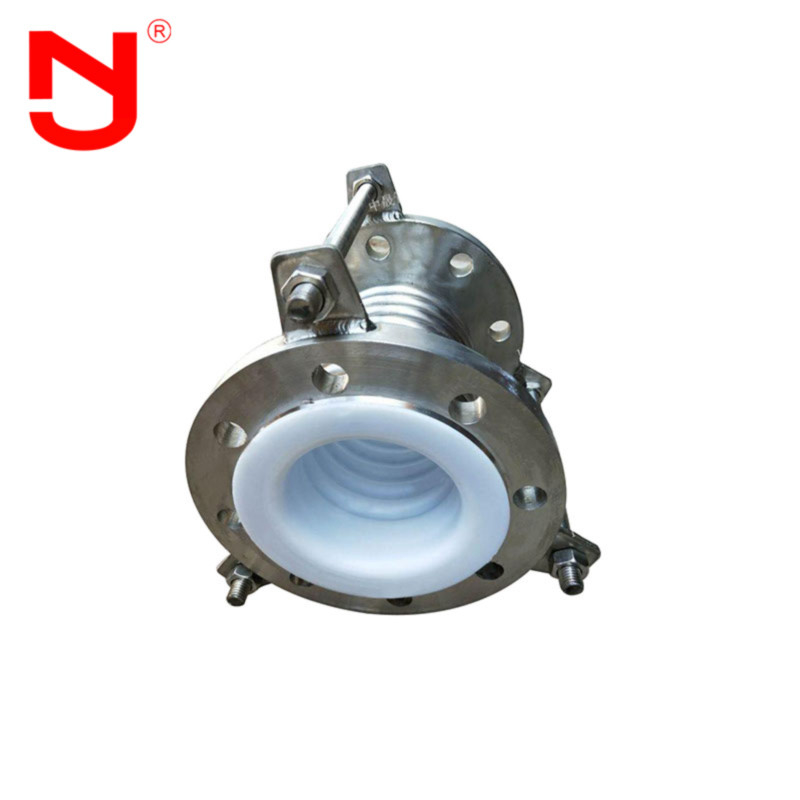

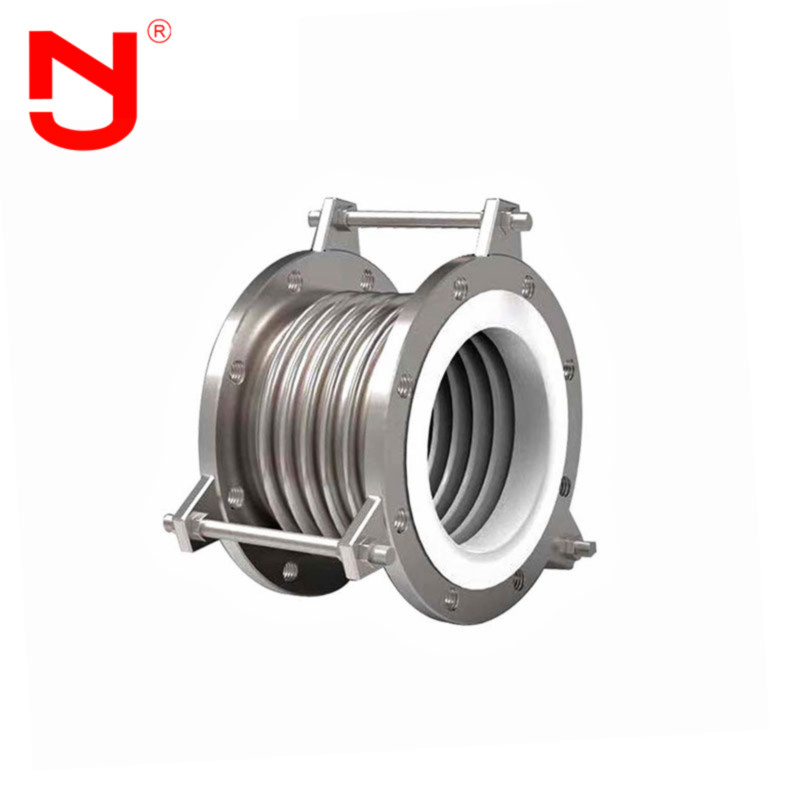

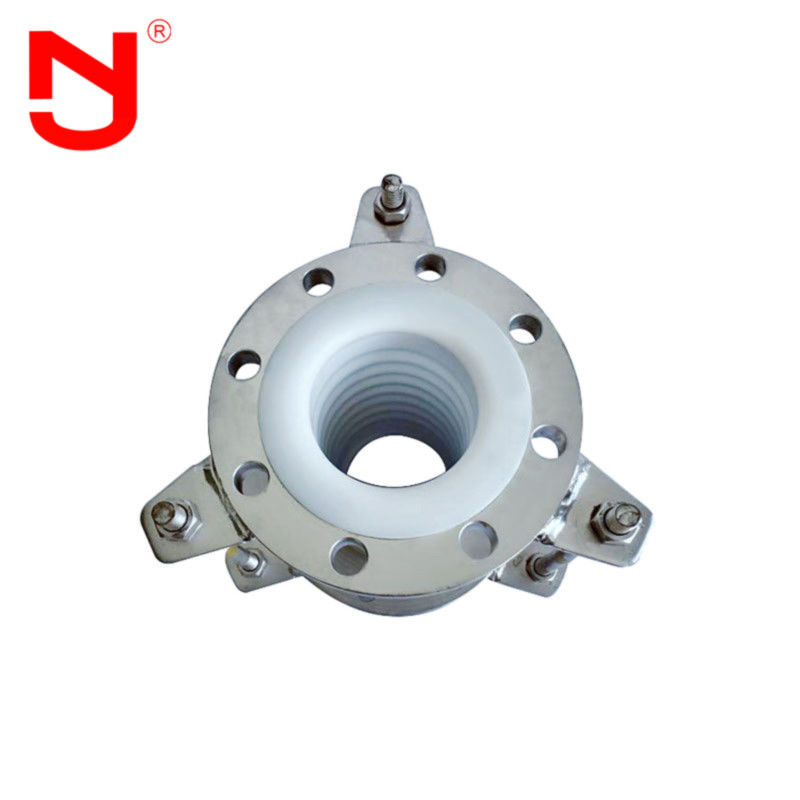

Large Image :  PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JNTF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Size: DN32---DN1800 Material: PTFE
Working Pressure: PN6,PN10,PN16 Flange Standard: DIN,BS,ANSI,JIS,AS
Flange Material: Carbon Steel,Stainless Steel Tie Rod: Carbon Steel,Stainless Steel
Working Temperature: - 50 ~ 150 ℃
High Light:

PN16 Bellows Compensator

,

DN32 Bellows Compensator

,

DN32 bellow expansion joint

High quality high temperature resistant PTFE lined bellows compensator

PTFE lined bellows compensator is also known as bellows expansion joint. The polytetrafluoroethylene lined bellows compensator belongs to a compensation element. PTFE lined bellows compensator consists of bellows and accessories. The effective expansion deformation of the main bellows is used to absorb the change of main body size caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacement of pipes, ducts and containers. In the heating process, in order to prevent the heating pipe from deformation or damage due to thermal elongation or temperature stress, a PTFE lined bellows compensator needs to be set on the pipe to compensate for the thermal elongation of the pipe, so as to reduce the small pipe wall stress and the force acting on the valve or support structure.



PTFE lined bellows compensator features

PTFE lined bellows compensator is a common pipe fitting in industry. PTFE lined bellows compensator is mainly used to solve the problems of pipeline vibration, displacement, discharge, thermal expansion and cold contraction compensation.

1. High temperature resistance of PTFE lined bellows compensator, with working temperature up to 250 ℃.

2. PTFE lined bellows compensator has low temperature resistance and good mechanical toughness.

3. PTFE lined bellows compensator is inert and resistant to strong acid, alkali, water and various organic solvents.

4. PTFE lined bellows compensator has good aging life in plastic.

5. The high lubricity of PTFE lined bellows compensator is the low friction coefficient lubrication in solid materials.

6. The PTFE lined bellows compensator has low surface tension and does not adhere to any substance.



Stucture name of PTFE lined bellows compensator

PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant 0

Technical data of PTFE lined bellows compensator



Main data of PTFE lined bellows compensator

Diameter

DN mm

Three waves of the maximum compensate ability Allow the largest work force

Threewave

length L (mm)

Connection flange size

Axial

X(mm)

Transverse Y (mm)

Angular

θ

Internal pressure   PN 0.6 Mpa PN 1.0 Mpa
02-1 02-2 TF021 TF022 Kpa K n-M K n-M
100 26 25 33 20 0.5 0.6 28 95 170   180 8-M16
124 29 0.4 0.5 24 105 200 8-M16 210
150 32 20 26 18 115 225 240 12-M20
200 40 15 0.35 0.4 17 125 280 295
250 42 27 0.3 0.35 14 135 335 12-M16 350
300 44 13 145 395 12-M20 400
350 46 0.2 0.25 150 445 460
400 0.1 0.1 11 160 495 16-M20 515 16-M22
450 48 12 16 180 550 565 20-M22
500 0.08 200 600 20-M24 620 20-M27
600 49 0.05 0.06 10 220 705 24-M24 725
700 50 240 810 24-M27
800 10 13 260 920
900 0.03 0.035 9 280 1020
1000 52 300 1120 28-M27
1200 8 10 7 320

Notes:① The nominal pressure of PTFE lined bellows compensator is MPa: - 0.01, - 0.05, 0.01, 0.05, 0.1, 0.25, 0.6, 1; ② The nominal diameter and compensation amount of PTFE lined bellows compensators are shown in the table above; ③ the working temperature of PTFE lined bellows compensator is - 50 ~ 150 ℃, when it exceeds 150 ℃, it shall be solved by agreement between the supplier and the demander.



PTFE lined bellows compensator details show

PN10 PN16 PTFE Lined Bellows Compensator High Temperature Resistant 1



PTFE lined bellows compensator advantages

1. Factory price of PTFE lined bellows compensator.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. PTFE lined bellows compensator mold has a variety of specifications, support customization, OEM.

5. Provide free samples of PTFE lined bellows compensator.

6. PTFE lined bellows compensator are in large stock.

7. PTFE lined bellows compensator can adapt to special environment.



Applications of PTFE lined bellow compensator

PTFE lined bellows compensators can be used to eliminate expansion or displacement of pipes, vessels or equipment due to climate change or other reasons. The PTFE lined bellows compensator can also be installed at the inlet and outlet of the pump or at both ends of other high-frequency machinery to reduce or eliminate its vibration. PTFE lined bellows compensators are widely used in chemical, petroleum, textile, medicine, metallurgy, machinery, electronics, electrical appliances, electric power, food, aviation, military research and other industries.



FAQ

Q1:What`s the rubber material of PTFE lined bellows compensator?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.



Q2: Is the flange galvaized of PTFE lined bellows compensator?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.



Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.

Q4: What is the MOQ of PTFE lined bellows compensator?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us.
