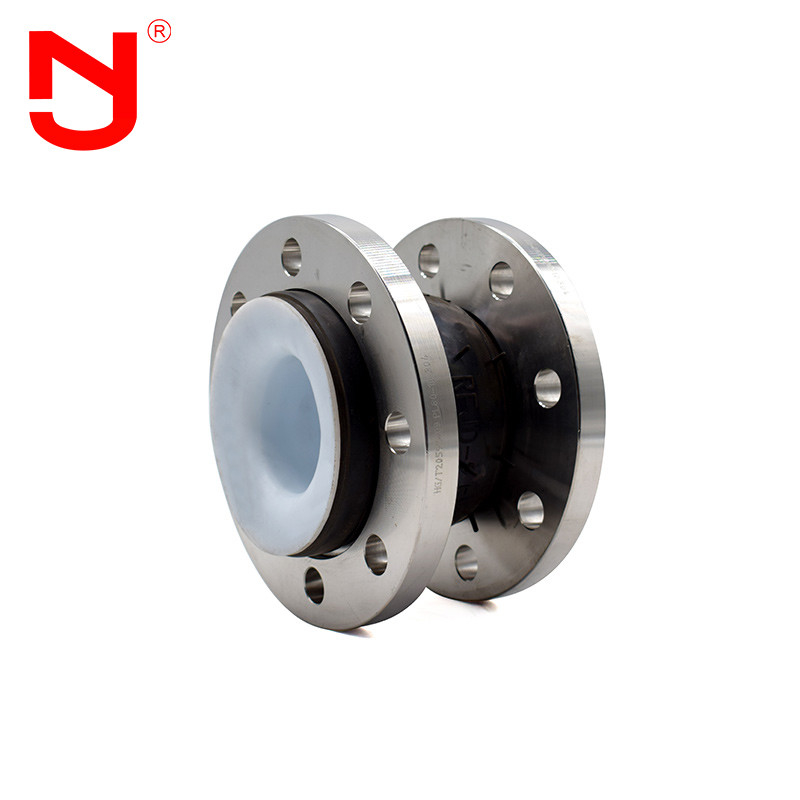

Stainless Steel Flange PTFE Lined Flexible Rubber Joint

Stainless Steel Flange PTFE Lined Flexible Rubber Joint
Stainless Steel Flange PTFE Lined Flexible Rubber Joint Stainless Steel Flange PTFE Lined Flexible Rubber Joint Stainless Steel Flange PTFE Lined Flexible Rubber Joint Stainless Steel Flange PTFE Lined Flexible Rubber Joint

Large Image :  Stainless Steel Flange PTFE Lined Flexible Rubber Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Product Name: Stainless Steel Flange PTFE Lined Flexible Rubber Joint Businese Type: Factory
Flange Standard: Carbon Steel,Stainless Steel,Ductile Iron Warranty: 18 Months
Material: EPDM,NBR,SBR,NR Antirust: Galvanized
High Light:

PTFE Lined Flexible Rubber Joint

,

DN32 Flexible Rubber Joint

,

DN32 flanged rubber expansion joint

Stainless Steel Flange PTFE Lined Flexible Rubber Joint



PTFE lined flexible rubber joint is based on general rubber joint or EPDM high wear-resistant rubber joint with PTFE coating inside. The PTFE coating of PTFE lined flexible rubber joint is mainly white, which can effectively protect the PTFE lined flexible rubber joint from corrosive medium, such as strong acid, strong alkali or high-temperature oil, The original mechanical and physical properties of the PTFE lined flexible rubber joint are not affected. PTFE lined flexible rubber joint can still compensate the pipe vibration, absorb the pipe displacement and reduce the pipe noise.



PTFE lined flexible rubber joint Features

1. The PTFE lined flexible rubber joint has high service temperature, and can meet the service temperature range of - 60-200 ℃ under the condition of strong corrosive medium. In this temperature range, it can meet all chemical media.

2. PTFE lined flexible rubber joints can be used under vacuum conditions. In chemical production, local vacuum state is often caused by cooling, longitudinal discharge and asynchronous operation of pumps and valves.

3. The PTFE lined flexible rubber joint is resistant to high pressure, and can withstand the service pressure up to 3Mpa within the temperature range.

4. High quality polytetrafluoroethylene resin is selected for the anti permeability of PTFE lined flexible rubber joint. The PTFE lining layer with high density and enough thickness is processed by advanced lining technology, which makes the product have superior anti permeability.

5. The integral molding sintering process lining of PTFE lined flexible rubber joint solves the problem of cold and hot expansion of rubber and fluorine, and makes it reach synchronous expansion

6. The PTFE lined flexible rubber joint adopts standardized size preparation, especially for the pipes used in chemical pipelines, and the pipe fittings have strong interchangeability, which provides great convenience for installation and spare parts.



Technical data of PTFE lined flexible rubber joint

Main data of PTFE lined flexible rubber joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°

600

24
260
16
25
22
15°

Notes:1.PTFE lined flexible rubber joint length can be produce according to your requirements .2.PTFE lined flexible rubber joint flanges can be carbon steel or stainless steel ,ductile iron,aluminum,plastic.3.Rubber expansion joint rubebr can be EPDM,NBR,CR,NR...



PTFE lined flexible rubber joint details show

Stainless Steel Flange PTFE Lined Flexible Rubber Joint 0



PTFE lined flexible rubber joint production Flow

Do you know how is a high quality PTFE lined flexible rubber joint made?Let's see with JINGNING.

Stainless Steel Flange PTFE Lined Flexible Rubber Joint 1

It is very important to select the appropriate PTFE lined flexible rubber joint, to understand the compatibility of the medium and the selected material of the PTFE lined flexible rubber joint, the range of full temperature, full pressure and full vacuum, the amount of movement required, and the size between the pipe flanges. With this information, JINGNING application engineers can help determine the ideal PTFE lined flexible rubber joint for any application.



PTFE lined flexible rubber joint advantages

1. Factory price of PTFE lined flexible rubber joint.

2. 16 years of manufacturing experience, 5 years of export experience.

3. Strict quality inspection, the quality far exceeds the industry standard.

4. PTFE lined flexible rubber joint mold has a variety of specifications, support customization, OEM.

5. Provide free samples of PTFE lined flexible rubber joint.

6. PTFE lined flexible rubber joint are in large stock.

7. PTFE lined flexible rubber joint can adapt to special environment.



Applications of PTFE lined flexible rubber joint

The PTFE lined flexible rubber joint has excellent chemical stability and corrosion resistance. PTFE lined flexible rubber joint is one of the best corrosion resistant materials today. Except for molten metal sodium and liquid fluorine, PTFE lined flexible rubber joint can resist all kinds of chemicals. PTFE rubber expansion joint can not change when boiling in aqua regia. PTFE lined flexible rubber joint is more common in chemical pipeline, mainly used in strong acid-base, strong high temperature, strong corrosion pipeline equipment, especially in corrosive medium. including: conveying pipe, exhaust pipe, steam pipe of corrosive gas, high-pressure oil pipe of rolling mill, heat exchanger, lining of tower and tank, valve and other chemical equipment.



FAQ

Q1:What`s the rubber material of PTFE lined flexible rubber joint?

A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.



Q2: Is the flange galvaized of PTFE lined flexible rubber joint?

A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.



Q3: Can I get a sample?

A3: Of cause. We could delivery by Express,by air or by sea.



Q4: What is the MOQ of PTFE lined flexible rubber joint?

A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us.
