Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE
Model Number:
DN32-DN800
Contact Us

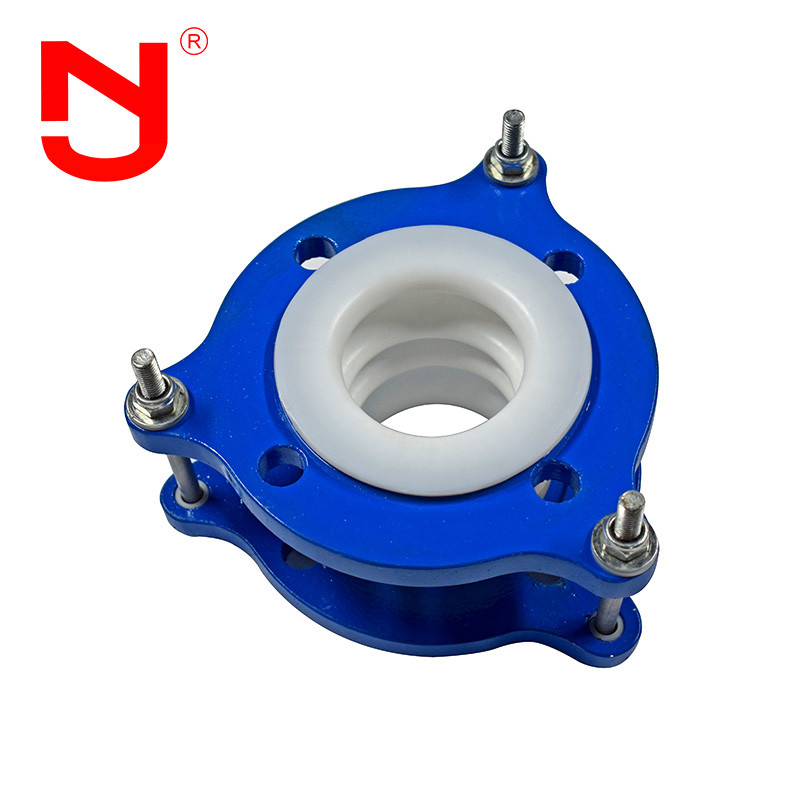

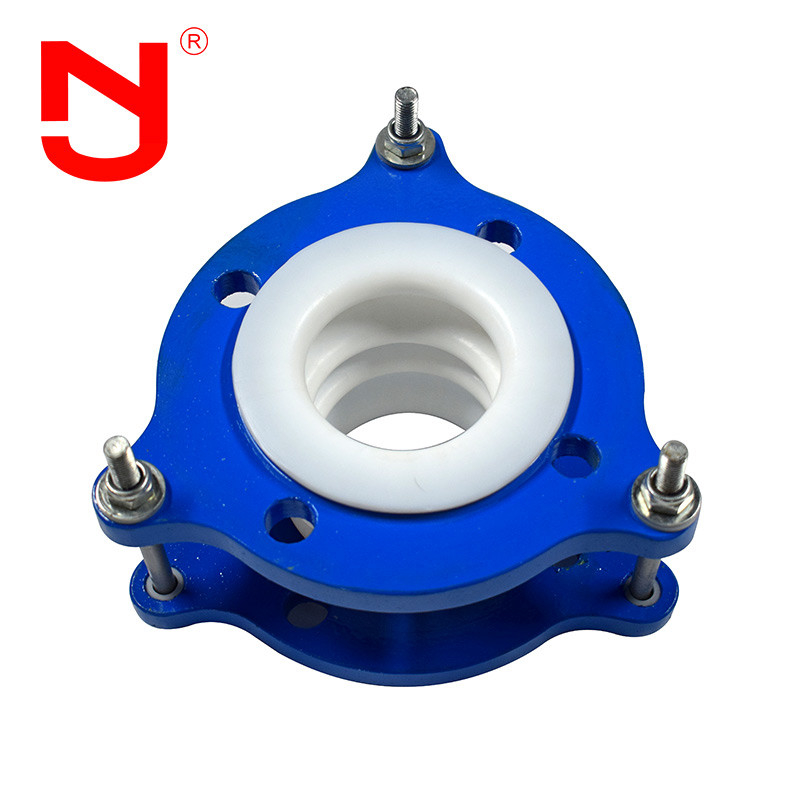

The PTFE Expansion Joints, also known as PTFE Compensator Bellow Joints, are high-quality solutions designed to accommodate thermal expansion and contraction in piping systems, as well as to isolate vibration, reduce system noise and compensate for misalignment. These expansion joints are essential components for a wide range of industries, including chemical processing, pharmaceuticals, food and beverage, and any other sectors where non-reactivity and high purity are required.
Constructed from polytetrafluoroethylene (PTFE), these PTFE Bellows Expansion Connectors offer exceptional resistance to chemicals, ensuring a long service life even when exposed to aggressive substances. The inherent properties of PTFE provide the expansion joints with a broad range of chemical compatibility, which is critical in applications where exposure to corrosive materials is a concern. The PTFE material also exhibits high temperature resistance, allowing these expansion joints to operate effectively in environments with temperatures ranging from -50 to 150 degrees Celsius.
The robust design of the PTFE Compensator Bellow Joint is evident in its durability. They are constructed to withstand continuous operation and are well-suited to handle the stresses associated with industrial processes. The working pressure rating of PN10 and PN16 ensures that these expansion joints can perform reliably under considerable pressure conditions, making them a versatile choice for various applications.
The flanges of the PTFE Expansion Joints are made from durable carbon steel, which provides a strong and secure connection to the piping system. Carbon steel is a popular choice for flange material due to its strength and ability to maintain integrity under high pressure and temperature variations. The flanges are designed to provide a tight seal and easy installation, ensuring a secure fit and preventing any potential leaks.

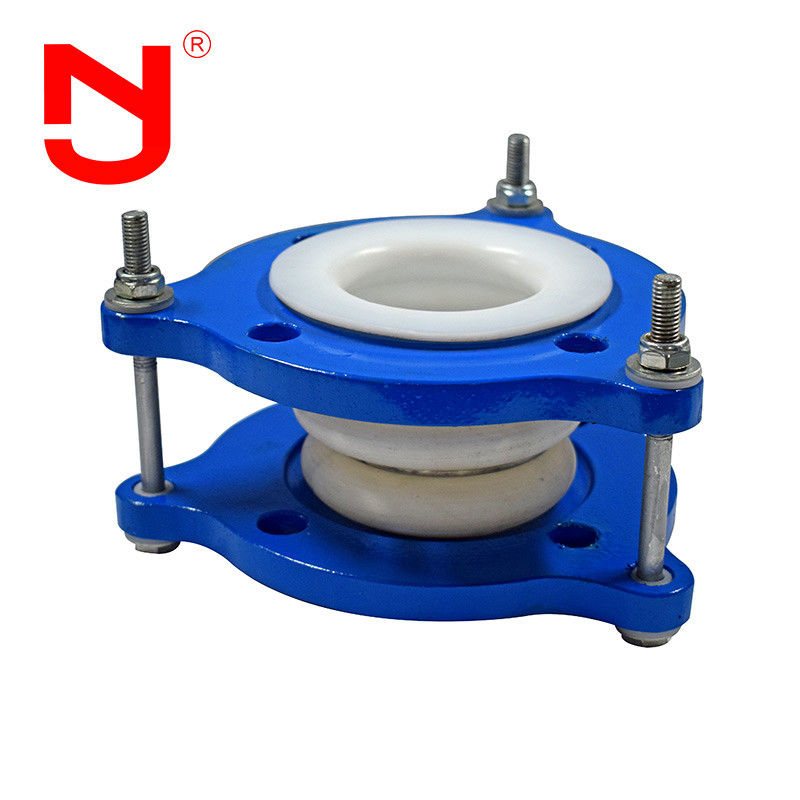

For added stability and to handle axial and lateral forces, the PTFE Expansion Joints can be equipped with tie rods. The tie rods are available in both carbon steel and stainless steel, catering to different environmental and application requirements. Carbon steel tie rods are suitable for general use, while stainless steel options are ideal for more demanding applications where superior corrosion resistance is necessary.
The PTFE Compensator Bellow Joint is engineered for longevity and reliability. The high durability of the product means that maintenance and replacement costs are minimized, contributing to a lower total cost of ownership. Users can depend on these expansion joints to perform consistently over time, helping to maintain the integrity of the piping system and avoid unplanned downtime.
With their excellent chemical resistance, temperature range, pressure ratings, and material strength, PTFE Expansion Joints are an indispensable solution for managing the dynamic challenges faced by piping systems. Whether you are dealing with aggressive chemicals, extreme temperatures, or pressure fluctuations, the PTFE Bellows Expansion Connector provides a secure and reliable way to maintain the functionality and safety of your industrial processes.
In conclusion, the PTFE Expansion Joints stand out as a superior choice for businesses looking to ensure the seamless operation of their piping systems. The combination of PTFE's unique properties with robust construction materials like carbon steel and the option for stainless steel tie rods, make these joints an exceptional choice for a broad range of industrial applications. When you choose the PTFE Compensator Bellow Joint, you are investing in a product that is designed to deliver performance, durability, and peace of mind.
| Parameter | Description |
|---|---|
| Working Pressure | PN10, PN16 |
| Temperature Range | -200°F To 500°F |
| Application | Chemical Processing, Food And Beverage, Pharmaceutical, Power Generation, Pulp And Paper, Water And Wastewater Treatment |
| Installation | Easy |
| Pressure Rating | 150 Psi |
| Tie Rod | Carbon Steel, Stainless Steel |
| Flange Material | Carbon Steel |
| Working Temperature | - 50 ~ 150 ℃ |
| Maintenance | Low |
| Durability | High |
The JINGNING PTFE Bellows Expansion Connector is an exemplary product that serves a multitude of applications across various industries. Manufactured with precision in China, these expansion joints, with model numbers ranging from DN32 to DN800, are designed to accommodate thermal expansion, misalignments, and vibrations in piping systems. Each joint is certified with a CE marking, ensuring compliance with European standards for health, safety, and environmental protection.
Customers requiring these high-quality PTFE Expansion Joints can place orders with a minimum quantity of one, making it accessible for small-scale projects or replacement needs. Upon ordering, the product is meticulously packaged in wooden boxes to ensure its protection during transit and is delivered within a prompt timeframe of 5-8 work days.
The flanges of the JINGNING PTFE Expansion Joints are made from durable carbon steel, with a galvanized finish to prevent rust and ensure longevity. The flange standards are versatile, including DIN, BS, ANSI, and JIS, which makes these expansion joints adaptable for global use in a variety of piping systems.
Boasting excellent chemical resistance, JINGNING's PTFE Corrugated Hose Joint is an ideal choice for industries such as Chemical Processing, where aggressive substances are common. The inert nature of PTFE ensures that the expansion joint will not react with the vast majority of chemicals, making it a reliable component in critical processes.
In the Food and Beverage industry, where sanitation and cleanliness are paramount, the JINGNING PTFE Bellows Expansion Connector meets the strict requirements. Its non-reactive properties make it suitable for contact with consumables without risking contamination. Similarly, in Pharmaceutical applications, the purity and inertness of PTFE prevent any unwanted reactions that could compromise the quality of medical products.
For Power Generation, Pulp and Paper, and Water and Wastewater Treatment industries, these expansion joints contribute to the maintenance of smooth and efficient operations. They help manage thermal expansion in pipelines, reduce stress, and isolate vibration, which is essential for the longevity of the piping infrastructure and the prevention of leaks or breaks.
With the combination of excellent chemical resistance, antirust properties, and adherence to multiple flange standards, JINGNING's PTFE Bellows Expansion Connector stands out as a highly versatile and dependable solution for a wide array of industrial applications, ensuring safety, efficacy, and durability in even the most demanding environments.
Brand Name: JINGNING
Model Number: DN32-DN800
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 5-8 work days
Installation: Easy
Flange Standard: DIN,BS,ANSI,JIS
Antirust: Galvanized
Working Temperature: - 50 ~ 150 ℃
Maintenance: Low
Our JINGNING PTFE Compensator Bellow Joint is the perfect solution for accommodating thermal expansion and misalignment in your piping systems. With a model range from DN32-DN800, these PTFE Bellows Expansion Connectors are manufactured in China and come with a CE certification, ensuring high-quality standards and reliability.
Designed for an easy installation process, our PTFE Compensator Bellow Joints conform to various flange standards including DIN, BS, ANSI, and JIS. The galvanized antirust treatment ensures longevity and durability, even in harsh environments. The working temperature range of -50 to 150 ℃ allows these joints to perform optimally in a wide range of conditions, while the low maintenance requirement makes them an economical choice for your piping needs.
With a minimum order quantity of just one and quick delivery times of 5-8 work days, we package each PTFE Expansion Joint carefully in a wooden box to ensure safe transportation to your location. Trust JINGNING for your pipe expansion and connection needs – quality assured, with efficient service.
Q1: What sizes of PTFE Expansion Joints does JINGNING offer?
A1: JINGNING offers PTFE Expansion Joints in a wide range of sizes, from DN32 to DN800, to accommodate various piping requirements.
Q2: Where are JINGNING PTFE Expansion Joints manufactured?
A2: JINGNING PTFE Expansion Joints are manufactured in China with a commitment to quality and reliability.
Q3: Do JINGNING PTFE Expansion Joints come with any certifications?
A3: Yes, JINGNING PTFE Expansion Joints are CE certified, ensuring they meet the high standards required for European markets.
Q4: What is the minimum order quantity for JINGNING PTFE Expansion Joints?
A4: The minimum order quantity for JINGNING PTFE Expansion Joints is 1 unit, making it convenient for customers to order according to their specific needs.
Q5: How are JINGNING PTFE Expansion Joints packaged for delivery?
A5: JINGNING PTFE Expansion Joints are carefully packaged in wooden boxes to ensure they are well-protected during transit.
Q6: What is the estimated delivery time for JINGNING PTFE Expansion Joints?
A6: The estimated delivery time for JINGNING PTFE Expansion Joints is typically 5-8 work days, depending on the destination and availability.
