Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE
Model Number:
DN32-DN800
Contact Us

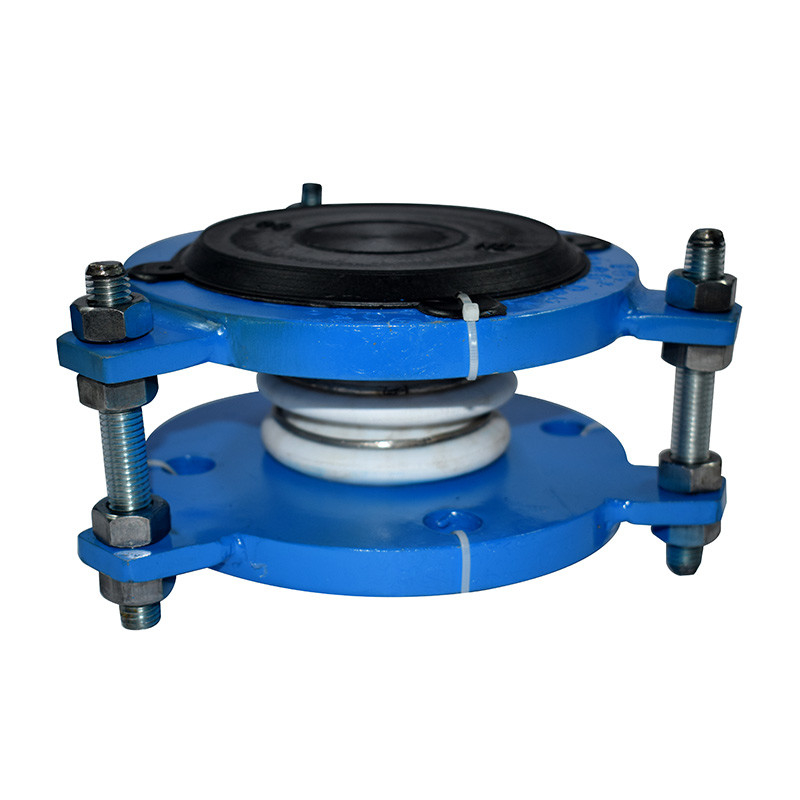

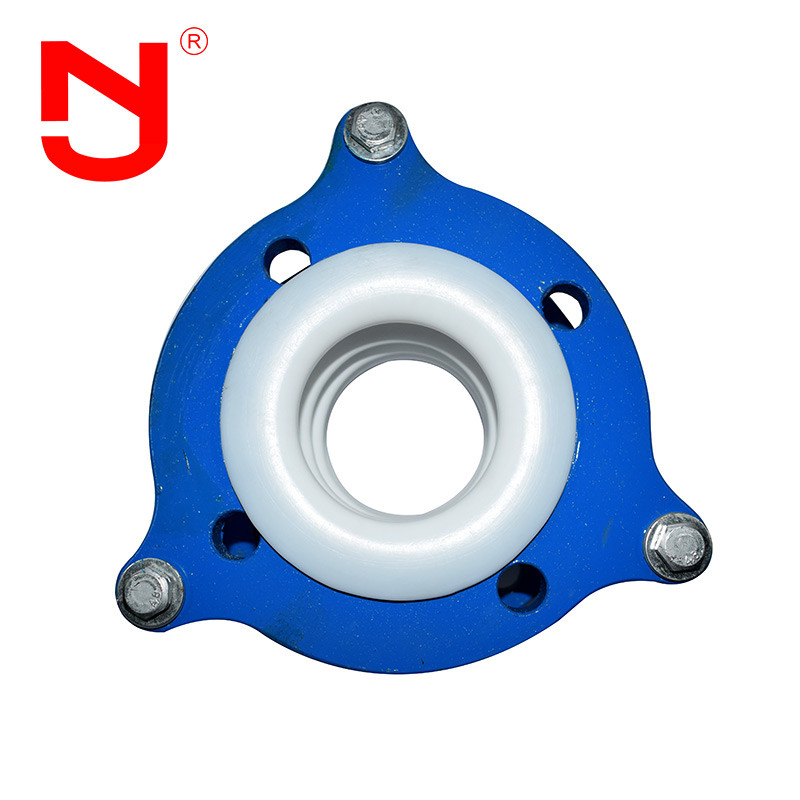

The PTFE Expansion Joints , also known as PTFE Bellows Expansion Connectors or PTFE Corrugated Hose Joints , are premium flexible connectors designed to handle a wide range of applications across various industries. Manufactured with precision and high-quality materials, these expansion joints offer exceptional performance in environments where temperatures and conditions can be extreme. The product name "18 Months" reflects the confidence in the durability and longevity of these expansion joints, assuring users of their investment's value over time.
The flange material used in the construction of these expansion joints is Carbon Steel, known for its strength and corrosion resistance. This makes the joints suitable for robust industrial applications where reliability is crucial. The adaptability of these joints is further enhanced by their impressive temperature range capability, which spans from -200°F to 500°F . This broad temperature range allows for the safe transport of materials ranging from cryogenic fluids to hot substances without compromising the integrity of the joint or the piping system.
When it comes to pressure, these PTFE Expansion Joints operate efficiently under working pressures of PN10 and PN16 . This pressure rating makes them a versatile solution for systems where moderate to high-pressure conditions are present. The adaptability to different pressure conditions without performance loss is a testament to their robust design and construction.
One of the key advantages of these expansion joints is their application versatility. They are widely used in industries such as Chemical Processing , where their inertness to a vast array of chemicals prevents corrosive damage and contamination. In the Food and Beverage industry, they ensure the safe and hygienic transfer of consumable products, while in the Pharmaceutical sector, they maintain the purity and integrity of medicinal products by preventing cross-contamination.
The Power Generation industry benefits from the durability and temperature resilience of these expansion joints, ensuring uninterrupted operations in power plants. The Pulp and Paper industry utilizes them to handle the challenging conditions of paper production processes. Lastly, the Water and Wastewater Treatment sector relies on these expansion joints for their ability to withstand aggressive treatment chemicals and varying temperature conditions, ensuring the longevity and reliability of treatment systems.
The PTFE Bellows Expansion Connectors are engineered with a focus on facilitating thermal expansion and contraction in piping systems, reducing the risk of damage due to thermal variations. This is crucial for maintaining the integrity and extending the lifespan of both the expansion joints and the piping systems they are integrated into. Their design also compensates for misalignment and offers vibration dampening, which helps protect sensitive equipment connected to the piping system.
Moreover, the PTFE Corrugated Hose Joints feature a convoluted design that provides excellent flexibility, making them ideal for installations with space constraints or where complex routing is necessary. The flexibility also allows for easy installation and maintenance, reducing downtime and labor costs associated with system upkeep.
Overall, the "18 Months" PTFE Expansion Joints are a reliable and cost-effective solution for a wide range of industrial applications. Their robust construction, coupled with their ability to withstand extreme temperatures and pressures, makes them an essential component in maintaining the efficiency, safety, and reliability of industrial piping systems. By choosing these PTFE expansion joints, industries can expect a product that not only performs exceptionally but also provides long-term service and peace of mind.
| Parameter | Specification |
|---|---|
| Temperature Range | -200°F To 500°F |
| Installation | Easy |
| Tie Rod | Carbon Steel, Stainless Steel |
| Flange Standard | DIN, BS, ANSI, JIS |
| OEM | 16 Years' Experience |
| Working Temperature | - 50 ~ 150 ℃ |
| Chemical Resistance | Excellent |
| Maintenance | Low |
| Durability | High |
| Flange Material | Carbon Steel |
The JINGNING PTFE Expansion Joints, with model numbers ranging from DN32 to DN800, are a superior choice for a wide array of industrial applications. These expansion joints, originating from China with CE certification, are essential in accommodating thermal expansion, isolating vibration, and adjusting misalignments in piping systems. The minimum order quantity is set at one, making it accessible for both small and large-scale projects. The joints are securely packaged in wooden boxes, ensuring their integrity during shipping, and with a prompt delivery time of 5-8 work days, clients can expect swift service.
Constructed with a PTFE bellows expansion connector, the JINGNING expansion joints are specifically designed to withstand a temperature range of -200°F to 500°F. This makes them suitable for use in harsh chemical environments and extreme temperatures, where standard materials might fail. The PTFE corrugated hose joint component of these expansion joints offers exceptional flexibility and corrosion resistance, which is pivotal in maintaining the integrity of the piping system over time.
With a working pressure of PN10, PN16, and a pressure rating of 150 Psi, these PTFE compensator bellow joints are capable of handling a variety of operating conditions within industrial systems. The easy installation process is a significant advantage, minimizing downtime and ensuring a seamless integration into existing pipelines. Furthermore, the carbon steel flanges provide robust and durable connections, safeguarding against potential leaks or failures at connection points.
The JINGNING PTFE Expansion Joints are versatile and can be employed in numerous scenarios including chemical processing plants, power generation facilities, water treatment systems, and HVAC applications. Their resilience against corrosive substances and ability to maintain functionality under significant temperature fluctuations make them an invaluable component in ensuring the operational stability and efficiency of industrial systems.
Brand Name: JINGNING
Model Number: DN32-DN800
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 5-8 work days
Chemical Resistance: Excellent
Flange Standard: DIN,BS,ANSI,JIS
Working Temperature: - 50 ~ 150 ℃
Application: Chemical Processing, Food And Beverage, Pharmaceutical, Power Generation, Pulp And Paper, Water And Wastewater Treatment
Working Pressure: PN10,PN16
Our JINGNING PTFE Bellows Expansion Conector is designed for durability and performance in critical applications. The PTFE construction provides excellent chemical resistance and accommodates a wide range of working temperatures. Ideal for industries such as Chemical Processing, Food and Beverage, Pharmaceutical, Power Generation, Pulp and Paper, as well as Water and Wastewater Treatment. Our PTFE Bellows Expansion Conectors are certified with CE marking and adhere to multiple flange standards including DIN, BS, ANSI, and JIS to ensure compatibility with various piping systems. Available in model sizes from DN32 to DN800, JINGNING PTFE Bellows Expansion Conectors can withstand working pressures of PN10 and PN16, making them a reliable choice for your expansion joint needs.
Our PTFE Expansion Joints are designed for superior performance under a variety of service conditions. They provide excellent resistance to corrosive materials and high-temperature environments. To ensure that you get the most out of our product, we offer comprehensive technical support and services tailored to meet your specific needs.
Our technical support includes assistance with product selection to ensure compatibility with your system requirements, guidance on proper installation techniques, and advice on maintenance practices to extend the life of your expansion joints. If you encounter any issues or have questions regarding your PTFE Expansion Joints, our team of experts is ready to provide you with solutions to keep your systems running smoothly.
In addition to technical support, we offer a range of services to enhance your experience with our products. This includes on-site assistance for installation and troubleshooting, training sessions for your maintenance staff, and regular check-ups to evaluate the performance and condition of your expansion joints. We are committed to providing you with the support you need to maintain optimal operation of our PTFE Expansion Joints throughout their lifecycle.
Our PTFE Expansion Joints are carefully packaged to ensure they arrive at your facility in pristine condition. Each joint is individually wrapped in protective film to resist scratches and contamination. The joints are then placed in sturdy cardboard boxes with ample cushioning material to prevent movement and absorb shock during transit. For larger orders, we utilize wooden crates that are built to withstand the rigors of shipping and handling.
All packages are sealed and labeled with the necessary shipping information, including a detailed packing list, handling instructions, and tracking details. We adhere to all standard shipping regulations for PTFE products and ensure that our packaging is environmentally friendly and recyclable where possible.
Prior to dispatch, each shipment is thoroughly inspected to guarantee that our high standards of quality are maintained. We work closely with trusted carriers to provide a range of shipping options, from standard to expedited services, to meet your delivery requirements. Upon shipment, you will receive a confirmation with the estimated delivery date and tracking information to monitor your order's progress.
Q1: What are the available sizes for JINGNING PTFE Expansion Joints?
A1: JINGNING PTFE Expansion Joints are available in sizes ranging from DN32 to DN800 to suit various pipeline diameter requirements.
Q2: Where are JINGNING PTFE Expansion Joints manufactured?
A2: JINGNING PTFE Expansion Joints are manufactured in China, ensuring high-quality standards and manufacturing excellence.
Q3: What certifications do JINGNING PTFE Expansion Joints have?
A3: JINGNING PTFE Expansion Joints are CE certified, which attests to their conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).
Q4: What is the minimum order quantity for JINGNING PTFE Expansion Joints?
A4: The minimum order quantity for JINGNING PTFE Expansion Joints is 1 unit, allowing for flexibility in order size according to customer needs.
Q5: What are the packaging and delivery details for JINGNING PTFE Expansion Joints?
A5: JINGNING PTFE Expansion Joints are carefully packaged in wooden boxes to ensure safe transportation. The delivery time for these joints is typically 5-8 work days, depending on the order size and destination.
