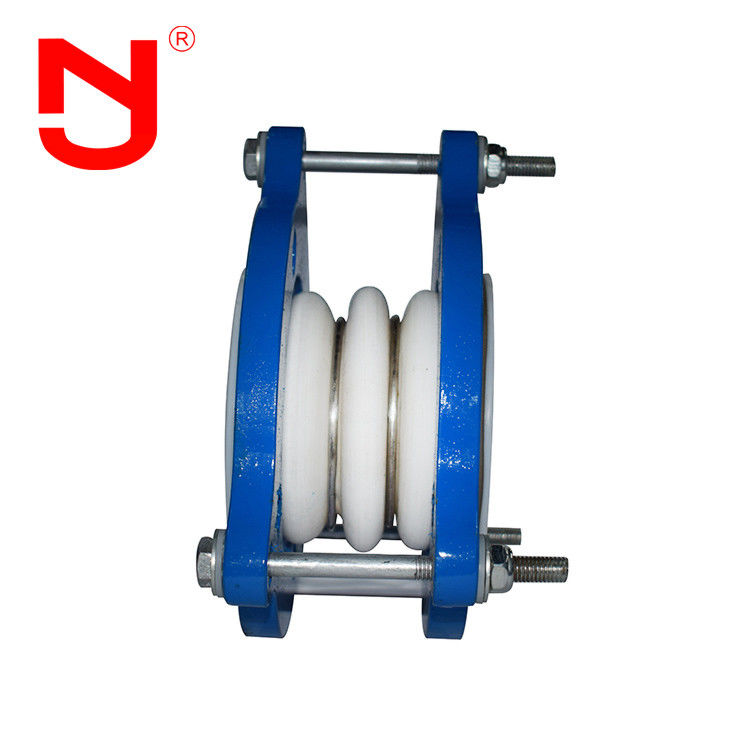

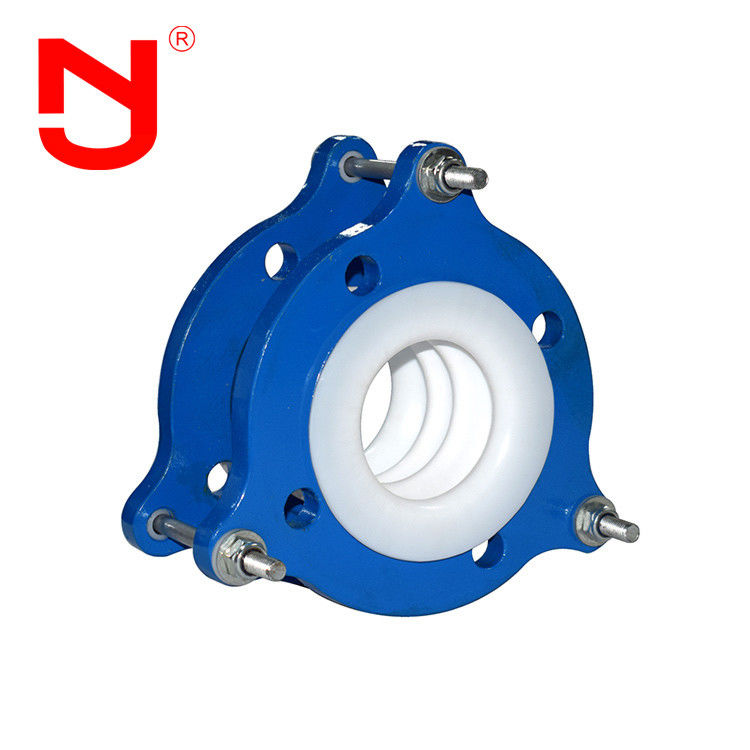

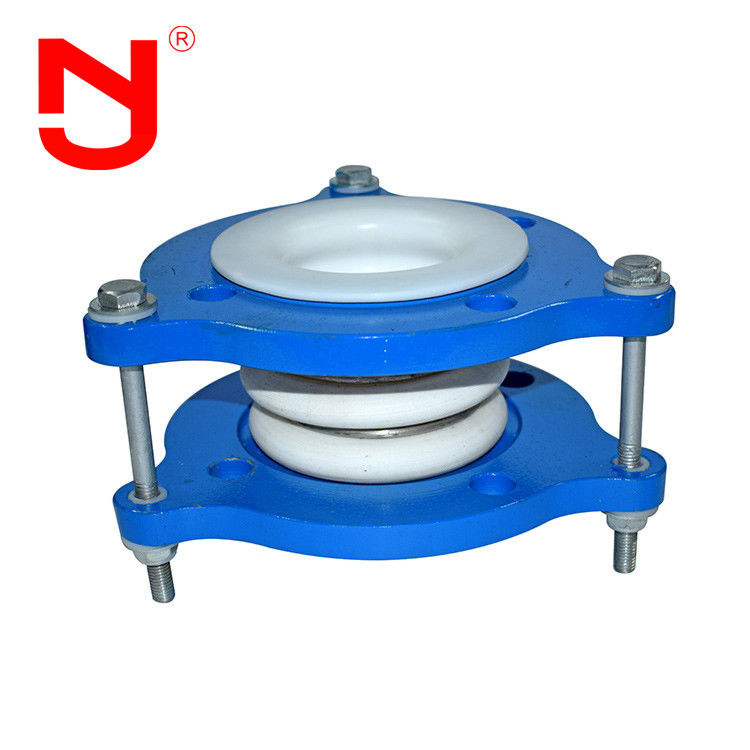

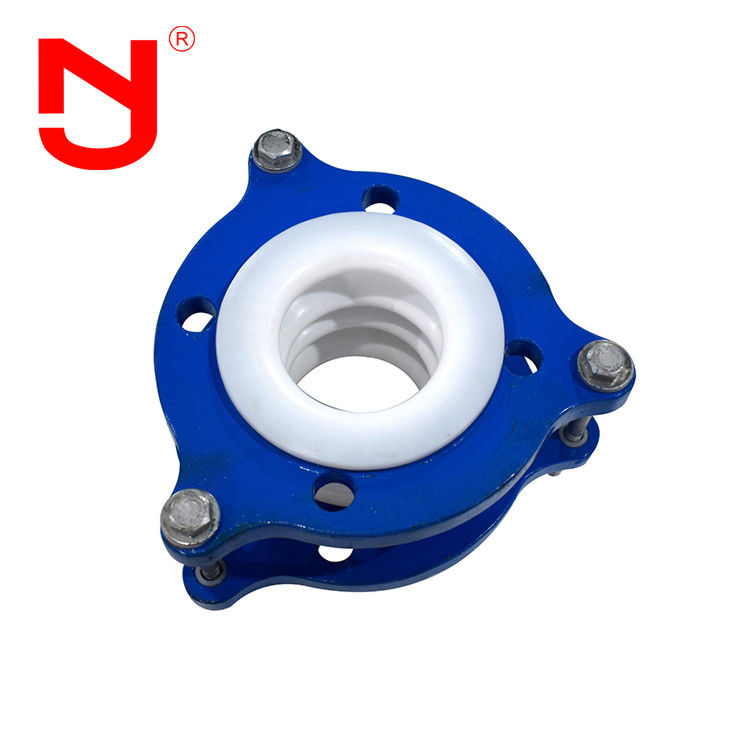

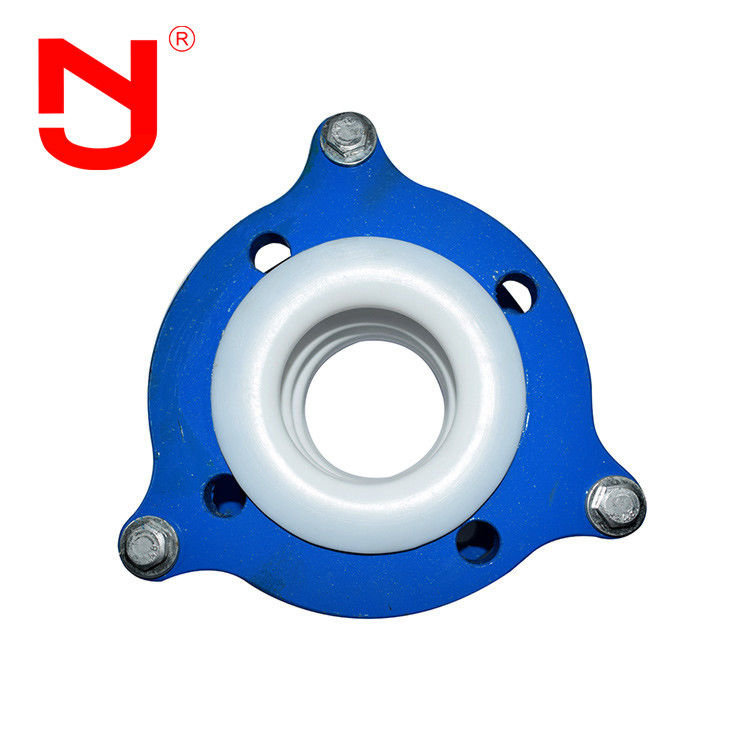

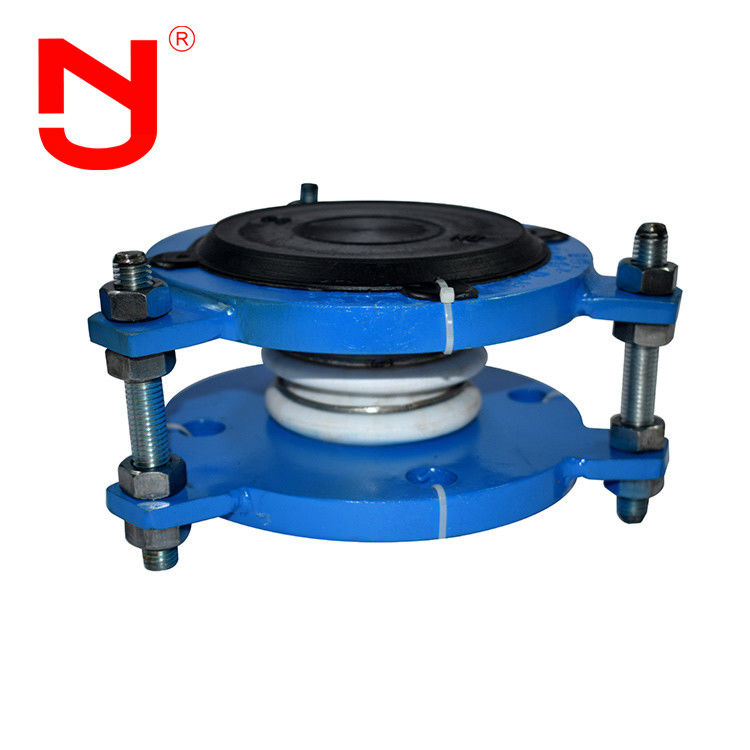

Chemical Resistant PTFE Flexible Joint Pipe DIN/BS/ANSI/JIS Flange Standard
PTFE Flexible Joint Pipe is an important pipeline connection equipment, mainly made of PTFE material. This material has excellent corrosion resistance and can withstand various concentrations of acids, bases, salts, and organic solvents, ensuring its stability and durability in extreme working environments. This product is applied in various industrial fields, providing stable and efficient compensation solutions for pipeline systems with its unique material properties and excellent performance.
Performance characteristics
The main features of PTFE Flexible Joint Pipe include:
1. Corrosion resistance
2. High temperature stability
3. Sealing performance
4. Widely used
5. Eliminate installation errors
In summary, pure PTFE Flexible Joint Pipe have become indispensable and important equipment in the industrial field due to their unique material properties and excellent performance.
Product Specification
|
Diameter
(mm)
|
Pressure grade
(Mpa) |
Available Area
of Bellows
(c㎡)
|
Max Size of
External Diameter
(mm)
|
Length
(mm) |
| 1.0 |
1.6 |
2.5 |
Flange |
Tube |
| 32 |
20/26 |
18/63 |
15/98 |
16 |
225 |
160/250 |
264/280 |
| 40 |
20/24 |
18/89 |
15/98 |
23 |
244 |
164/259 |
269/289 |
| 50 |
20/70 |
18/70 |
15/106 |
37 |
259 |
172/276 |
282/306 |
| 65 |
26/44 |
22/55 |
15/138 |
55 |
270 |
215/294 |
300/322 |
| 80 |
34/33 |
28/41 |
19/68 |
81 |
284 |
240/338 |
344/366 |
| 100 |
40/75 |
35/93 |
25/54 |
121 |
304 |
235/317 |
323/345 |
| 125 |
38/59 |
34/74 |
29/117 |
180 |
334 |
282/314 |
316/342 |
| 150 |
40/62 |
34/78 |
29/92 |
257 |
364 |
282/339 |
338/367 |
| 200 |
59/52 |
53/58 |
46/65 |
479 |
442 |
340/402 |
402/426 |
| 250 |
87/35 |
79/39 |
48/78 |
769 |
507 |
393/459 |
493/399 |
| 300 |
87/37 |
79/41 |
71/47 |
1105 |
562 |
464/525 |
564/565 |
| 350 |
87/44 |
79/48 |
71/45 |
1307 |
622 |
509/564 |
609/604 |
| 400 |
87/43 |
79/47 |
71/47 |
1611 |
562 |
522/566 |
622/628 |
| 450 |
87/37 |
79/41 |
47/75 |
1972 |
700 |
403/498 |
503/523 |
| 500 |
87/68 |
79/75 |
71/45 |
2445 |
760 |
431/523 |
531/554 |
| 600 |
87/85 |
79/94 |
71/82 |
3534 |
835 |
478/548 |
578/588 |
| 700 |
87/77 |
79/85 |
71/103 |
4717 |
1110 |
490 |
590 |
| 800 |
102/102 |
94/112 |
71/95 |
5822 |
1265 |
502 |
602 |
| 900 |
102/97 |
94/107 |
80/123 |
7620 |
1186 |
/ |
698 |
| 1000 |
102/105 |
94/106 |
82/117 |
9043 |
1286 |
/ |
692 |
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.
Product Details
Hot Products
Application
PTFE Flexible Joint Pipe are widely used in industries such as aviation, petroleum, chemical, metallurgical, power, papermaking, wood, textile, construction, medicine, and transportation.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certificate
FAQ
Q1:Can you provide drawings of PTFE flexible joint pipe?
A1:Yes,we could provide drawings for you.Please contact us to get the drawings.
Q2:What’s the warranty period of PTFE flexible joint pipe?
A2:We provide 18 months’ warranty.
Q3:What’ the MOQ of PTFE flexible joint pipe?
A3:1pc. We could delivery any quantity according to your requirements.
Q4:Can we get a sample of PTFE flexible joint pipe?
A4:Yes,we could provide samples for you to test the quality.
