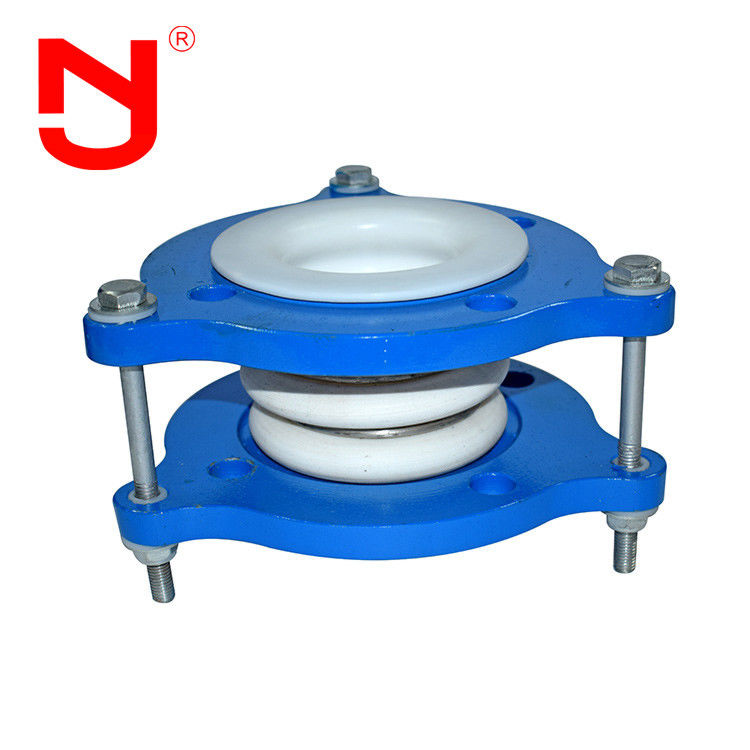

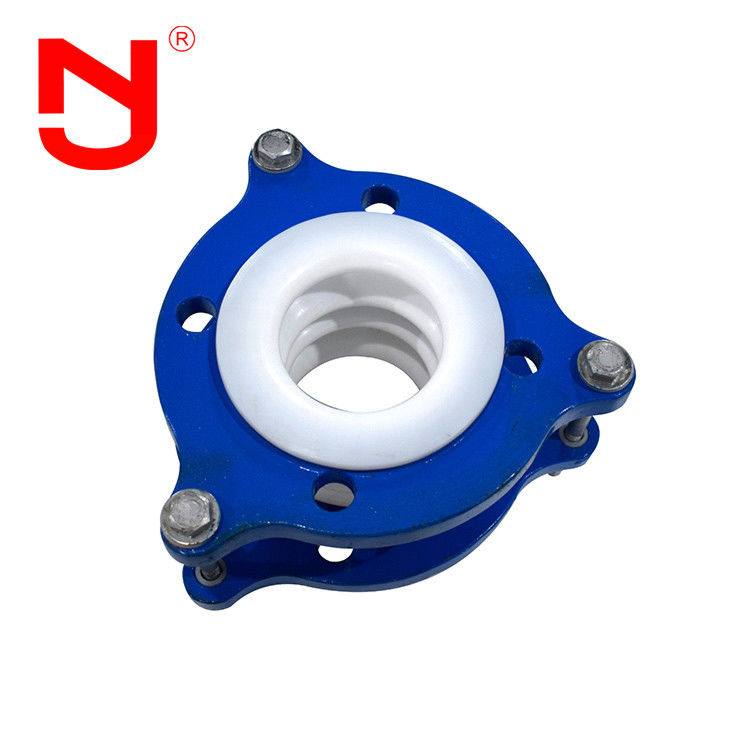

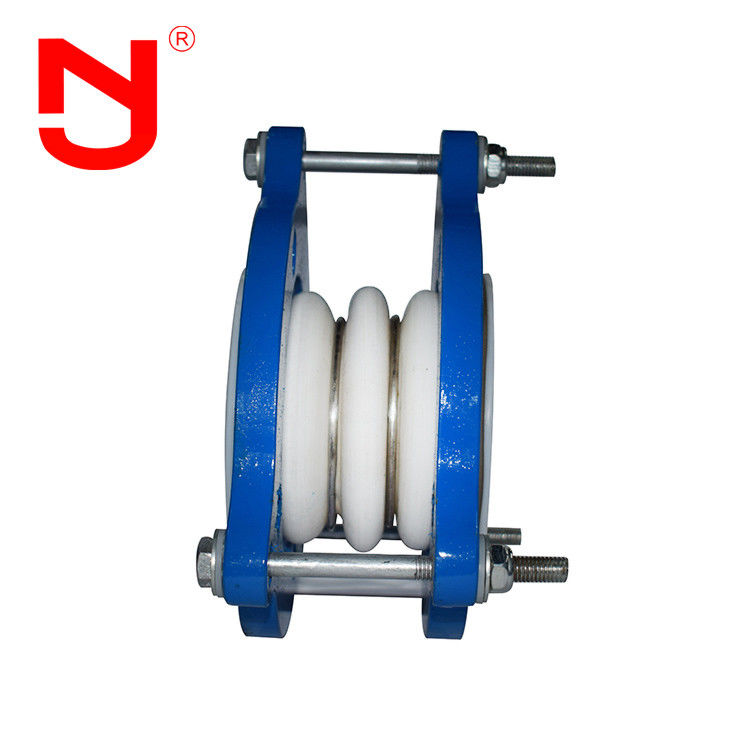

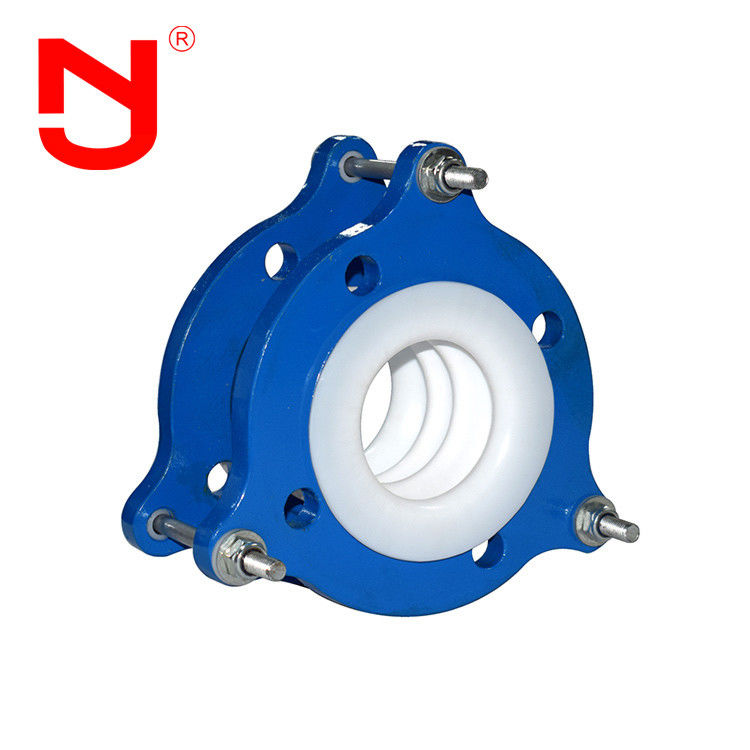

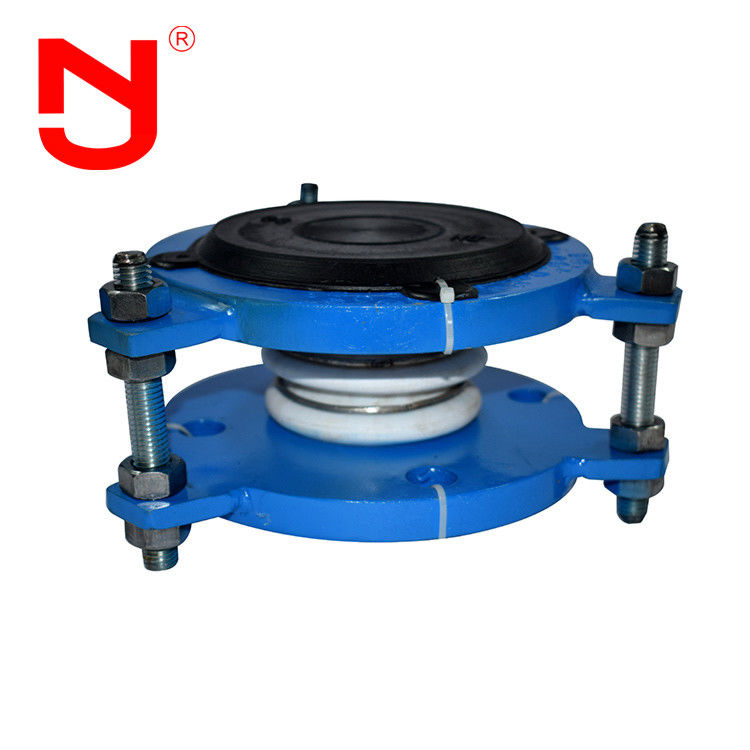

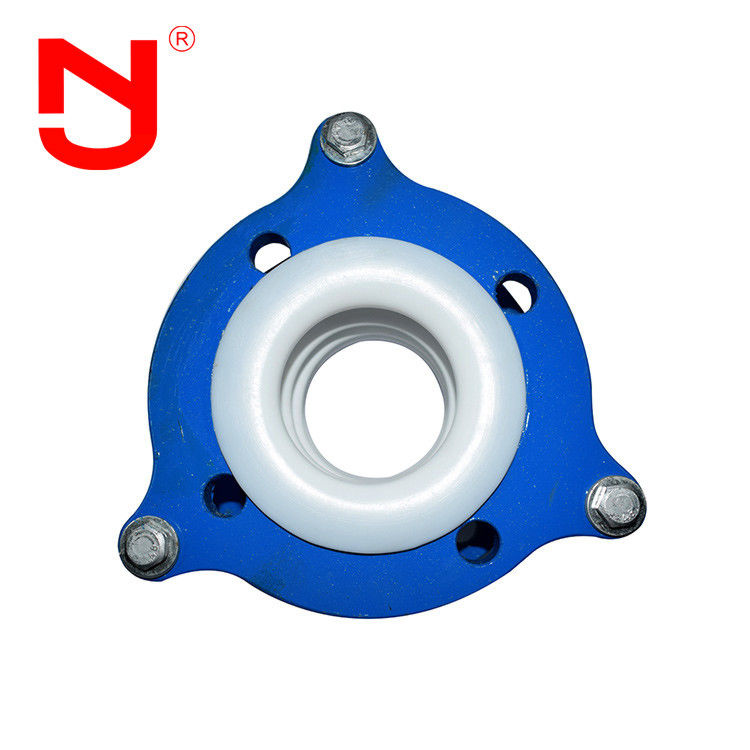

Manufacturer PTFE Axial Expansion Joint with ANSI Flanged Type
PTFE axial expansion joint, a fluoropolymer renowned for exceptional chemical inertness and non-stick properties, PTFE bellows tubing resists corrosive media, extreme temperatures (-200°C to +260°C), and UV degradation. The material's low friction coefficient and dielectric strength further distinguish it from metallic or elastomeric alternatives, making it ideal for semiconductor, pharmaceutical, and high-purity fluid handling applications.
Performance characteristics
The main features of PTFE axial expansion joint include:
1. Corrosion resistance
2. High temperature stability
3. Sealing performance
4. Widely used
5. Eliminate installation errors
In summary, pure PTFE axial expansion joint have become indispensable and important equipment in the industrial field due to their unique material properties and excellent performance.
Product Specification
|
Diameter
(mm)
|
Pressure grade
(Mpa) |
Available Area
of Bellows
(c㎡)
|
Max Size of
External Diameter
(mm)
|
Length
(mm) |
| 1.0 |
1.6 |
2.5 |
Flange |
Tube |
| 32 |
20/26 |
18/63 |
15/98 |
16 |
225 |
160/250 |
264/280 |
| 40 |
20/24 |
18/89 |
15/98 |
23 |
244 |
164/259 |
269/289 |
| 50 |
20/70 |
18/70 |
15/106 |
37 |
259 |
172/276 |
282/306 |
| 65 |
26/44 |
22/55 |
15/138 |
55 |
270 |
215/294 |
300/322 |
| 80 |
34/33 |
28/41 |
19/68 |
81 |
284 |
240/338 |
344/366 |
| 100 |
40/75 |
35/93 |
25/54 |
121 |
304 |
235/317 |
323/345 |
| 125 |
38/59 |
34/74 |
29/117 |
180 |
334 |
282/314 |
316/342 |
| 150 |
40/62 |
34/78 |
29/92 |
257 |
364 |
282/339 |
338/367 |
| 200 |
59/52 |
53/58 |
46/65 |
479 |
442 |
340/402 |
402/426 |
| 250 |
87/35 |
79/39 |
48/78 |
769 |
507 |
393/459 |
493/399 |
| 300 |
87/37 |
79/41 |
71/47 |
1105 |
562 |
464/525 |
564/565 |
| 350 |
87/44 |
79/48 |
71/45 |
1307 |
622 |
509/564 |
609/604 |
| 400 |
87/43 |
79/47 |
71/47 |
1611 |
562 |
522/566 |
622/628 |
| 450 |
87/37 |
79/41 |
47/75 |
1972 |
700 |
403/498 |
503/523 |
| 500 |
87/68 |
79/75 |
71/45 |
2445 |
760 |
431/523 |
531/554 |
| 600 |
87/85 |
79/94 |
71/82 |
3534 |
835 |
478/548 |
578/588 |
| 700 |
87/77 |
79/85 |
71/103 |
4717 |
1110 |
490 |
590 |
| 800 |
102/102 |
94/112 |
71/95 |
5822 |
1265 |
502 |
602 |
| 900 |
102/97 |
94/107 |
80/123 |
7620 |
1186 |
/ |
698 |
| 1000 |
102/105 |
94/106 |
82/117 |
9043 |
1286 |
/ |
692 |
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.
Product Details
Hot Products
Application
PTFE axial expansion joint are widely used in industries such as aviation, petroleum, chemical, metallurgical, power, papermaking, wood, textile, construction, medicine, and transportation.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certificate
FAQ
Q1:Can you provide drawings of PTFE axial expansion joint?
A1:Yes,we could provide drawings for you.Please contact us to get the drawings.
Q2:What’s the warranty period of PTFE axial expansion joint?
A2:We provide 18 months’ warranty.
Q3:What’ the MOQ of PTFE axial expansion joint?
A3:1pc. We could delivery any quantity according to your requirements.
Q4:Can we get a sample of PTFE axial expansion joint?
A4:Yes,we could provide samples for you to test the quality.
