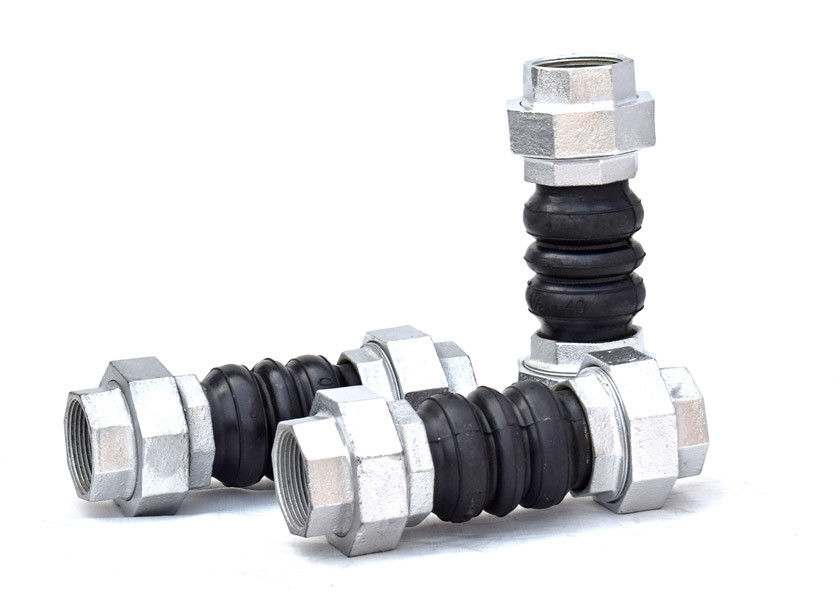

Union EPDM Thread Connected Pipe Coupling Sphere Rubber Expansion Joints Compensator
The form: this product consists of rubber pipe ,made of inner glue ,multi-layer proofinf and cord fabric and outer glue abd metal woggle joint .It is applicable for the connection of inlet and outlet pipes of various fancoil sets of air conditionings in the guest rooms of hotels and restaurants.
1. All expansion joints are finshed with retaining flanges,limit rod units are available on special request.
2. Pressures shows are recommended“operating”,test pressure is 1.5time“operating”,burst pressure is 3 time “operating”.
3. Vacuum rating is based on neutral installed length without external load.Products shall not be installed “elongated”on vacuum applications.
4. Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.
JINGNING product specifications in this catalogues for reference only. Huayuan reserve the right to change design ,construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Huayuan technical service directly.
Part of thread connected pipe coupling technical data
| Main data of thread connected pipe coupling | ||||||
| Nominal Diameter | Neutral Length |
Movments |
||||
| DN(mm) | NPS | L(mm) | Ext.(mm) | Comp(mm) | Lateral. | Angular.(°) |
| 15 | 1/2 | 200 | 5-6 | 22 | 22 | 45 |
| 20 | 3/4 | 200 | 5-6 | 22 | 22 | 45 |
| 25 | 1 | 200 | 5-6 | 22 | 22 | 45 |
| 32 | 11/4 | 200 | 5-6 | 22 | 22 | 45 |
| 40 | 11/2 | 200 | 5-6 | 22 | 22 | 45 |
| 50 | 2 | 200 | 5-6 | 22 | 22 | 45 |
| 65 | 21/2 | 265 | 8-10 | 24 | 24 | 45 |
| 80 | 3 | 285 | 8-10 | 24 | 24 | 45 |
Thread connected pipe coupling advantage
A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.
B: Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.
C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.
Thread connected pipe coupling details
EPDM thread connected pipe coupling for high vibration absorbing ability can be customized DN15-DN80.
EPDM thread connected pipe coupling for high vibration absorbing ability after surface and treatment and inspection of finished products.
