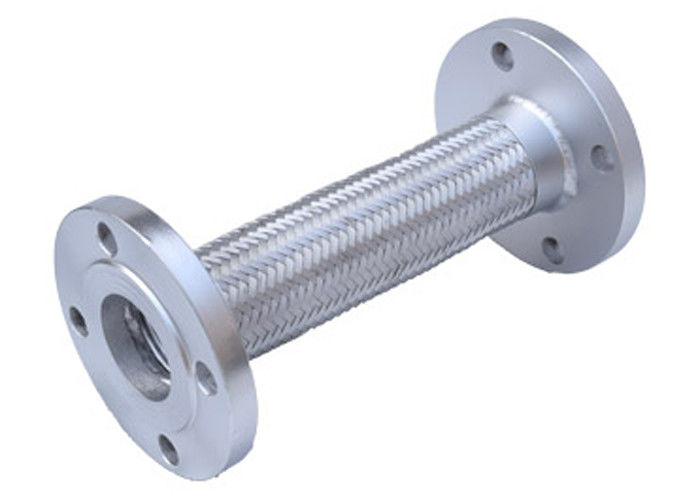

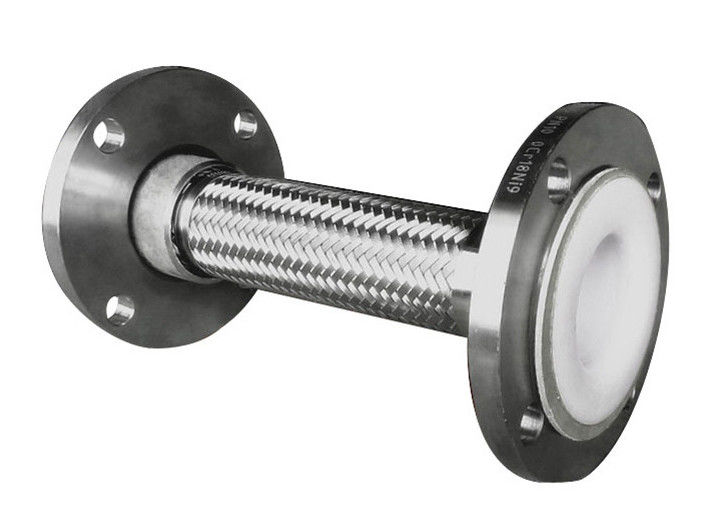

DN100 Braided Expansion Joint , High Pressure Expansion Joint Bend Easily High Bearing DN100 Braided Expansion Joint , High Pressure Expansion Joint Bend Easily High Bearing

Large Image :  DN100 Braided Expansion Joint , High Pressure Expansion Joint Bend Easily High Bearing

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20---500
Packaging Details: Wooden Box
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 Sets/Week
Detailed Product Description
Size: DN50----DN1000 Bellows Material: SS304,SS316,SS321
Flange Standard: DIN,BS,ANSI,JIS,AS Flange Material: Stainless Steel,Carbon Steel
High Light:

stainless braided hose

,

flexible hose connector



What is the features of our metal flexible hose?



1. Bend  easily and easy to install.

2. It is able to bear corrosion resistance and heat resistance strongly, stainless steel materials can be used safely for years .

3. Outside is covered with stainless steel wire braided ,have high bearing capacity.

4. Applied to repeated motion region in high-temperature areas, good anti-fatigue performance.

5. Diameter and length,welded on the end of hose can be produced as customer's requirement.a variety of end fitting configurations such as threaded(both NPT and BSP);fixed and floating flanges(stainless steel and carbon steel);welding neck connection and quick fittings.





DN100 Braided Expansion Joint , High Pressure Expansion Joint Bend Easily High Bearing 0



Inner Core: Corrugated Stainless Steel



Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel

Stainless steel tubing formed into corrugations parallel to one another

Helical / Convoluted option available upon request



Outer Core:Braided Stainless Steel Layers



Purchase corrugated core hose with no layers, single or double braided

Flexible metal hose outer braid layers made from 304 stainless steel



What is the condition of our metal flexible hose ?



Connection type

Flanged/threaded/quick coupling/welding

Hose material

Ss304/ss316/ss321

Diameter

DN6-DN700

Pressure

6bar-25bar

Temperature

-196℃~+600℃

Length

According to your request

Thickness

5mm-20mm



To properly design a metal hose assembly for a particular application, the following design parameters must be determinde:



1. Temperature-----You should provide us information as the temperature to which the assembly is exposed aproper fit.

2. Size-----The diameter of the connections in which the assembly will be installed is needed to provide.

3. Media-----This is improtant since you must be sure that the assembly's components are chemically compatible with the media going through the hose as well as the environment in which the hose is installed.

4. Pressure-----identify the internal pressure to which the assembly will be exposed. This information isimportant to determine if the assembly is strong enough for the application.

5. Indenify the necessary end fittings-----This is required since fittings for the assembly must be chosen toproperly fit the mating connection.



What is the parameter of our metal flexible hose?



Technical parameter of metal braided hose

Nominal

diameter DN

Inner diameter

(mm)

Outer diameter Minimum bending radius Working pressure
Bellows Braid mesh Static Dynamic Single braid mesh Double braid mesh
8 8.8 13.2 14.4 50 110 15 20
10 11.7 16.5 17.7 65 145 185 20
15 13.5 19.5 21.1 80 180 18 20
20 20.0 27 28.6 120 270 10 15
25 27.0 34.5 36.1 160 360 6.3 10
32 32.0 40 41.6 175 400 4.0 6.3
40 39.6 52 53.6 225 510 4.0 6.3
50 49.7 62 63.6 280 640 3.0 5.0
65 61.2 80.2 81.8 410 915 3.0 5.0
80 79.0 96.3 97.9 486 1030 3.0 5.0
100 101.2 119.6 121.2 610 1340 2.5 4.0
125 124.1 145.3 146.9 700 1540 2.5 4.0
150 149.4 180.8 182.4 810 1780 2.5 4.0
200 176.0 240 243.2 1000 2000 2.5 4.0
250 248.0 290 294 1250 2500 2.5 4.0
300 298.0 350 354 1500 3000 1.6 2.5
350 347.0 400 404.8 1750 3500 1.6 2.5
400 397.6 460 464.8 2000 4000 1.6 2.5
