| Size: | DN80----DN3000 | Material: | Carbon Steel,Stainless Steel |
|---|---|---|---|
| Working Pressure: | 0-6Mpa | Flange Standard: | DIN，ANSI，BS，JIS，AS |

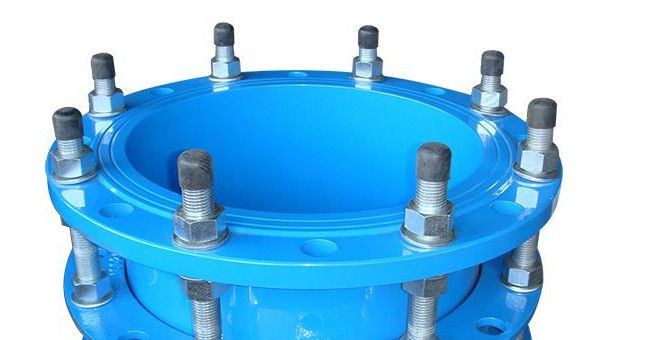

| High Light: | restrained dismantling joint,ductile iron dismantling joint |
||
|
Specification |
DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges. |
|
Standard |
ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295 |
|
Pressure |
300PSI, 500PSI, 750PSI, 1000PSI |
|
Pipe ends |
Spigot, socket or flanges. |
|
Internal coating |
Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating |
|
External coating |
Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer's requirements. |
|
Test |
In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test. |
|
Accessories |
NBR, SBR, EPDM rubber ring according to ISO4633 / EN681.1 are available. |
|
Application |
Municipal Use,Waterworks Pipelines,Piping Fittings,Water Engineering,Potable Water Use,Irrigation Use,Water Supply Project Use,Water Treatment Plants Use,Pumping Stations,Water Utility Sectors,Water-Supply Pressure Pipeline,Potable Water Pumping Station,Stormwater Lines,Fire Water Pumping Station,Fresh Water Pumping Station, ect. |
|
Types |
Dismantling Joint,Universal Flange Adaptor,Universal Coupling,Ductile Iron Loose Flange Joint,DI Pipe Fitting,Saddle for PVC Pipe,Repair Clamp,Qucick Flange Adaptor,Gibault Joint,Restrained Flange Adaptor,Restrained Coupling,Valve,etc. |
