Flexible Metal Compensator Corrugated Expansion Joint

Flexible Metal Compensator Corrugated Expansion Joint

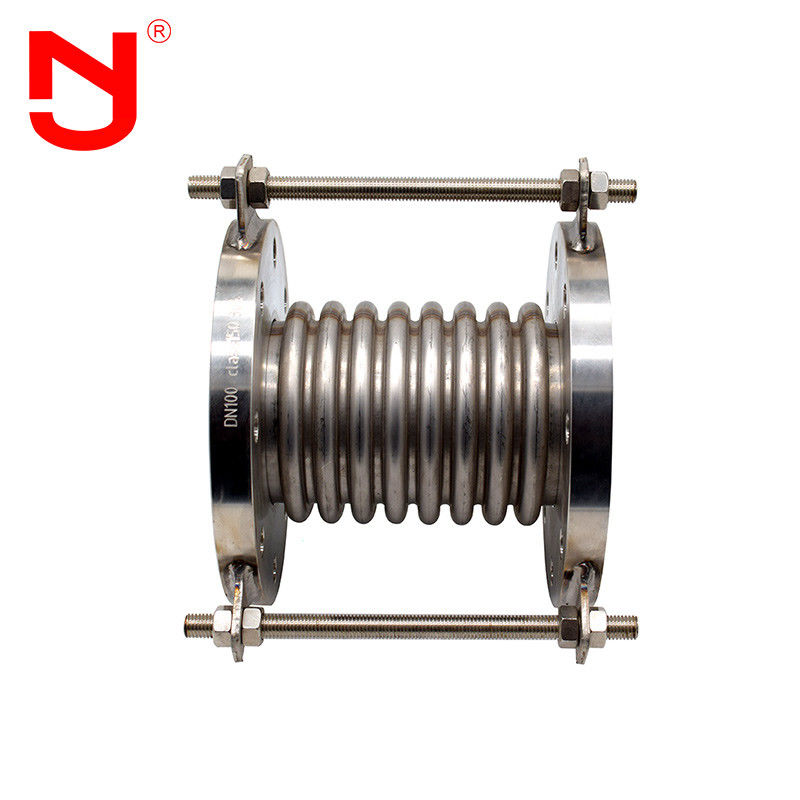

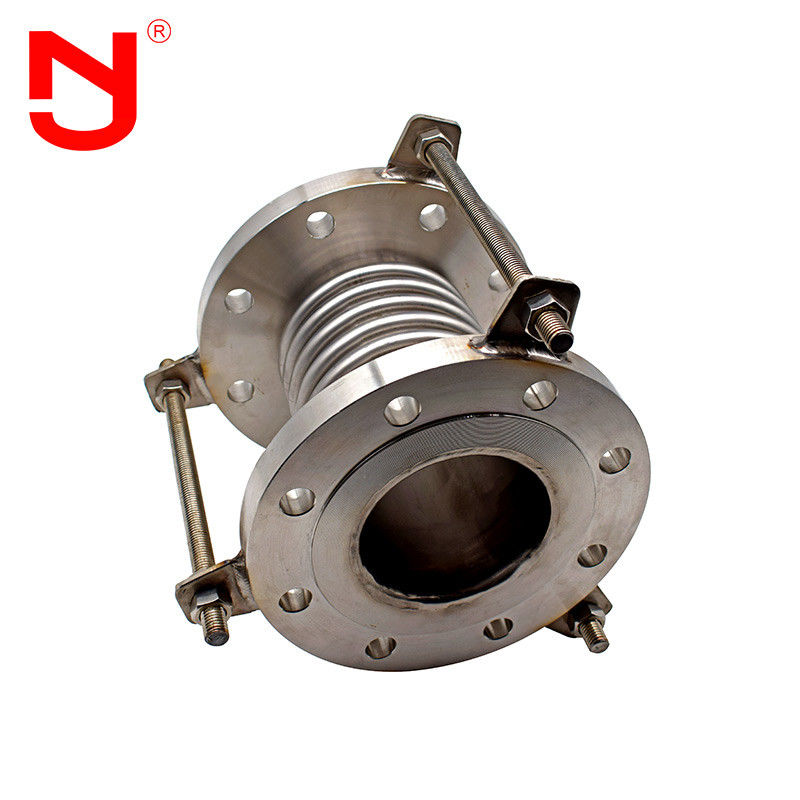

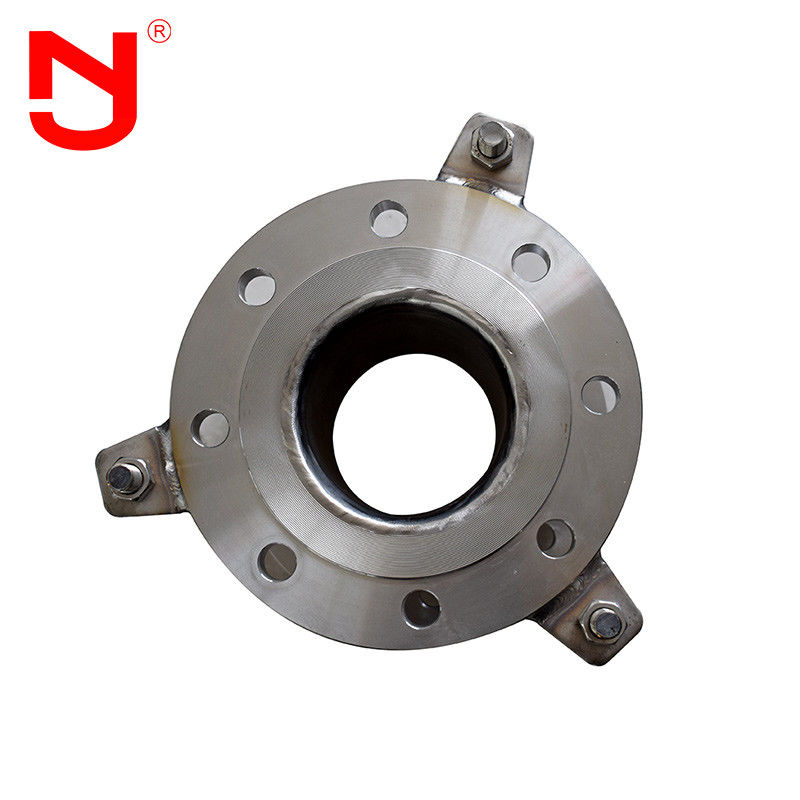

Flexible Metal Compensator Corrugated Expansion Joint Flexible Metal Compensator Corrugated Expansion Joint Flexible Metal Compensator Corrugated Expansion Joint Flexible Metal Compensator Corrugated Expansion Joint

Large Image :  Flexible Metal Compensator Corrugated Expansion Joint

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE、ZTC
Model Number: JDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Size: DN50---DN3000 Bellows Material: SS304,SS316,SS321
Flange Material: Stainless Steel,Carbon Steel Flange Standard: ANSI,DIN,BS,AS,JIS
Working Pressure: 0---6.0Mpa Shape: Equal
OEM&ODM: Support Company Type: Factory
High Light:

stainless steel expansion joint

,

stainless steel bellows

Flexible Metal Compensator Corrugated Expansion Joint



Metal compensator is a kind of flexible thin-wall transverse bellows expansion joint, which is composed of stainless steel bellows body, flange, limit rod and limit ear plate. Metal compensator, also known as metal bellows expansion joint, is a kind of prefabricated component for pipeline compensation, which is widely used in electric power engineering, petrochemical industry, heating, steel, urban construction and other industries. Its function is to compensate the power or connection between heat pipe network and mechanical equipment. The bellows expansion joint compensates the displacement of long pipeline system software or mechanical equipment caused by temperature difference (or molecular thermal movement) through axial expansion form or angle change, and eliminates the vibration of mechanical equipment under driving, parking or all normal operation standards, which can effectively reduce the pipeline deformation and improve the service life of the pipeline system. Metal bellows expansion joint can be processed into different models according to different needs.



Performance of metal compensator



1. Good compensation

2. High temperature resistance

3. Reduce leakage

4. Anti vibration and high speed performance

5. It can reduce the specific pressure of spring

6. Possible torque transfer

7. The sealing failure caused by scale can be reduced by certain structural design



Technique Parameter





Main data of metal compensator



Diameter
(mm)

Pressure grade
(Mpa)
Available Area of Bellows
(c㎡)

Max Size of External Diameter
(mm)

Length
(mm)


1.0

1.6

2.5

Flange
Tube
32
20/26
18/63
15/98
16
225
160/250
264/280
40
20/24
18/89
15/98
23
244
164/259
269/289
50
20/70
18/70
15/106
37
259
172/276
282/306
65
26/44
22/55
15/138
55
270
215/294
300/322
80
34/33
28/41
19/68
81
284
240/338
344/366
100
40/75
35/93
25/54
121
304
235/317
323/345
125
38/59
34/74
29/117
180
334
282/314
316/342
150
40/62
34/78
29/92
257
364
282/339
338/367
200
59/52
53/58
46/65
479
442
340/402
402/426
250
87/35
79/39
48/78
769
507
393/459
493/399
300
87/37
79/41
71/47
1105
562
464/525
564/565
350
87/44
79/48
71/45
1307
622
509/564
609/604
400
87/43
79/47
71/47
1611
562
522/566
622/628
450
87/37
79/41
47/75
1972
700
403/498
503/523
500
87/68
79/75
71/45
2445
760
431/523
531/554
600
87/85
79/94
71/82
3534
835
478/548
578/588
700
87/77
79/85
71/103
4717
1110
490
590
800
102/102
94/112
71/95
5822
1265
502
602
900
102/97
94/107
80/123
7620
1186
/
698
1000
102/105
94/106
82/117
9043
1286
/
692



Production process of metal compensator



Do you know how is a high quality metal compensator made?Let's see with JINGNING.

Flexible Metal Compensator Corrugated Expansion Joint 0

Jingning has more than 17 years of design experience in the manufacturing of rubber expansion joint, metal expansion joint, disassembly joint, pipeline and other industrial pipe fittings. The metal expansion joints meet the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.



Product advantages



1.Factory price

2.17years of manufacturing experience, 5 years of export experience

3.Strict quality inspection, the quality far exceeds the industry standard.

4.Mold a variety of specifications, support customization, OEM

5.Provide free samples

6.Large inventory



Application



Application of metal compensator

1. Deformation and pipeline with large deformation and limited spatial position.

2. Large diameter pipeline with large deformation and displacement and low working pressure.

3. Devices that need to limit take over loads.

4. It is required to absorb or isolate high frequency mechanical vibration.

5. The pipeline required to absorb earthquake or foundation settlement.



FAQ



Q1. Can I get free samples?
A1: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

Q2. Can I request to change the form of packaging and transportation?
A2: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

Q3. Can I request to advance the shipment?
A3: It should be depends on whether there is sufficient inventory in our warehouse.

Q4. Can I have my own Logo on the product?
A4: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

Q5. Can you produce the products according to my own drawings?
A5: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q6. Which price terms could accepted?
A6: FOB,CIF all acceptable.
