Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE
Model Number:
RFJD
Contact Us
Video
Video
Video

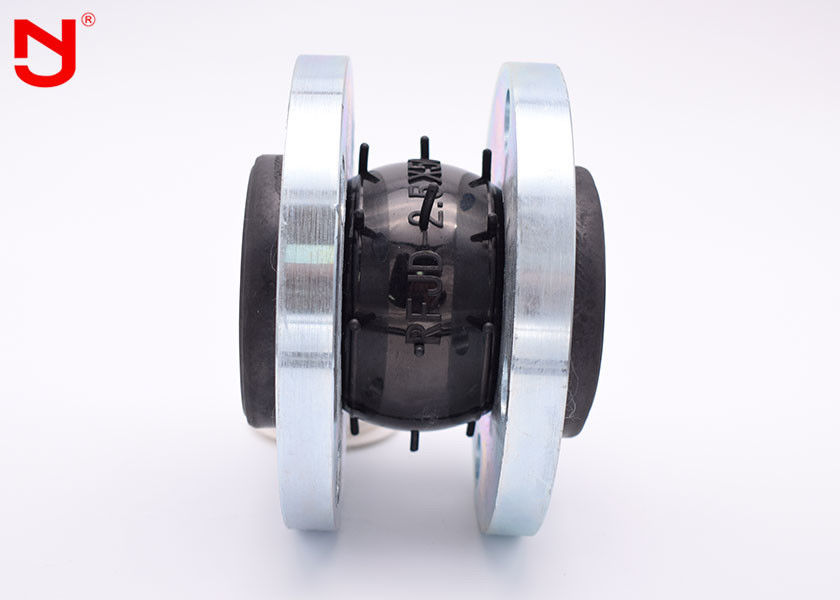

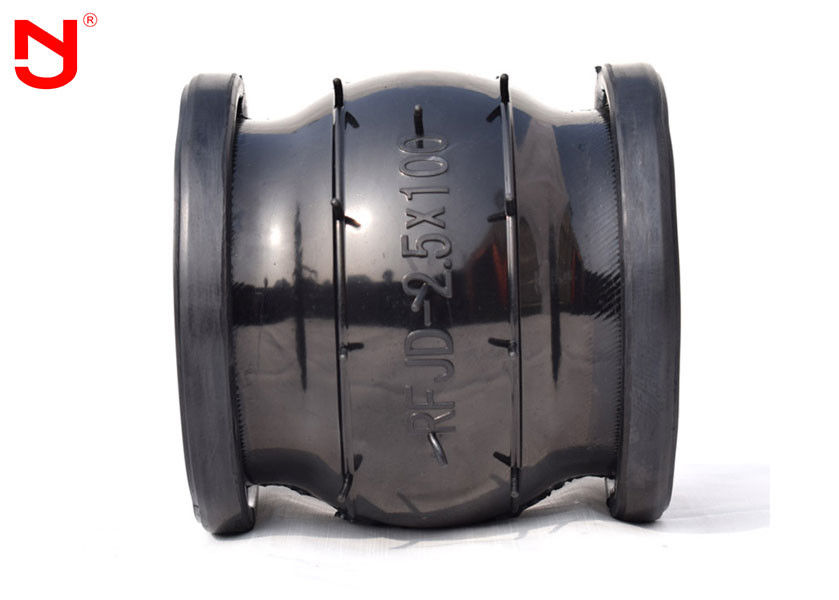

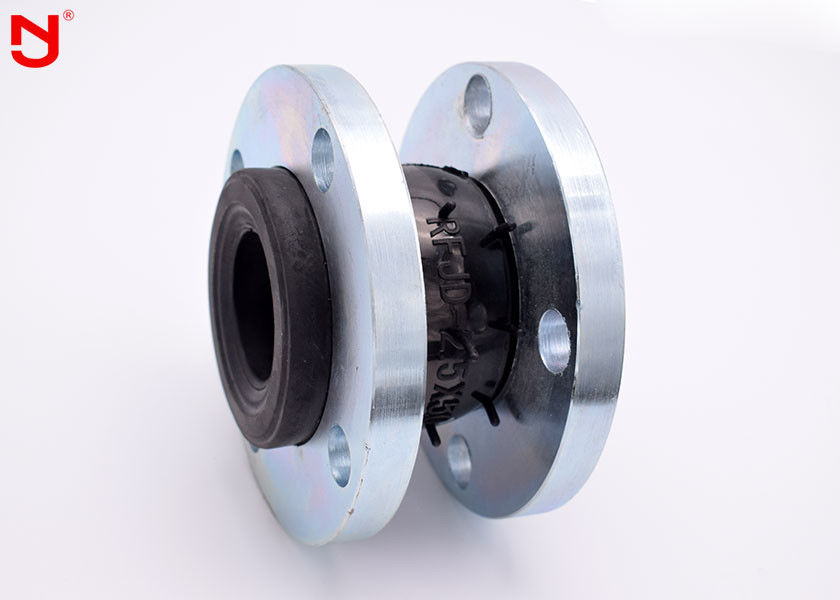

Product Description
For pipe construction, you will need expansion joints – to absorb thermal expansion, to reduce vibration and noise.Our ‘JINGNING’ expansion joints have reliably performed these tasks since 2004.
All of Jingning's rubber expansion joints safety ratings exceeding product specifications in such areas as pressure and movement.
An expansion joint is a specially engineered product inserted in a rigid
piping system to achieve one or more of the following:
» Absorb movement
» Relieve system strain due to thermal change, load stress, pumping surges, wear or settling
» Reduce mechanical noise
» Compensate for misalignment
» Eliminate electrolysis between dissimilar metals
| GENERAL CHARACTRISTICS | |
| Nominal Diameter | DN15-DN3000 |
| Working Pressure | PN6-PN25 |
| Working Temperature | -20℃-140℃ |
| Working Medium | Water,Oil,Acid,Alkali |
Part of technical data
|
Main data of rubber expansion joint
|
||||||
|
Nominal diameter(DN)
|
Length
|
Axial displacement(mm)
|
Horizontal displacement
|
Deflexion angle
|
||
|
mm
|
inch
|
mm
|
Extension
|
Compression
|
mm
|
(a1+a2)°
|
|
32
|
1 1/4
|
95
|
6
|
9
|
9
|
15°
|
|
40
|
1 1/2
|
95
|
6
|
10
|
9
|
15°
|
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
|
65
|
2 1/2
|
115
|
7
|
13
|
11
|
15°
|
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
|
600
|
24
|
260
|
16
|
25
|
22
|
15°
|
NOTES:Dimensions are expressed in mm, and subjected to manufacturing tolerances. Data can be altered without notice by our Design Department for the product benefit.* The stated movements are solely valid with the joint subject to a single movement direction. Values are proportionally reduced along with the movement combination.* Given tolerance installed and movements allowed are valid for rubber bellows. For bellows with PTFE sleeve, values must be reduced by 1/2.* Increasing temperatures reduce the permissible movements capacity and number of cycles. Dimensions are expressed in mm
Flexible rubber joints can be manufactured from a range of elastomer materials including:
»Chloro Butyl »EPDM
»Hypalon »Natural
»Neoprene »Nitrile (Buna-N)
The joints may consist entirely of the one type of rubber or a combination with one type of rubber as the inner ply and a different rubber as the outer cover.
We will select the appropriate rubber grade for your application from a wide variety of different blends depending on the composition of the medium and the operating temperature.
Advantages
Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
