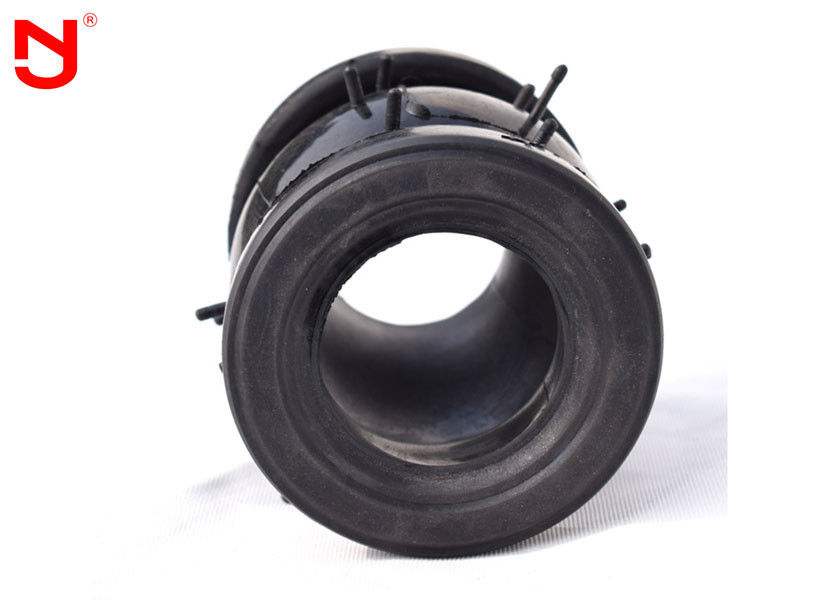

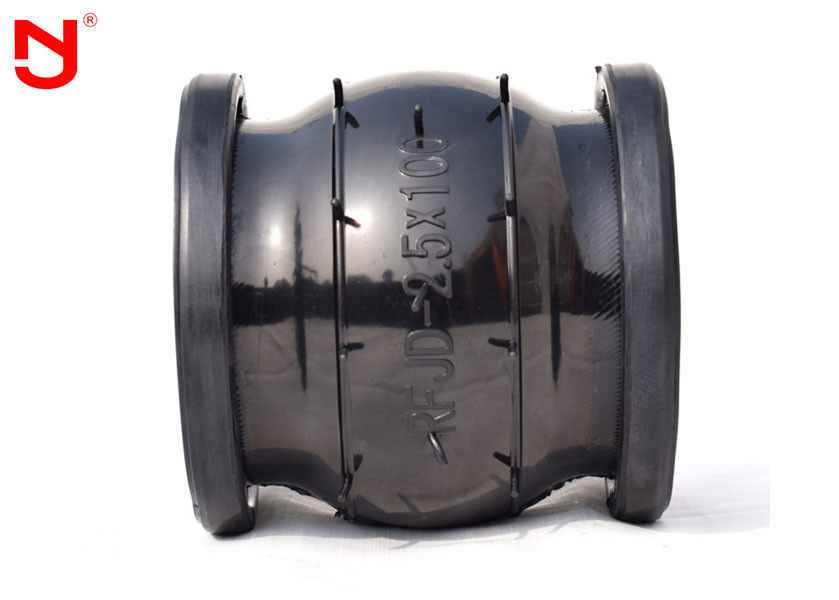

High Safety Industrial Expansion Joints , Epdm Expansion Joint DIN ANSI JIS Flange Standard

High Safety Industrial Expansion Joints , Epdm Expansion Joint DIN ANSI JIS Flange Standard

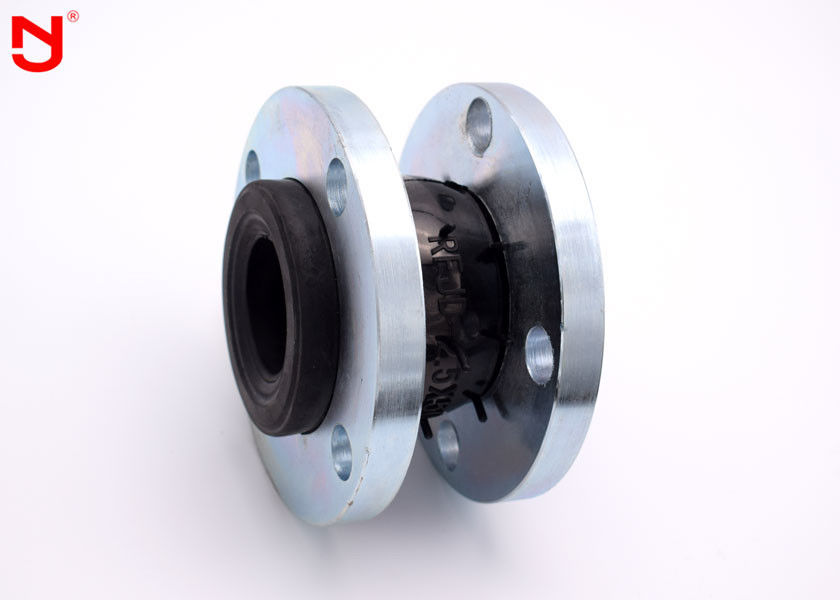

flanged rubber expansion joint

rubber bellows expansion joints

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

RFJD

Contact Us

Request A Quote
Product Details
Size:
DN32---DN3000
Material:
EPDM,NBR,SBR
Flange Standard:
DIN,ANSI,JIS
Working Pressure:
PN6,PN10,PN16,PN25
Working Medium:
Water,Seawater,Acid,Oil,Alkali
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 10--2000
Packaging Details
carton or wooden
Delivery Time
5--15 working days
Payment Terms
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability
10000 sets per week
Product Description

Product Description



For pipe construction, you will need expansion joints – to absorb thermal expansion, to reduce vibration and noise.Our ‘JINGNING’ expansion joints have reliably performed these tasks since 2004.

All of Jingning's rubber expansion joints safety ratings exceeding product specifications in such areas as pressure and movement.






 Click to learn more about JINGNING



Introduction



An expansion joint is a specially engineered product inserted in a rigid

piping system to achieve one or more of the following:
    »  Absorb movement
    » Relieve system strain due to thermal change, load stress, pumping surges, wear or settling
    »  Reduce mechanical noise
    »  Compensate for misalignment
    »  Eliminate electrolysis between dissimilar metals







                   GENERAL CHARACTRISTICS

Nominal Diameter

DN15-DN3000

Working Pressure

PN6-PN25

Working Temperature

-20℃-140℃

Working Medium

Water,Oil,Acid,Alkali





Part of technical data



Main data of rubber expansion joint

Nominal diameter(DN)

Length

Axial displacement(mm)

Horizontal displacement

Deflexion angle

mm

inch

mm

Extension

Compression

mm

(a1+a2)°

32

1 1/4

95

6

9

9

15°

40

1 1/2

95

6

10

9

15°

50

2

105

7

10

10

15°

65

2 1/2

115

7

13

11

15°

80

3

135

8

15

12

15°

100

4

150

10

19

13

15°

125

5

165

12

19

13

15°

150

6

180

12

20

14

15°

200

8

210

16

25

22

15°

250

10

230

16

25

22

15°

300

12

245

16

25

22

15°

350

14

255

16

25

22

15°

400

16

255

16

25

22

15°

450

18

255

16

25

22

15°

500

20

255

16

25

22

15°

600

24

260

16

25

22

15°

NOTES:Dimensions are expressed in mm, and subjected to manufacturing tolerances. Data can be altered without notice by our Design Department for the product benefit.* The stated movements are solely valid with the joint subject to a single movement direction. Values are proportionally reduced along with the movement combination.* Given tolerance installed and movements allowed are valid for rubber bellows. For bellows with PTFE sleeve, values must be reduced by 1/2.* Increasing temperatures reduce the permissible movements capacity and number of cycles.   Dimensions are expressed in mm



About rubber materials



Flexible rubber joints can be manufactured from a range of elastomer materials including:



          »Chloro Butyl            »EPDM

          »Hypalon                  »Natural

          »Neoprene               »Nitrile (Buna-N)


The joints may consist entirely of the one type of rubber or a combination with one type of rubber as the inner ply and a different rubber as the outer cover.

We will select the appropriate rubber grade for your application from a wide variety of different blends depending on the composition of the medium and the operating temperature.



Advantages



Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
