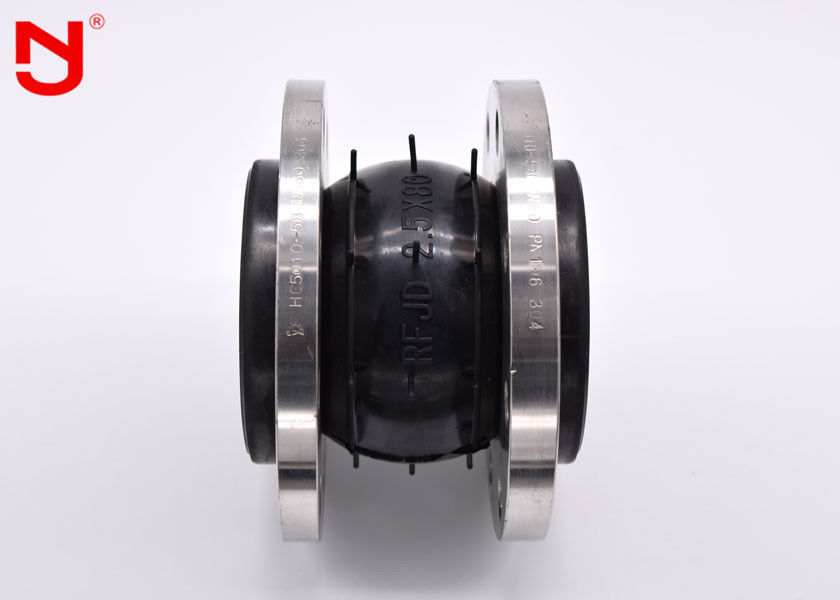

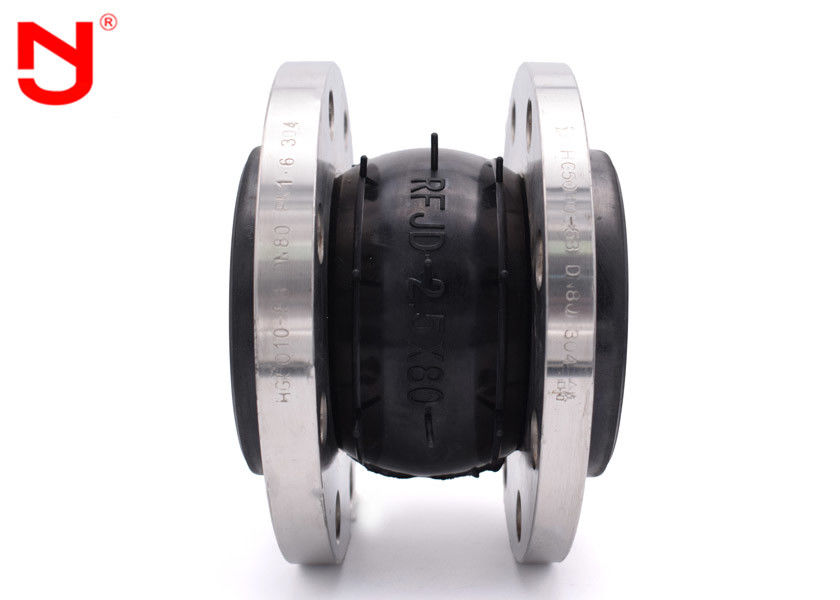

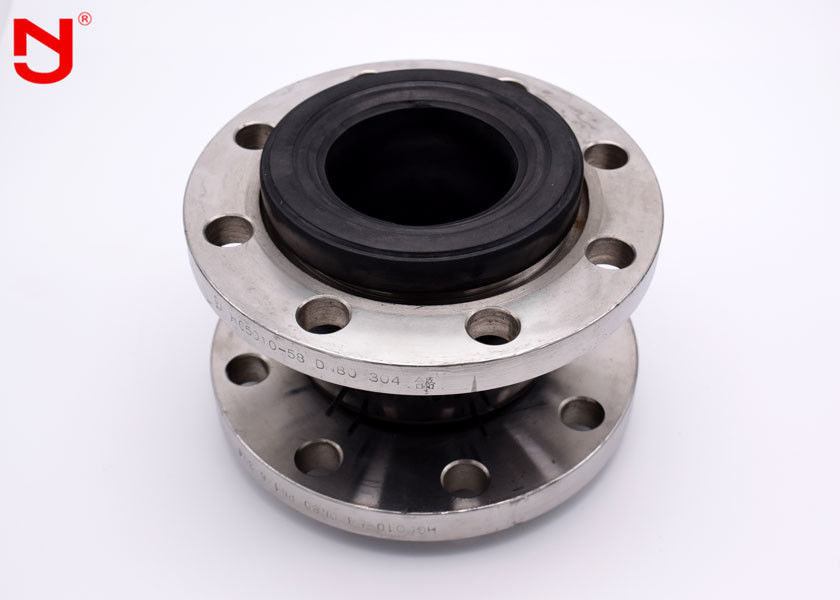

ANSI DIN Single Sphere Rubber Expansion Joint Stainless Steel Material CE Certified

ANSI DIN Single Sphere Rubber Expansion Joint Stainless Steel Material CE Certified

rubber bellows expansion joints

epdm expansion joint

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

RFJD

Contact Us

Request A Quote
Product Details
Size:
DN32---DN3000
Material:
EPDM,NBR,SBR
Flange Standard:
DIN,ANSI,JIS
Working Pressure:
PN6,PN10,PN16,PN25
Working Medium:
Water,Seawater,Acid,Oil,Alkali
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 10--2000
Packaging Details
carton or wooden
Delivery Time
5--15 working days
Payment Terms
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability
10000 sets per week
Product Description
Product Description

For pipe construction, you will need expansion joints – to absorb thermal expansion, to reduce vibration and noise.Our ‘JINGNING’ expansion joints have reliably performed these tasks since 2004.

All of Jingning's rubber expansion joints safety ratings exceeding product specifications in such areas as pressure and movement.


Introduction



An expansion joint is a specially engineered product inserted in a rigid

piping system to achieve one or more of the following:
    »  Absorb movement
    » Relieve system strain due to thermal change, load                  stress,    pumping surges, wear or settling
    »  Reduce mechanical noise
   »  Compensate for misalignment
   »  Eliminate electrolysis between dissimilar metals


                   GENERAL CHARACTRISTICS
Nominal Diameter DN15-DN3000
Working Pressure PN6-PN25
Working Temperature -20℃-140℃
Working Medium Water,Oil,Acid,Alkali
Part of technical data
Main data of rubber expansion joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°

NOTES:

Dimensions are expressed in mm, and subjected to manufacturing tolerances. Data can be altered without notice by our Design Department for the product benefit.

* The stated movements are solely valid with the joint subject to a single movement direction. Values are proportionally reduced along with the movement combination.
* Given tolerance installed and movements allowed are valid for rubber bellows. For bellows with PTFE sleeve, values must be reduced by 1/2.
* Increasing temperatures reduce the permissible movements capacity and number of cycles.
  Dimensions are expressed in mm
About rubber materials
Flexible rubber joints can be manufactured from a range of elastomer materials including:
          »Chloro Butyl            »EPDM
          »Hypalon                  »Natural
          »Neoprene               »Nitrile (Buna-N)
The joints may consist entirely of the one type of rubber or a combination with one type of rubber as the inner ply and a different rubber as the outer cover.

We will select the appropriate rubber grade for your application from a wide variety of different blends depending on the composition of the medium and the operating temperature.

Advantages

Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
