Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection

Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection
Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection

Large Image :  Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: RLJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton or Wooden
Detailed Product Description
Size: DN15 ---DN80 Rubber Material: EPDM,NBR
Union Standard: BSPT,NPT Union Material: SUS304,SUS316,Malleable Iron
Connection: Female Company Type: Factory
Color: Black Length: 200mm-270mm
Product Name: Rubber Connector
High Light:

pipework expansion joints

,

rubber flexible connector

EPDM Thread-Connection expansion joint for high vibration absorbing ability



The form: this product consists of rubber pipe ,made of inner glue ,multi-layer proofinf and cord fabric and outer glue abd metal woggle joint .
It is applicable for the connection of inlet and outlet pipes of various fancoil sets of air conditionings in the guest rooms of hotels and restaurants.



According to different media, rubber materials are also different, including natural rubber, styrene butadiene rubber, butyl rubber, nitrile rubber,Ethylene Propylene Diene Monomer, neoprene rubber, silicone rubber, fluorine rubber and so on. It has the characteristics of heat-resistant, acid resistant, alkali resistant, corrosion resistant, wear-resistant, oil resistant and so on.
according to the work pressure:
Six grades of 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa and 6.4MPa.

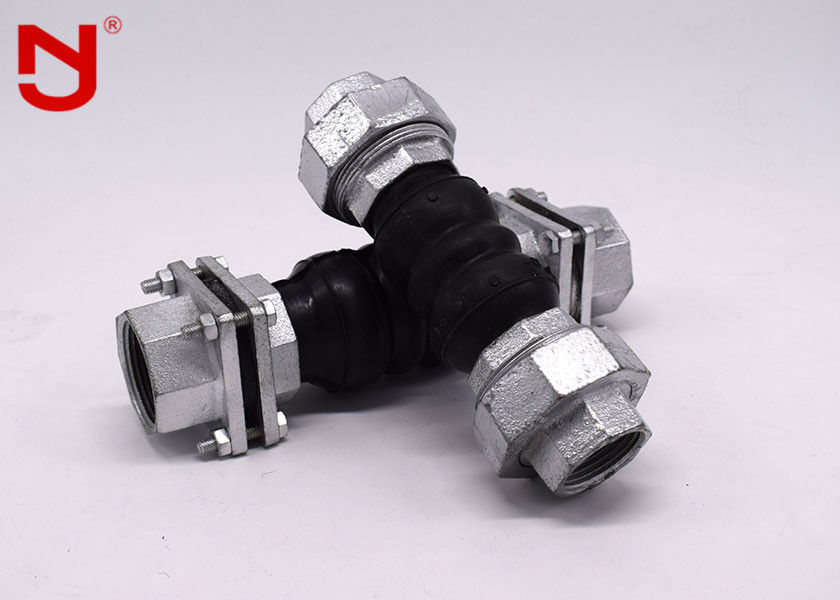

Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection 0

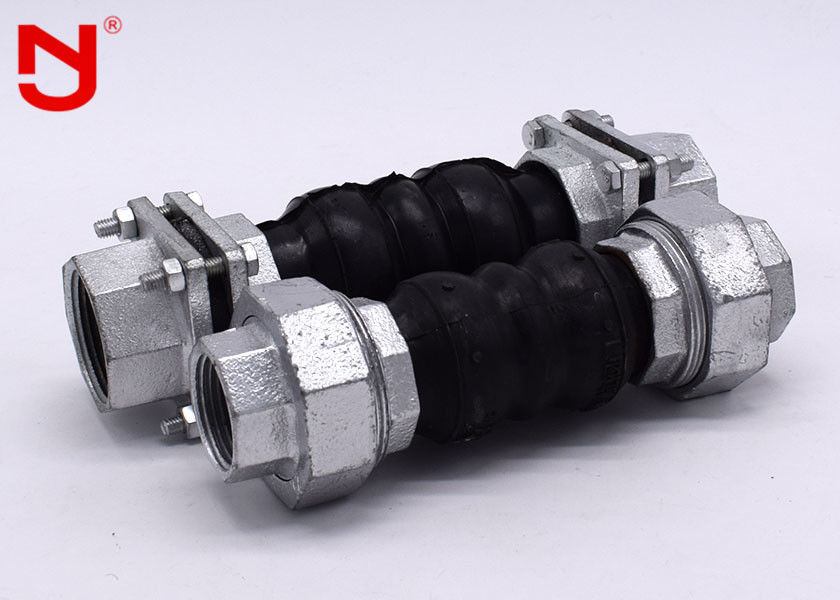

Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection 1

Threaded union rubber expansion joint Advantage:


A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.

B:Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.

C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.



Product Details

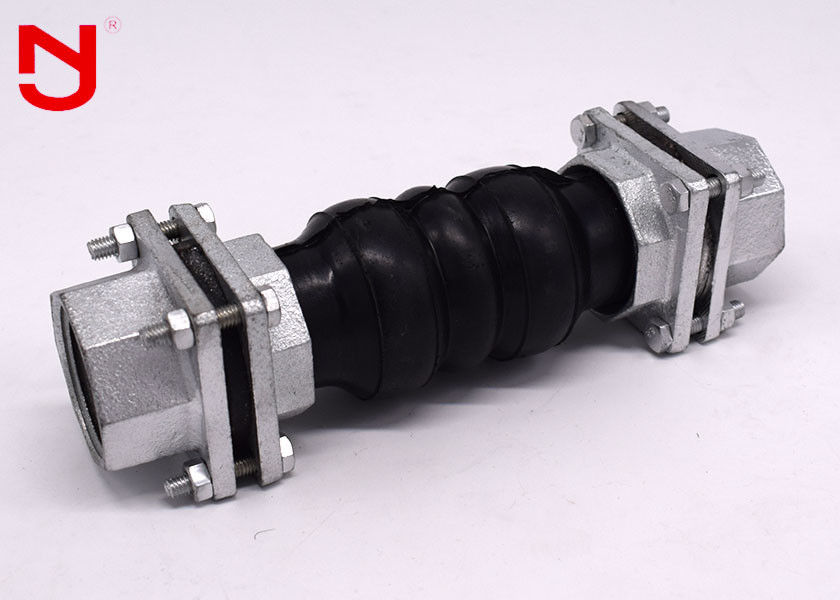

Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection 2

EPDM Thread-Connection expansion joint for high vibration absorbing ability can be customized DN15-DN80.

EPDM Thread-Connection expansion joint for high vibration absorbing ability after surface and treatment and inspection of finished products.



EPDM Thread-Connection expansion joint for high vibration absorbing ability

1.All expansion joints are finshed with retaining flanges,limit rod units are available on special request.
2.Pressures shows are recommended“operating”,test pressure is 1.5time“operating”,burst pressure is 3 time “operating”.
3.Vacuum rating is based on neutral installed length without external load.Products shall not be installed “elongated”on vacuum applications.
4.Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.
Huayuan Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design ,
construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Huayuan technical service directly.

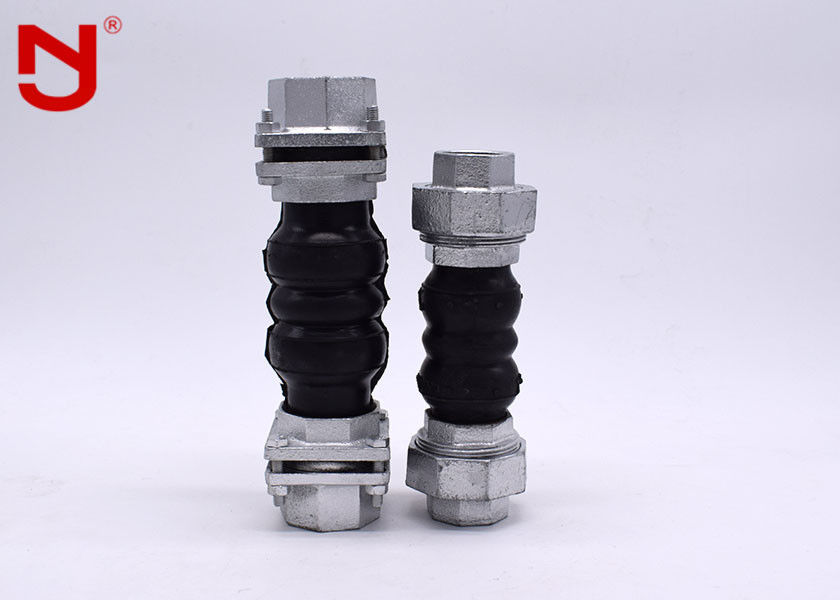

Twin Sphere Rubber Flexible Joint , Flexible Bellow Expansion Joint Female Connection 3
