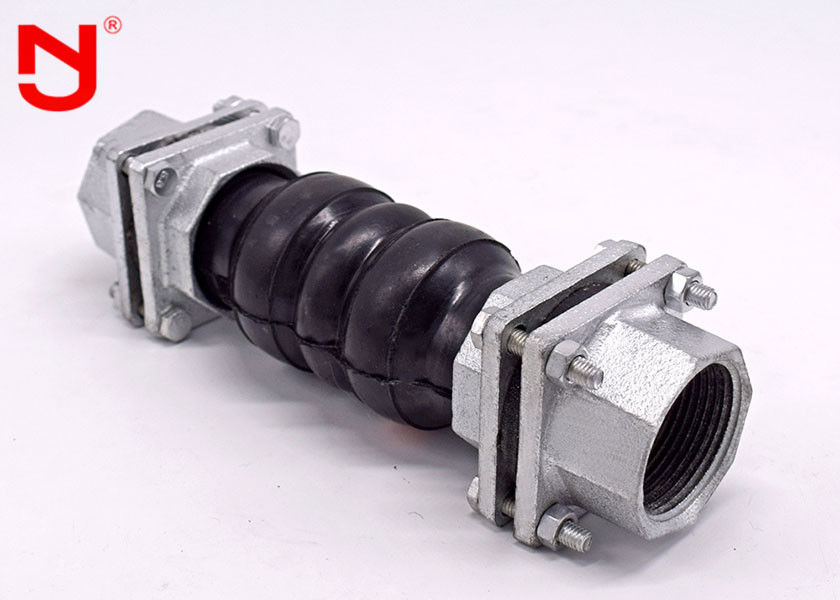

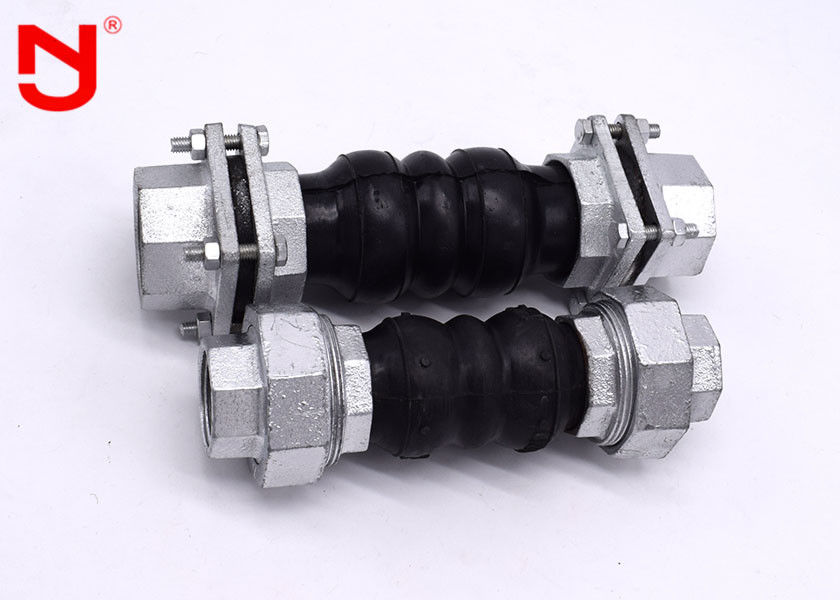

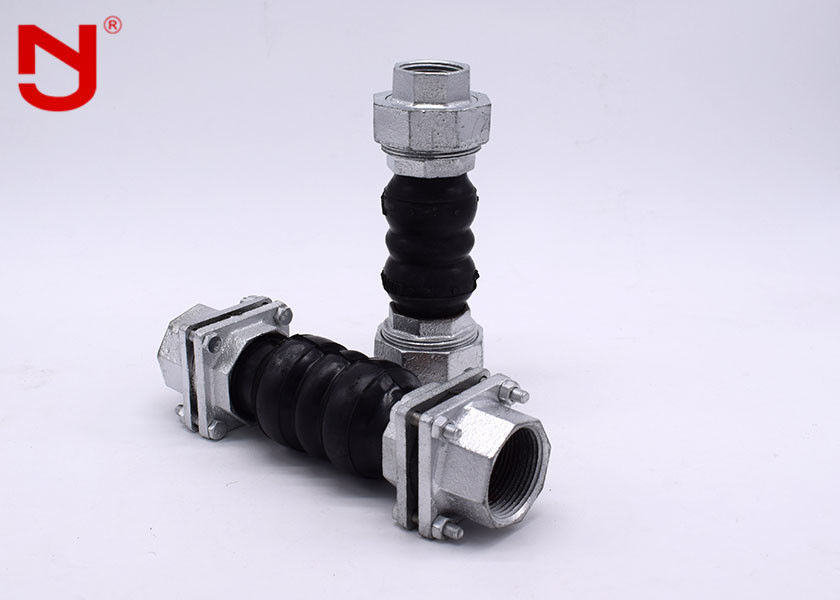

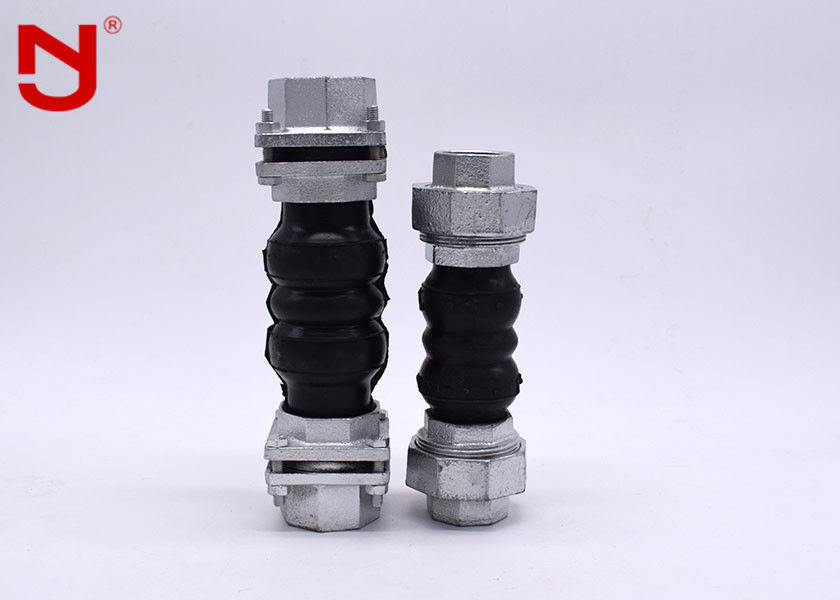

DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight

DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight
DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight

Large Image :  DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: RLJS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton or Wooden
Detailed Product Description
Size: DN15 ---DN80 Rubber Material: EPDM,NBR
Union Standard: BSPT,NPT Union Material: SUS304,SUS316,Malleable Iron
Temperature: -20~110 ℃ Company Type: Manufacturer
Length: 200mm-270mm Product Name: Rubber Expansion Joint
High Light:

pipework expansion joints

,

high temperature expansion joint

Hot sale agent discount BSPT NPT threaded rubber expansion joint



Rubber joint is a kind of hollow rubber product used for flexible connection between metal pipes
Rubber soft joint products are widely used in water, electricity, chemical industry and ship mooring systems, with high pressure resistance, good elasticity (axial and lateral angular displacement), noise reduction, light quality, vibration reduction, easy installation, flexible use and easy dismantling and repair, as well as acid, alkali resistance and oil resistance.



1. All expansion joints are finshed with retaining flanges,limit rod units are available on special request.
2. Pressures shows are recommended“operating”,test pressure is 1.5time“operating”,burst pressure is 3 time “operating”.
3. Vacuum rating is based on neutral installed length without external load.Products shall not be installed “elongated”on vacuum applications.
4. Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.


Huayuan Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design ,
construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Huayuan technical service directly.



DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight 0



According to different media, rubber materials are also different, including natural rubber, styrene butadiene rubber, butyl rubber, nitrile rubber,Ethylene Propylene Diene Monomer, neoprene rubber, silicone rubber, fluorine rubber and so on. It has the characteristics of heat-resistant, acid resistant, alkali resistant, corrosion resistant, wear-resistant, oil resistant and so on.
according to the work pressure:
Six grades of 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa and 6.4MPa.



DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight 1



Threaded union rubber expansion joint Advantage:


A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.
B:Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.
C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.



Product Details

DN15-DN80 Threaded Expansion Joint 200mm-270mm Length Adjustable Lightweight 2



EPDM hread-Connection expansion joint for high vibration absorbing ability can be customized DN15-DN80.

EPDM Thread-Connection expansion joint for high vibration absorbing ability after surface and treatment and inspection of finished products.
