Professional EPDM Rubber Expansion Joint 200mm BSPT NPT Union Standard

Professional EPDM Rubber Expansion Joint 200mm BSPT NPT Union Standard

pipework expansion joints

high temperature expansion joint

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

RLJS

Contact Us

Request A Quote
Product Details
Size:
1/2"~3"
Rubber Material:
EPDM,NBR
Union Standard:
BSPT,NPT
Union Material:
Malleable Iron
Temperature:
-20~110 ℃
Company Type:
Factory
Length:
200mm
Product Name:
EPDM Rubber Joint
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton or Wooden
Product Description

Professional manufacturer threaded type rubber expansion joint

Screw thread rubber Flexible Expansion Joint , also known as flexible joint, rubber expansion joint, rubber flexible joint, pipe expansion joint, soft rubber joint etc.

We introduce advanced technology from abroad, and combine it with Chinese production experience. In the manufacturing operation, the inner side endures high pressure; nylon cord fabrics and the inner rubber are better combined and can work under higher pressure than normal flexible rubber joint. Its characteristics are that the inner adhesive layer united perfectly, bright, clean and seamless; the tag adopts the vulcanization process, perfectly matches the product.

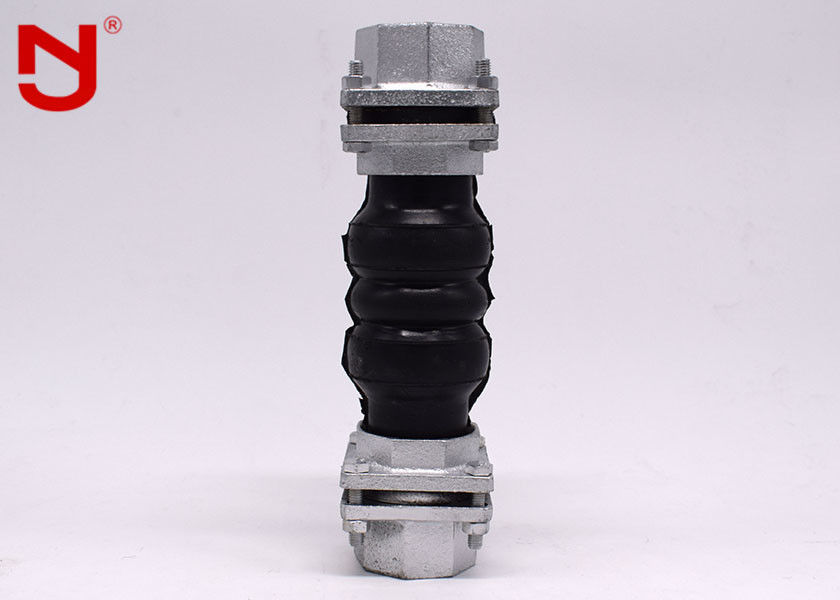

Professional EPDM Rubber Expansion Joint 200mm BSPT NPT Union Standard 0

According to different media, rubber materials are also different, including natural rubber, styrene butadiene rubber, butyl rubber, nitrile rubber,Ethylene Propylene Diene Monomer, neoprene rubber, silicone rubber, fluorine rubber and so on. It has the characteristics of heat-resistant, acid resistant, alkali resistant, corrosion resistant, wear-resistant, oil resistant and so on.
according to the work pressure:
Six grades of 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa and 6.4MPa.

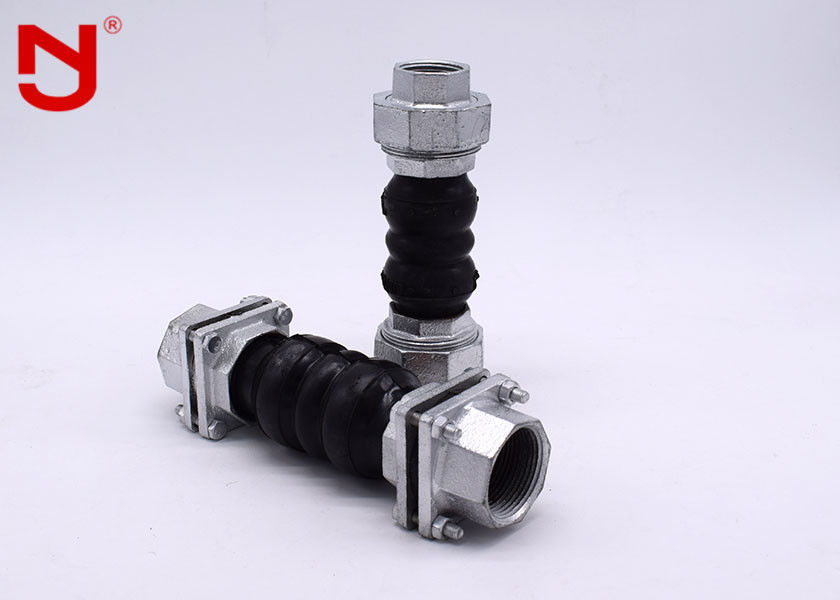

Professional EPDM Rubber Expansion Joint 200mm BSPT NPT Union Standard 1

Threaded union rubber expansion joint Advantage:


A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.

B:Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.

C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.



Product Details

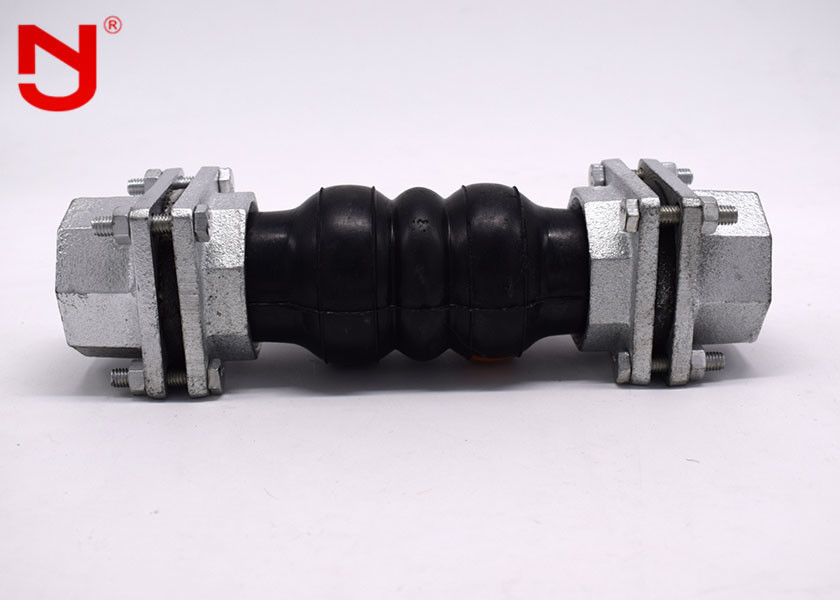

Professional EPDM Rubber Expansion Joint 200mm BSPT NPT Union Standard 2

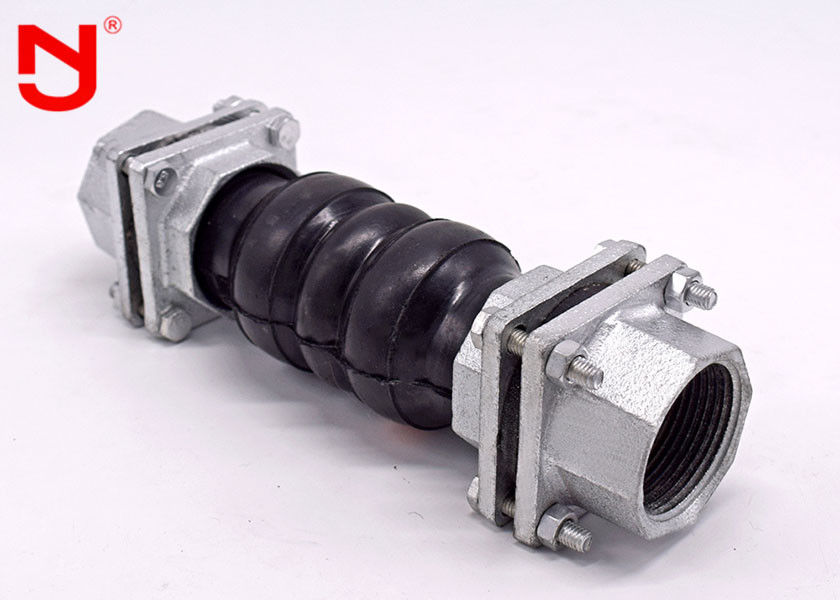

Professional EPDM Rubber Expansion Joint 200mm BSPT NPT Union Standard 3

Professional EPDM Rubber Expansion Joint 200mm BSPT NPT Union Standard 4

EPDM Thread-Connection expansion joint for high vibration absorbing ability can be customized DN15-DN80.

EPDM Thread-Connection expansion joint for high vibration absorbing ability after surface and treatment and inspection of finished products.



EPDM Thread-Connection expansion joint for high vibration absorbing ability

1.All expansion joints are finshed with retaining flanges,limit rod units are available on special request.
2.Pressures shows are recommended“operating”,test pressure is 1.5time“operating”,burst pressure is 3 time “operating”.
3.Vacuum rating is based on neutral installed length without external load.Products shall not be installed “elongated”on vacuum applications.
4.Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.
Huayuan Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design ,
construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Huayuan technical service directly.
