OEM ODM Metal Expansion Joint , Stainless Steel Bellows Expansion Joint

OEM ODM Metal Expansion Joint , Stainless Steel Bellows Expansion Joint

stainless steel expansion joint

stainless steel bellows

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

JDZ

Contact Us

Request A Quote
Product Details
Size:
DN50---DN3000
Bellows Material:
SS304,SS316,SS321
Flange Material:
Stainless Steel,Carbon Steel
Flange Standard:
ANSI,DIN,BS,AS,JIS
Working Pressure:
0---6.0Mpa
OEM&ODM:
Yes
Certificate:
ISO9001,CE
Product Name:
Stainless Steel Expansion Joints
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

Stainless Steel Metal Bellows Compensator Pipe Expansion Joint

Axial internal pressure type corrugated compensator, or axial internally pressurized expansion joint is a kind of corrugated compensator. It is an equipment to compensate dimensional change caused by thermal expansion or mechanical vibration of pipeline/conduit/vessel through corrugated compensator's elastic component. Based on above, it can decrease the deforming stress on pipeline and increase service life of pipeline.



Structural material: The corrugated compensator can be made of metal and nonmetal. Usually, the material of metal one include austenitic stainless steel, corrosion resistant alloy & etc. while nonmetal one include PTFE, rubber and composite material.



Wall thickness: Refer to the wall thickness, there are thick-wall corrugated compensator and thin-wall corrugated compensator. The thick one is mostly used for pressure vessel to compensate vessel's own thermal deformation. In view of its little compensation dosage, only 1~2 waves needed with wall thickness in 3~22mm generally. For the thin one, corrugated compensator is used in the flexible part of pipeline. Its monolayer thickness is less than 3mm(The thickness of most stainless steel is 0.2~3mm). Since corrugated compensator used in pipeline requires compensation dosage as much as possible, wall thickness should be reduced in max to get higher flexibility under premise of satisfying pressure-bearing. Considering environmental corrosion, most corrugated compensator are made of stainless steel. If higher pressure-bearing is requested, thin wall multilayer stainless steel structure could be better.

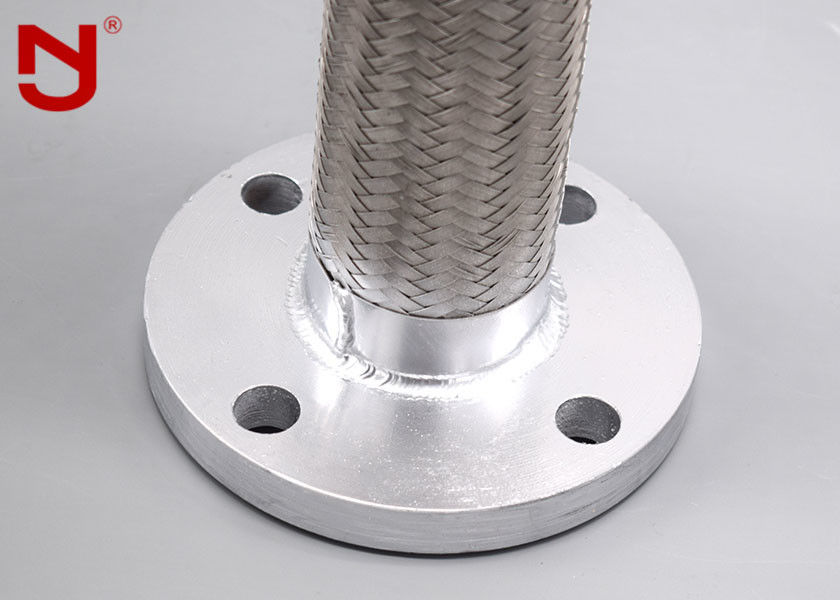

OEM ODM Metal Expansion Joint , Stainless Steel Bellows Expansion Joint 0

Products Features:

  • The compensator&metal expansion joints are used in a wide variety of piping application tocompensate for thermal expansion or contraction and to absorb equipment vibration or pipe motions.

  • We manufacture single, two-ply and multiply testable bellows in different sizes using precision forming technology.

  • They are used as an retractable elastic compensation element, has the advantages of thereliable working,good performance,compact structure.

  • The compensator&Metal expansion joints absorb movement in piping caused by theraml changes.

  • Durability and excellent chemical resistance.

  • Widely used to absorb termal expansion in pipe systems carring water, steam, oil and gases

  • Bellows are stainless steel with welding flanges,fixed or floating.

  • Stainless bellows compensators or expansion joints are designed according to the client'sspecifications ad design conditions

  • Control rods available ,as required.

  • Standard sizes range from 2" through 84".

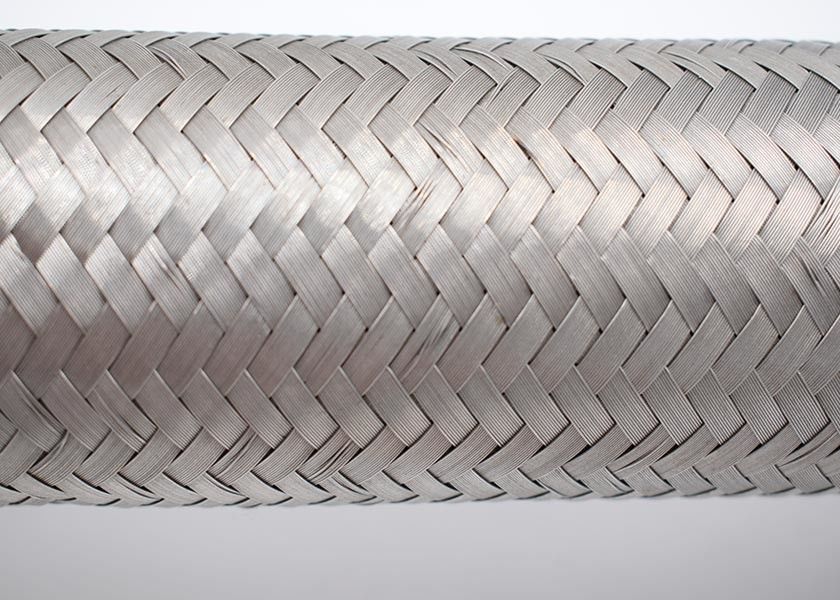

 OEM ODM Metal Expansion Joint , Stainless Steel Bellows Expansion Joint 1

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
