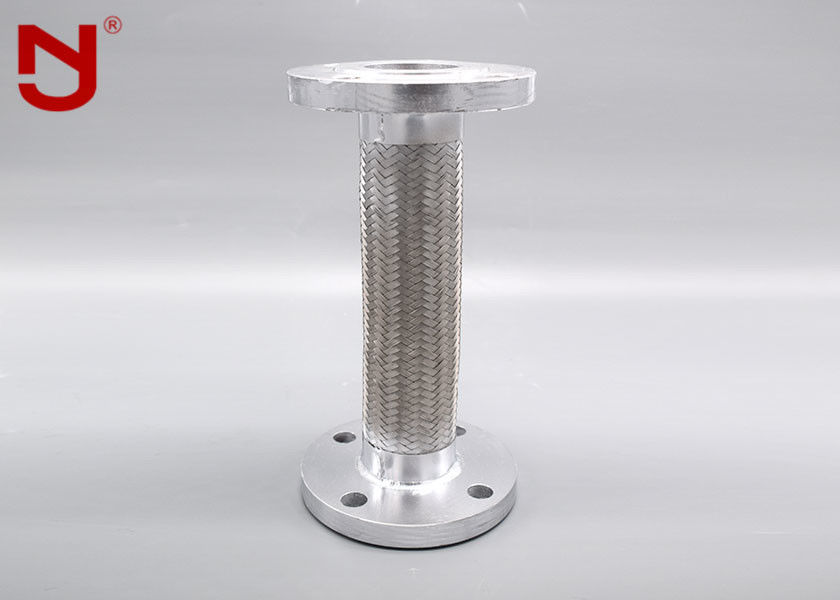

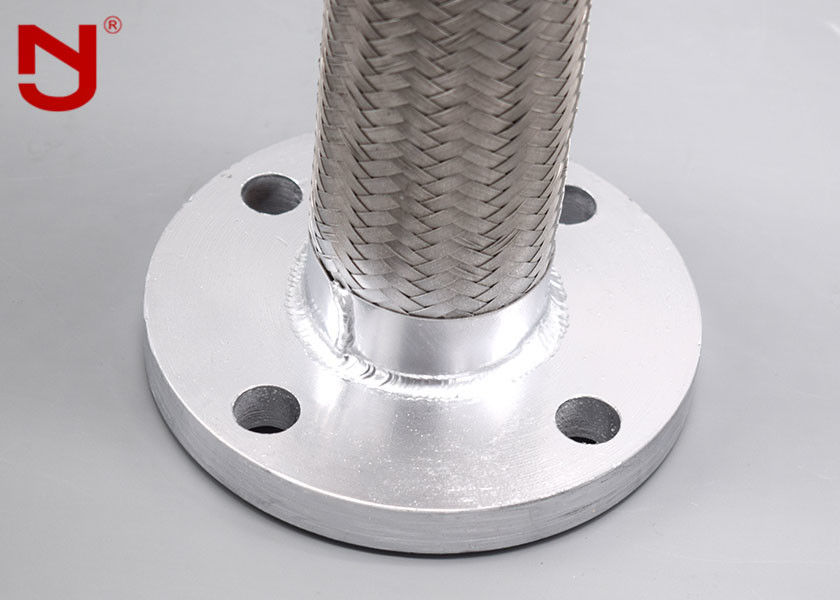

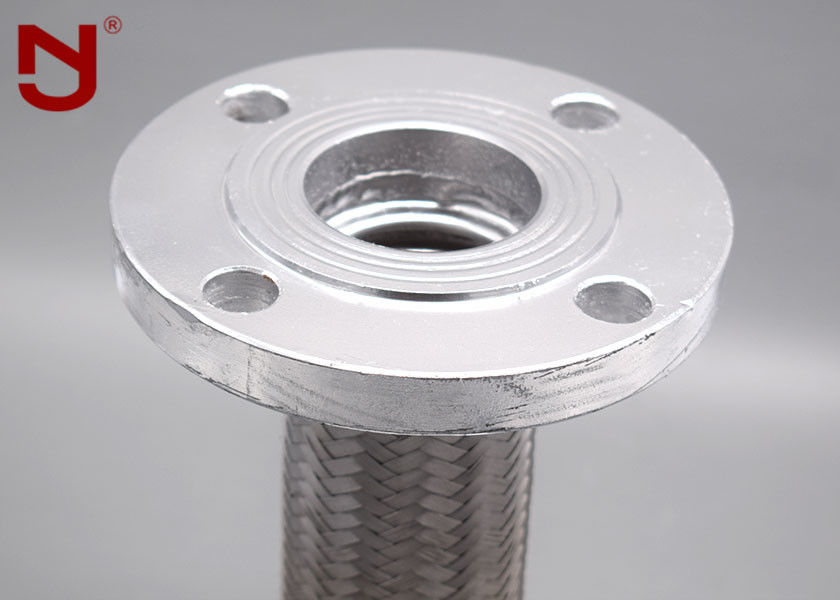

0-6 Mpa Metal Braided Hose Annular Thin Wall Double Braided For Pipeline System

0-6 Mpa Metal Braided Hose Annular Thin Wall Double Braided For Pipeline System
0-6 Mpa Metal Braided Hose Annular Thin Wall Double Braided For Pipeline System 0-6 Mpa Metal Braided Hose Annular Thin Wall Double Braided For Pipeline System 0-6 Mpa Metal Braided Hose Annular Thin Wall Double Braided For Pipeline System

Large Image :  0-6 Mpa Metal Braided Hose Annular Thin Wall Double Braided For Pipeline System

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20---500
Packaging Details: Wooden Box
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 Sets/Week
Detailed Product Description
Size: DN50----DN1000 Bellows Material: SS304,SS316,SS321
Flange Standard: DIN,BS,ANSI,JIS,AS Flange Material: Stainless Steel,Carbon Steel
Connection: Flange Working Pressure: 0--6Mpa
Working Medium: Water,Gas,Oil Working Temperature: -50~600℃
High Light:

stainless braided hose

,

flexible hose connector

Flexible Stainless Steel Metal Hose With Flange for pipeline




Introduction of stainless steel -lined flexible braided hose
Metal bellows hose is a kind of flexible pipe with high quality in modern industrial pipeline.The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.



Inner Core: Corrugated Stainless Steel

  • Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
  • Stainless steel tubing formed into corrugations parallel to one another
  • Helical / Convoluted option available upon request

 Outer Core:Braided Stainless Steel Layers

  • Purchase corrugated core hose with no layers, single or double braided
  • Flexible metal hose outer braid layers made from 304 stainless steel

What is the condition of our metal flexible hose ?




Connection type

Flanged/threaded/quick coupling/welding

Hose material

Ss304/ss316/ss321

Diameter

DN6-DN700

Pressure

6bar-25bar

Temperature

-196℃~+600℃

Length

According to your request

Thickness

5mm-20mm


To properly design a metal hose assembly for a particular application, the following design parameters must be determinde:

1. Temperature-----You should provide us information as the temperature to which the assembly is exposed a
proper fit.

2. Size-----The diameter of the connections in which the assembly will be installed is needed to provide.

3. Media-----This is improtant since you must be sure that the assembly's components are chemically
 compatible with the media going through the hose as well as the environment in which the hose is installed.

4. Pressure-----identify the internal pressure to which the assembly will be exposed. This information is
important to determine if the assembly is strong enough for the application.

5. Indenify the necessary end fittings-----This is required since fittings for the assembly must be chosen to
properly fit the mating connection.


What is the parameter of our metal flexible hose?
0-6 Mpa Metal Braided Hose Annular Thin Wall Double Braided For Pipeline System 0
