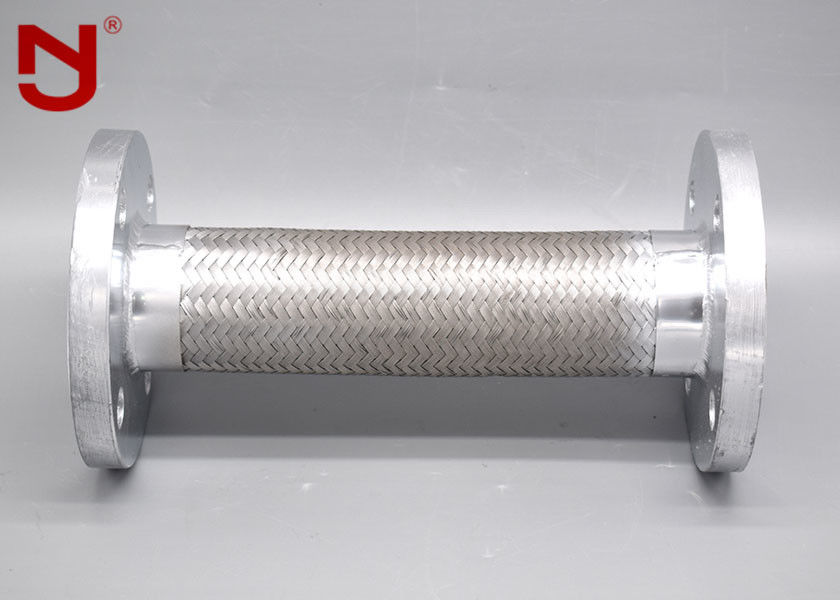

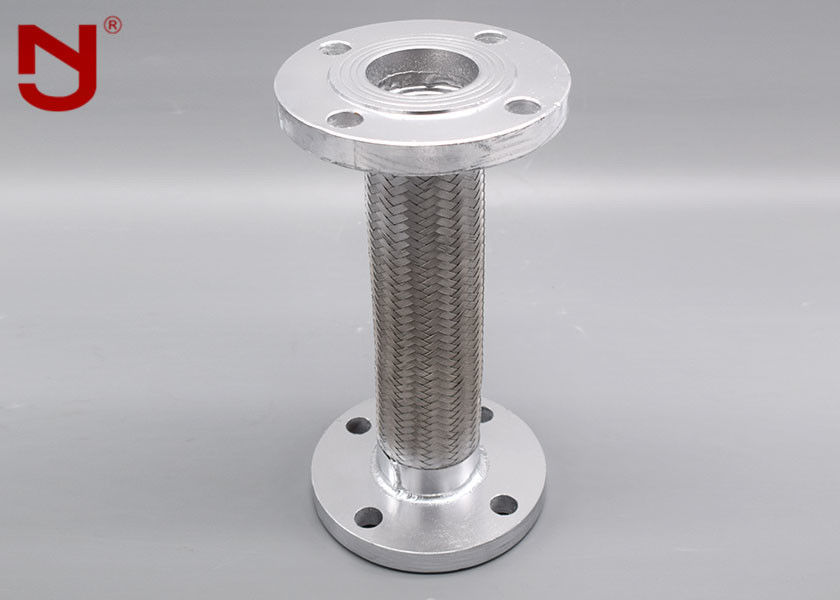

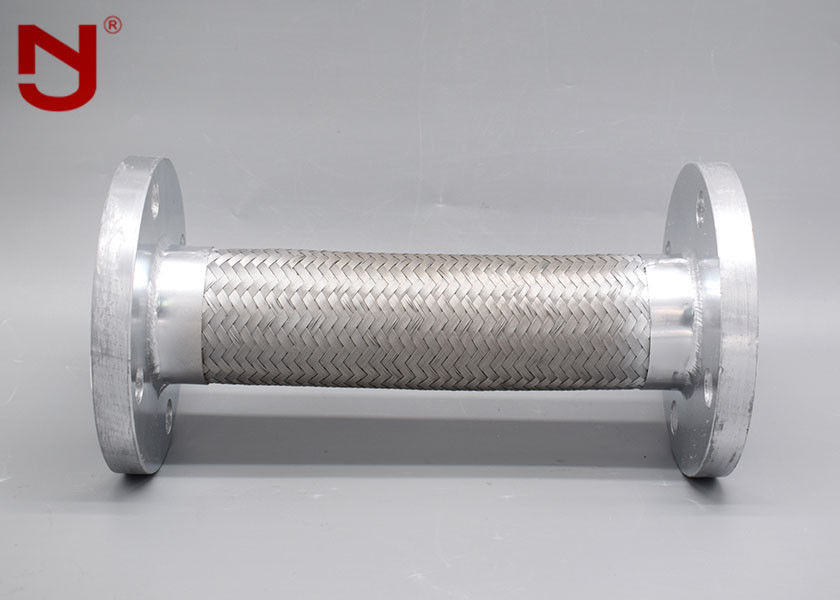

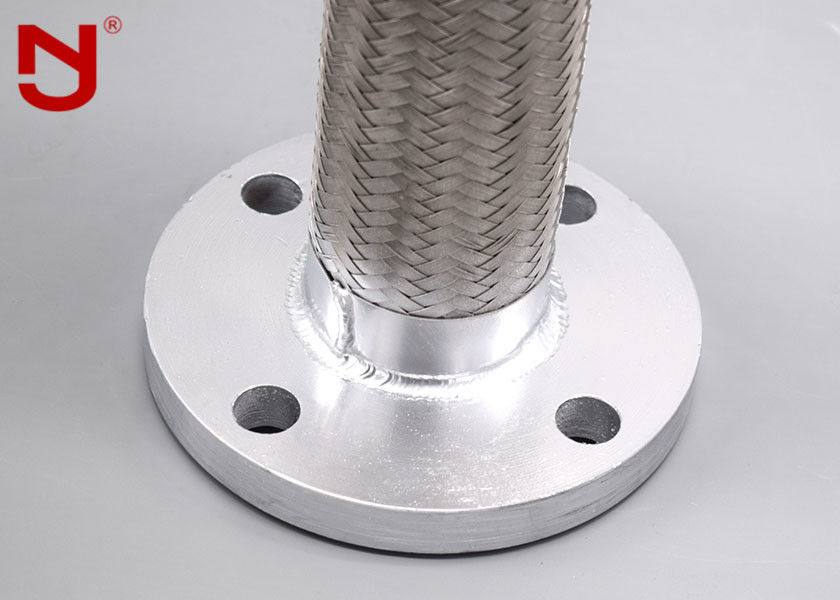

DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection Lined

DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection  Lined
DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection  Lined DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection  Lined DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection  Lined DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection  Lined

Large Image :  DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection Lined

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20---500
Packaging Details: Wooden Box
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 Sets/Week
Detailed Product Description
Size: DN50----DN1000 Bellows Material: SS304,SS316,SS321
Flange Standard: DIN,BS,ANSI,JIS,AS Flange Material: Stainless Steel,Carbon Steel
Connection: Flange,weld Working Pressure: 0--6Mpa
OEM&ODM: Yes Product Name: Metal Braided Hose
High Light:

flexible hose connector

,

braided expansion joint

Flexible 316/304 Material Flange Joint Bellows Hose Metal Flexible Hose





What is the condition of our metal flexible hose ?





Connection type Flanged/threaded/quick coupling/welding
Hose material Ss304/ss316/ss321
Diameter DN6-DN700
Pressure 6bar-25bar
Temperature -196℃~+600℃
Length According to your request
Thickness 5mm-20mm



Introduction of stainless steel -lined flexible braided hose

Metal bellows hose is a kind of flexible pipe with high quality in modern industrial pipeline.The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.



Character of stainless steel -lined flexible braided hose

Metal corrugated hose has good softness, anti-fatigue, high pressure resistant, high and low temperature resistant, corrosion resistant and other characters, comparing with other hoses(rubber and plastic hose),the service life of metal hose is much higher, so it has high comprehensive economical benefits.And wtih the development of modern industry, the demand for hig pressure resistance and high temperature resistant bellows metal hose (corrugated metal hose) is also increasing .



Inner Core: Corrugated Stainless Steel

  • Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
  • Stainless steel tubing formed into corrugations parallel to one another
  • Helical / Convoluted option available upon request

 Outer Core:Braided Stainless Steel Layers

  • Purchase corrugated core hose with no layers, single or double braided
  • Flexible metal hose outer braid layers made from 304 stainless steel





To properly design a metal hose assembly for a particular application, the following design parameters must be determinde:



1. Temperature-----You should provide us information as the temperature to which the assembly is exposed a

proper fit.



2. Size-----The diameter of the connections in which the assembly will be installed is needed to provide.



3. Media-----This is improtant since you must be sure that the assembly's components are chemically

 compatible with the media going through the hose as well as the environment in which the hose is installed.



4. Pressure-----identify the internal pressure to which the assembly will be exposed. This information is

important to determine if the assembly is strong enough for the application.



5. Indenify the necessary end fittings-----This is required since fittings for the assembly must be chosen to

properly fit the mating connection.





What is the parameter of our metal flexible hose?

DN50-DN1000 Ss Braided Flexible Hose 316 304 Material Weld Connection  Lined 0
