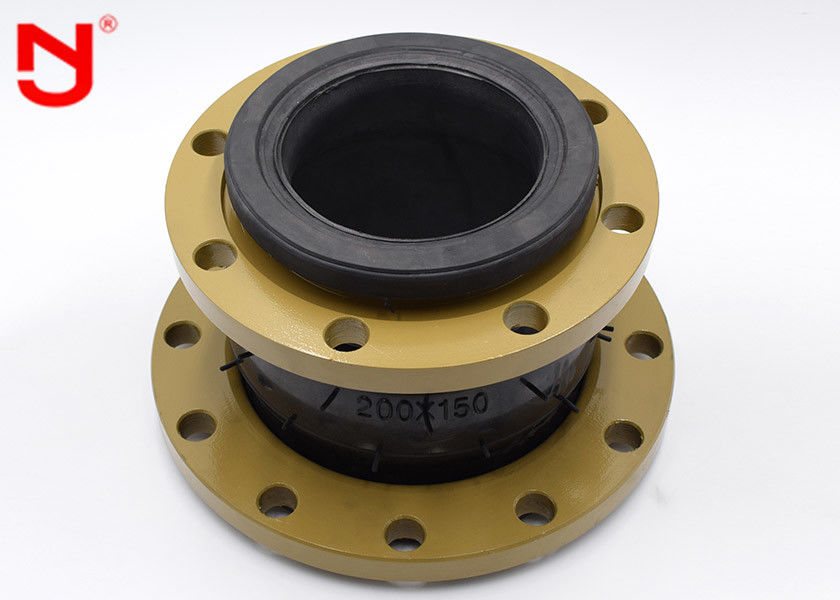

Concentric Rubber Flexible Joint , Pipe Rubber Bellows Expansion Joint Simple Structure

Concentric Rubber Flexible Joint , Pipe Rubber Bellows Expansion Joint Simple Structure

rubber expansion bellows

pump expansion joint

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

RFJY

Contact Us

Request A Quote
Product Details
Size:
DN50----DN1200
Rubber Material:
EPDM,NBR,SBR,NR
Flange Standard:
DIN,BS,ANSI,JIS,AS
Flange Material:
Carbon Steel,Stainless Steel
Workuing Pressure:
PN10,PN16,PN25
Burst Pressure:
6.0Mpa
Working Temperature:
-25~110Degree
OEM:
Yes
Company Type:
Factory
Product Name:
Concentric Reduced Rubber Joint For Different Equipment Connection
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 15--200/Set
Packaging Details
Wooden Box
Payment Terms
T/T, L/C, D/P, D/A, Western Union, MoneyGram
Product Description

Concentric reduced rubber joint for Different equipment connection



Introduction of reducer type rubber expansion joint:

The utility model relates to a flexible eccentric eccentric rubber joint, which can solve the problem of different caliber when the metal pipe is connected,and has the function of shock absorption and noise reduction, and can save the installation parts of the pipeline and save the cost. The utility model is composed of an inner rubber layer, a fabric reinforcing layer, a middle rubber layer, an outer rubber layer, an end reinforcement, a metal ring or a steel wire ring, a metal flange or a parallel movable joint.

With unique design, simple structure and good sealing performance, rubber joint completely solve the pipeline displacement problems caused by thermal expansion and contraction, as well as mechanical vibration.

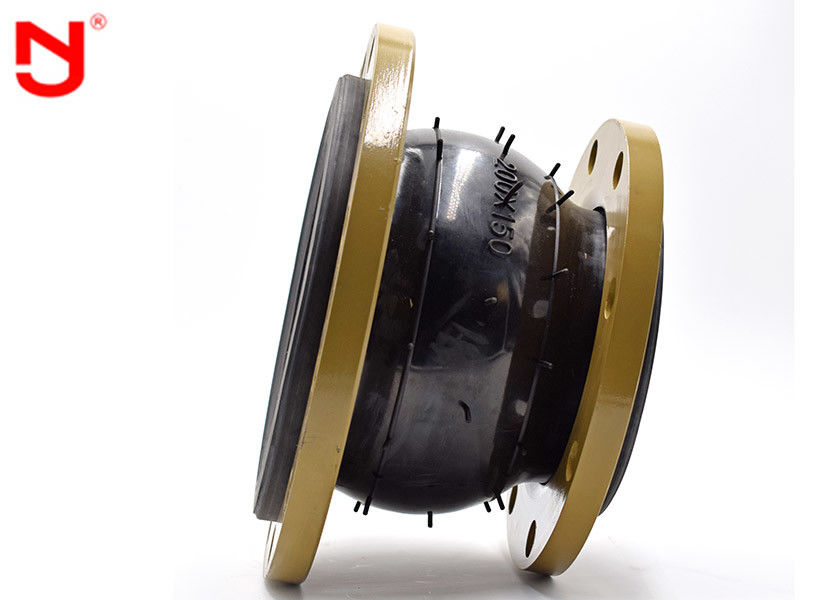

Concentric Rubber Flexible Joint , Pipe Rubber Bellows Expansion Joint Simple Structure 0

Features:

1.Small volume,light flexible ,easy to install and maintain

2.It reduces structural noise transmission with strong shock absorption in servive.

3.It is capable of horizontal,axial and angular displacement with the restruction and flange non-parallelism.

4.The inner seamless high-pressure rubber joint independently developed by us prevents corrosive

medium from etching the inner wall of the rubber joint in high temperature ,acid and alkali and oil resistant pipeline,thereby extending its service life .

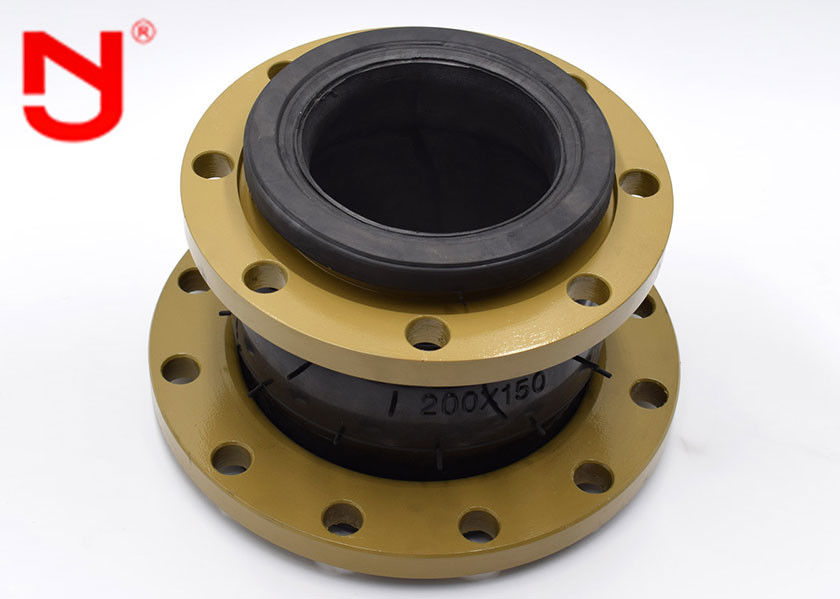

Concentric Rubber Flexible Joint , Pipe Rubber Bellows Expansion Joint Simple Structure 1



Specifications of stainless steel flanged concentric reducing rubber expansion joint

Material List
No. Name Material
1 Outer rubber layer IIR, CR, EPDM, NR, NBR
2 Inner rubber layer IIR, CR, EPDM, NR, NBR
3 Frame layer Polyester cord fabric
4 Flange Q235 304 316L
5 Reinforcement ring Bead ring
specification DN50~300 DN350~600
Working pressure (MPa) 0.25~1.6
Bursting pressure (MPa) ≤4.8
Vacuum (KPa) 53.3(400) 44.9(350)
Temperature (℃) -20~+115(for special condition -30~+250)
Applicable medium Air, compressed air, water, seawater, hot water, oil, acid-base, etc..
DN(large)×DN(small) Length Axial
displacement
(extension)
Axial
displacement
(compression)
Radial
displacement
Deflecting
angle
(a1+a2)°
50×32 180 15 18 45 35°
50×40 180 15 18 45 35°
65×32 180 15 18 45 35°
65×40 180 15 18 45 35°
65×50 180 15 18 45 35°
80×32 220 15 18 45 35°
80×50 180 20 30 45 35°
80×65 180 20 30 45 35°
100×40 220 20 30 45 35°
100×50 180 20 30 45 35°
100×65 180 22 30 45 35°
100×80 180 22 30 45 35°
125×50 220 22 30 45 35°
125×65 180 22 30 45 35°
125×80 180 22 30 45 35°
125×100 200 22 30 45 35°
150×50 240 22 30 45 35°
150×65 200 22 30 45 35°
150×80 180 22 30 45 35°
150×100 200 22 30 45 35°
150×125 200 22 30 45 35°
200×80 260 22 30 45 35°
200×100 200 25 35 40 30°
200×125 220 25 35 40 30°
200×150 200 25 35 40 30°
250×100 260 25 35 40 30°
250×125 220 25 35 40 30°
250×150 220 25 35 40 30°
250×200 220 25 35 40 30°
300×125 260 25 35 40 30°
300×150 220 25 35 40 30°
300×200 220 25 35 40 30°
300×250 220 25 35 40 30°
350×200 230 28 38 35 26°
350×250 230 28 38 35 26°
350×300 230 25 38 40 26°
400×200 230 25 38 40 26°
400×250 240 28 38 35 26°
400×300 240 28 38 35 26°
400×350 260 or 28 38 35 26°
285
450×250 280 28 38 35 26°
450×300 240 28 38 35 26°
450×350 240 28 38 35 26°
450×400 240 28 38 35 26°
500×250 280 28 38 35 26°
500×300 280 28 38 35 26°
500×350 240 28 38 35 26°
500×400 230 28 38 35 26°
500×450 240 28 38 35 26°
600×400 240 28 38 35 26°
600×450 240 28 38 35 26°
600×500 240 28 38 35 26°
