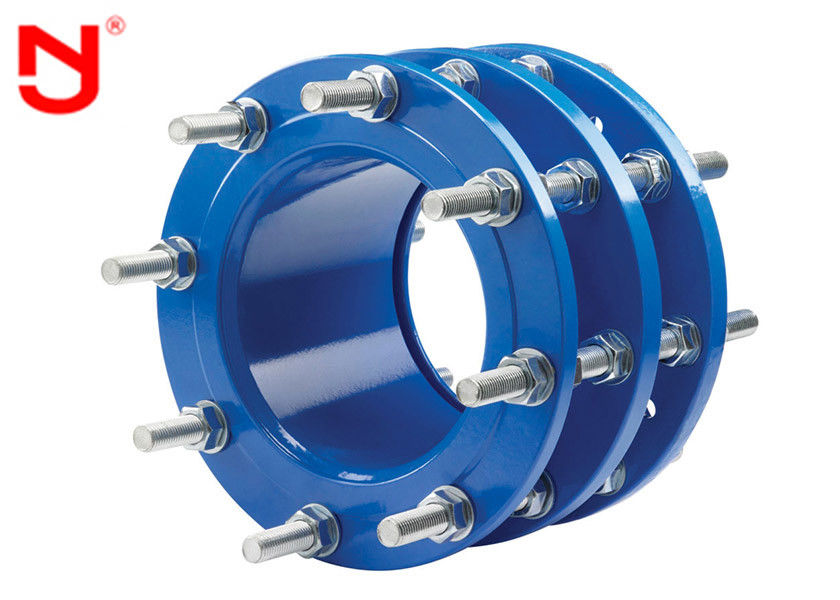

Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color

Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color
Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color

Large Image :  Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: VSSJAF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Size: DN80----DN3000 Material: Carbon Steel,Stainless Steel
Working Pressure: 0-6Mpa Flange Standard: DIN,ANSI,BS,JIS,AS
High Light:

ductile iron dismantling joint

,

thrust type dismantling joint

Ductile iron pipe fitting flanged dismantling joint price Used for butterfly valve

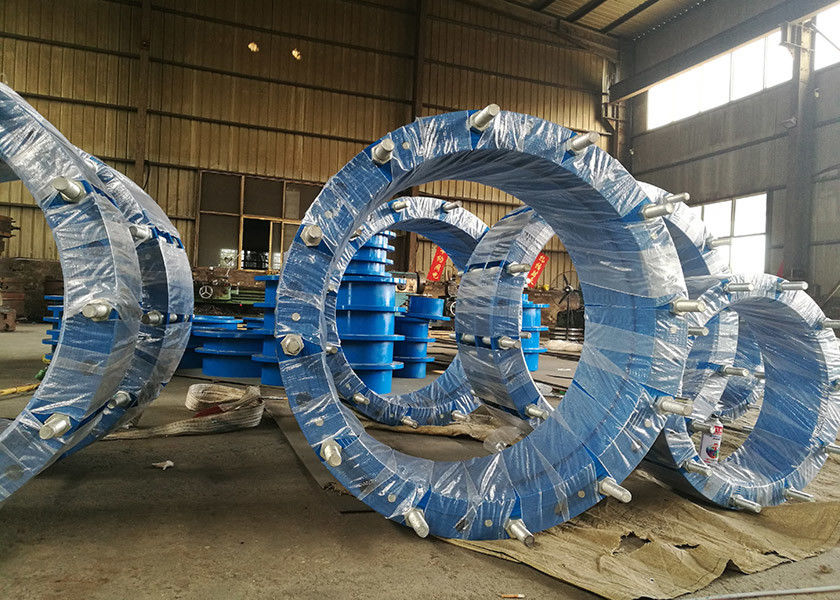

Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color 0

1. metal expansion joint provide adjustability to equipment installations by combining a Flanged Coupling Adapter and a Flanged Spigot into one assembly.

2.equipment connection applications include valve, pump, meter and other flanged fitting installations.

3.longitudinal adjustment is provided by the telescoping action of the Spigot inside the Flanged Pipe Coupling Adapter.

4.when final installation position is achieved, the bolting procedure for the Flanged Pipe Coupling Adapter and the Flanged Spigot can be completed.



Specification DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges.
Standard
ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295
Pressure
300PSI, 500PSI, 750PSI, 1000PSI
Pipe ends
Spigot, socket or flanges.
Internal coating
Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating
External coating
Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer's requirements.
Test
In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.
Accessories
NBR, SBR, EPDM rubber ring according to ISO4633 / EN681.1 are available.
Application
Municipal Use,Waterworks Pipelines,Piping Fittings,Water Engineering,Potable Water Use,Irrigation Use,Water Supply Project Use,Water Treatment Plants Use,Pumping Stations,Water Utility Sectors,Water-Supply Pressure Pipeline,Potable Water Pumping Station,Stormwater Lines,Fire Water Pumping Station,Fresh Water Pumping Station, ect.
Types
Dismantling Joint,Universal Flange Adaptor,Universal Coupling,Ductile Iron Loose Flange Joint,DI Pipe Fitting,Saddle for PVC Pipe,Repair Clamp,Qucick Flange Adaptor,Gibault Joint,Restrained Flange Adaptor,Restrained Coupling,Valve,etc.

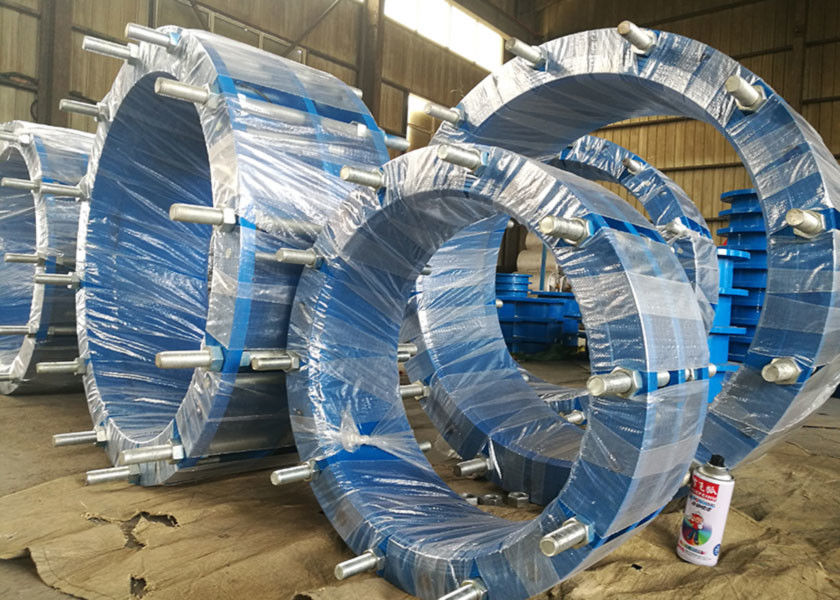

Butterfly Valve DI Dismantling Joint Universal Irrigation Application Blue Color 1
