|Size:||DN80----DN3000||Material:||Carbon Steel.Ductile Iron|
|Working Pressure:||0-6Mpa||Flange Standard:||DIN，ANSI，BS|
|Working Temperature:||-30~200Degree||Company Type:||Factory|
|OEM ODM:||Support||Product Name:||Dismantling Joint|
restrained dismantling joint,
thrust type dismantling joint

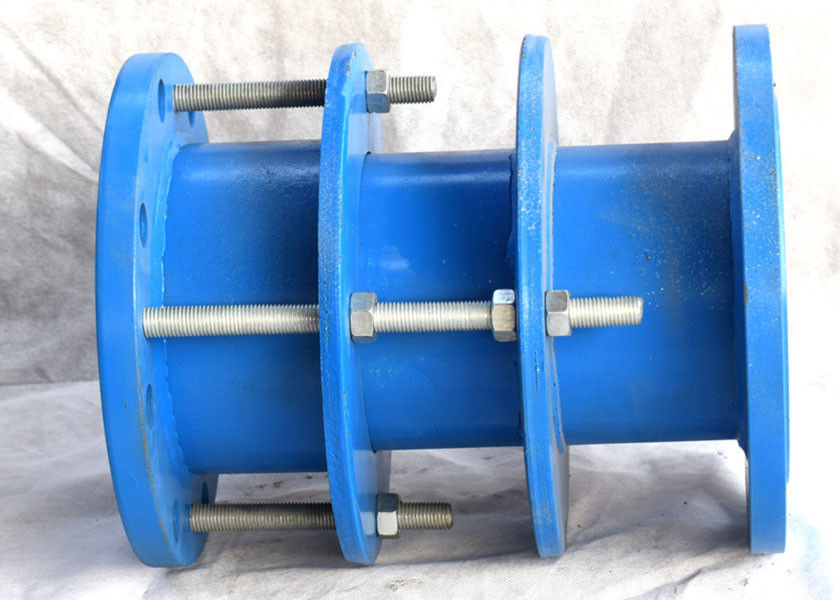

Hot sale high quality ductile iron pipe fitting dismantling joint
1. metal expansion joint provide adjustability to equipment installations by combining a Flanged Coupling Adapter and a Flanged Spigot into one assembly.
2.equipment connection applications include valve, pump, meter and other flanged fitting installations.
3.longitudinal adjustment is provided by the telescoping action of the Spigot inside the Flanged Pipe Coupling Adapter.
4.when final installation position is achieved, the bolting procedure for the Flanged Pipe Coupling Adapter and the Flanged Spigot can be completed.
|Specification||DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges.|
ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295
300PSI, 500PSI, 750PSI, 1000PSI
Spigot, socket or flanges.
Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating
Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer's requirements.
In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.
NBR, SBR, EPDM rubber ring according to ISO4633 / EN681.1 are available.
Municipal Use,Waterworks Pipelines,Piping Fittings,Water Engineering,Potable Water Use,Irrigation Use,Water Supply Project Use,Water Treatment Plants Use,Pumping Stations,Water Utility Sectors,Water-Supply Pressure Pipeline,Potable Water Pumping Station,Stormwater Lines,Fire Water Pumping Station,Fresh Water Pumping Station, ect.
Dismantling Joint,Universal Flange Adaptor,Universal Coupling,Ductile Iron Loose Flange Joint,DI Pipe Fitting,Saddle for PVC Pipe,Repair Clamp,Qucick Flange Adaptor,Gibault Joint,Restrained Flange Adaptor,Restrained Coupling,Valve,etc.
The metal pipe couplings are functioned with pull and pres-sure resistance and excellent seal performance and easy installation. Hence it is widely used in power, metallurgy, drainage and sewage disposal to connect pump, vale and pipe, etc. It also has some multi-directional displacement during pipes operation so as to release blind plate propulsion and protect pipes, especially it makes it easy to install and maintain pipes. However, force- transferring pipe coupling shall be used on the pipe corner and pump exit, because, the coupling can transfer blind plate propulsion from pump start to pump and pipe through force- transferring bolt and prevent pull to centralize close to pipe or pipe or damage equipment by impact force. Other pipe couplings can be selected freely for other positions.
Our tenet: your trust is our honor and we will manufacture high- quality products for you.
we can design and make the products according to your drawings and techincal requirements.The quality is better and the price is lower than the similar products another company make.
