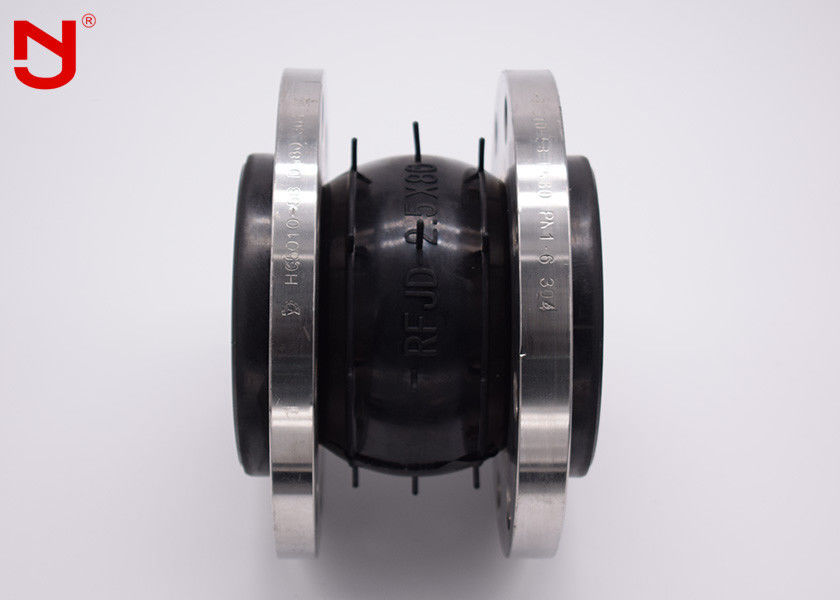

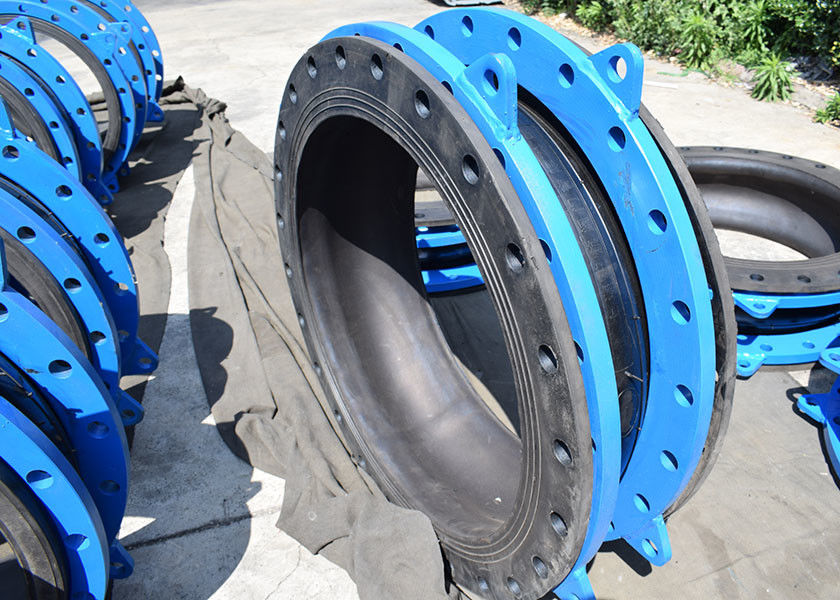

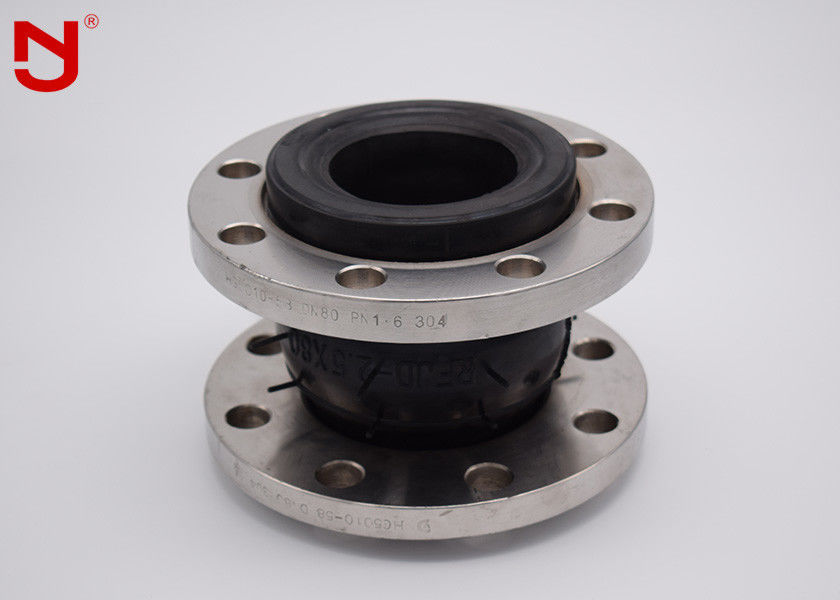

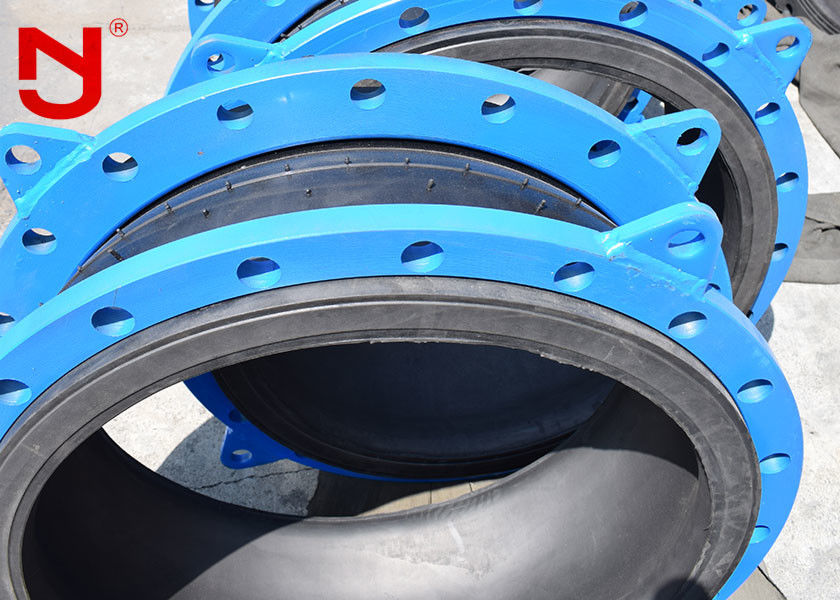

Rubber fittings compensator expansion joints manufacturers 2019 hot sale
JINGNING Expansion Joints offer superior performance, reliability, and service life, resulting in improved plant safety and increased mechanical integrity of equipment. As specifically engineered products that are inserted in a rigid piping system, JINGNING Rubber Expansion Joints will:
All of our expansion joints carry safety ratings that exceed product specifications in areas such as pressure and movement. Non-metallic expansion joints and flexible couplings are ideally suited for a wide variety of industries.
GENERAL CHARACTRISTICS | |
Nominal Diameter | DN15-DN3000 |
Working Pressure | PN6-PN25 |
Working Temperature | -20℃-140℃ |
Working Medium | Water,Oil,Acid,Alkali |
Main data of rubber expansion joint
|
||||||
Nominal diameter(DN)
|
Length
|
Axial displacement(mm)
|
Horizontal displacement
|
Deflexion angle
|
||
mm
|
inch
|
mm
|
Extension
|
Compression
|
mm
|
(a1+a2)°
|
32
|
1 1/4
|
95
|
6
|
9
|
9
|
15°
|
40
|
1 1/2
|
95
|
6
|
10
|
9
|
15°
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
65
|
2 1/2
|
115
|
7
|
13
|
11
|
15°
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
600
|
24
|
260
|
16
|
25
|
22
|
15°
|
NOTES:
Dimensions are expressed in mm, and subjected to manufacturing tolerances. Data can be altered without notice by our Design Department for the product benefit.
* The stated movements are solely valid with the joint subject to a single movement direction. Values are proportionally reduced along with the movement combination.Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.
