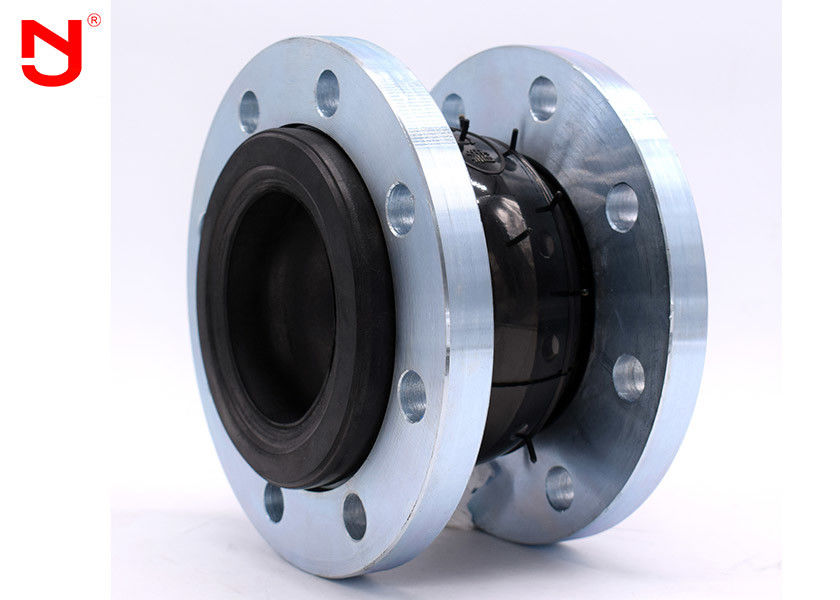

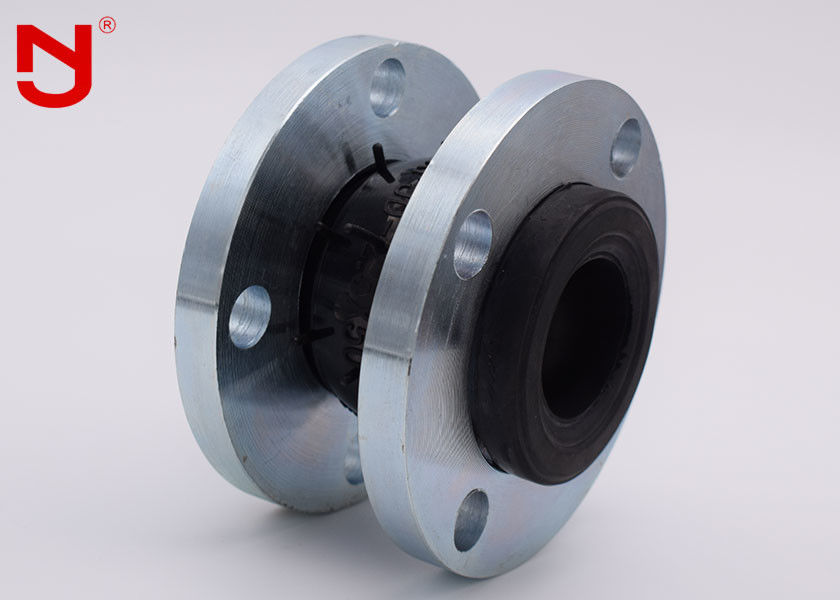

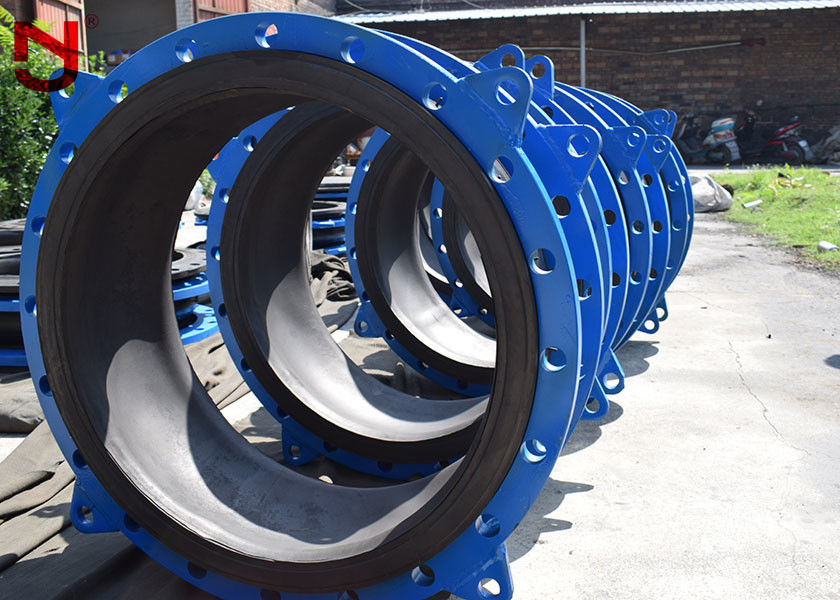

Synthetic Single Sphere Rubber Expansion Joint Compensators Metal Reinforcement

Synthetic Single Sphere Rubber Expansion Joint Compensators Metal Reinforcement
Synthetic Single Sphere Rubber Expansion Joint Compensators Metal Reinforcement
video play

Large Image :  Synthetic Single Sphere Rubber Expansion Joint Compensators Metal Reinforcement

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10--2000
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Size: DN32---DN3200 Material: EPDM,NBR,SBR
Flange Standard: DIN,ANSI,BS,JIS,AS Working Pressure: -0.2~5.5Mpa
Working Temperature: -30~110℃ Burst Pressure: 7.0Mpa
Control Rod: Without OEM: Yes
Businese Type: Factory Color: Black
High Light:

rubber bellows expansion joints

,

epdm expansion joint

synthetic single sphere rubber expansion joint compensators metal reinforcement



The limiting device for limit flexible rubber joint shall be reasonably matched with the flexible rubber joint, which can limit the positioning displacement when used in the general connection of pipelines or in the pipeline with displacement requirements. When the flexible rubber joint is connected with pumps and valves, the limiting device shall be equipped on the flexible rubber joint to transfer force, It is an ideal substitute for steel force transmission joint.



Performance characteristics of limit flexible rubber joint



1. It has the advantages of small volume, light weight, good ductility, convenient installation and maintenance, etc.

2. Horizontal, radial and angular deviation can be caused during installation, which will not be limited by the uneven center of pipe plug and flange surface.

3. When working, it can reduce the transmission noise of the structure and has strong damping capacity.





Technical data of limit flexible rubber joint



GENERAL CHARACTRISTICS
Nominal Diameter DN15-DN3000
Working Pressure PN6-PN25
Working Temperature -20℃-140℃
Working Medium Water,Oil,Acid,Alkali




Main data of limit flexible rubber joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°



Note:To select the proper piping flexible rubber joint, it is critical to understand the media compatibility with the materials selected, full temperature, pressure and vacuum ranges, movements required, and dimensions between pipe flanges. With this information, JINGNING application engineers can assist in determining the ideal expansion joint for any application.

Limit flexible rubber joint details show


Limit flexible rubber joint production flow






Limit flexible rubber joint application



1. Excellent pressure resistance. Its spherical structure has strong internal pressure stability, and combined with strong special reinforced nylon, it has excellent pressure resistance.

2. Excellent shock absorption and noise reduction performance. The single ball flexible rubber joint is designed to reduce the vibration, noise and movement inherent in the pipeline system. Jingning will enable the isolation equipment to move freely and eliminate the vibration and repulsive sound common in metal joints.

3. Compensate for greater elongation, compression, lateral and angular movement. Equipment such as pumps, chillers, cooling towers, compressors and piping systems deviated from the straight line due to wear, load stress and during the setting of foundation blocks. Flexible connectors allow lateral, torsional and angular movement to prevent damage, thereby avoiding costly downtime in plant operation.
