EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance

EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance
EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance

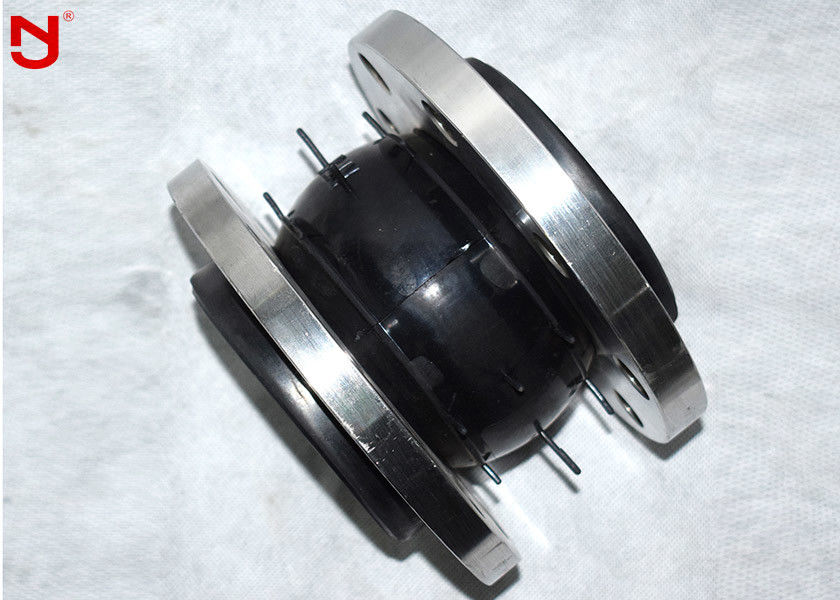

Large Image :  EPDM Flexible Single Sphere Rubber Expansion Joint Outstanding Pressure Resistance

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10--2000
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Size: DN32---DN3000 Material: EPDM,NBR,SBR
Flange Standard: DIN,ANSI,BS Working Pressure: -0.2~4.5Mpa
Working Temperature: -30~120℃ Burst Pressure: 6.0Mpa
Control Rod: With OEM: Yes
Businese Type: Factory Flange Material: Ductile Iron
High Light:

flanged rubber expansion joint

,

epdm expansion joint

Plumbing fittings single sphere ansi flange neoprene flexible rubber joint



ADVANTAGES of rubber joint

1.Outstanding pressure resistance

It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and strong special reinforcing nylon.JINGNING flexible connector display an outstanding pressure resistance of bursting pressure.



2.Superior absorption of vibration-noise-shock

JINGNING single sphere flexible rubber joint are engineered to reduce vibration ,noise and movenment inherent in piping systems.JINGNING will enable the isolated equipment to move freely ,eliminating vibration and repelling sound which is prevalent in metallic type joint.



3.Compensate greater elongation, compression , lateral and angular movement

Equipment such as pump ,chillers,cooling tower,compressors and piping systems move out of alignment due to wear,load stress and during the setting of foundation blocks.JINGNING flexible connector for lateral ,torsional and angular movement to prevent damage ,which elimate costly downtime in plant operation.



Expansion joints for piping systems are flexible connectors, made out of PTFE, natural or synthetic elastomers, with combinations of rubber, fabric and metal reinforcement. Expansion joints installed into piping systems will help solve problems such as:

  • Stresses - expansion joints absorb movement due to thermal expansion and contraction of pipes, wear, load stresses and settling of supports and foundations
  • Misalignment - custom expansion joints can be manufactured with offsets to account for installation errors in pipe alignment, or for movement and settling over time
  • Abrasion - with proprietary elastomers such as ABRA-LINE, abrasion can be significantly reduced compared to other rubber or metallic connectors
  • Vibration - rubber expansion joints significantly reduce vibration when installed in proper locations and are not subject to metal fatigue failure
  • Noise - transmission of sound is reduced as the expansion joint acts as a dampener and absorbs the noise levels
  • Shock - effects of pressure surges, water hammer, or pump cavitation are resisted
  • Corrosion - no metal to metal contact eliminating electrolysis between dissimilar metals
  • Space - greatly reduced space required compared to expansion bends or loops





                   GENERAL CHARACTRISTICS
Nominal Diameter DN15-DN3000
Working Pressure PN6-PN25
Working Temperature -20℃-140℃
Working Medium Water,Oil,Acid,Alkali
Part of technical data
Main data of rubber expansion joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°



To select the proper piping expansion joint, it is critical to understand the media compatibility with the materials selected, full temperature, pressure and vacuum ranges, movements required, and dimensions between pipe flanges. With this information, JINGNING application engineers can assist in determining the ideal expansion joint for any application.



Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.


Contact us to know more about rubber expansion joints!



FAQ



Q1What`s the rubber material for Epdm flexible flange couplings rubber joint in usa?

A1: We have EPDM.CR,NBR and so on .you can choose your needed deponding on the work enviroment and media.



Q2: Is the flange galvaized for Epdm flexible flange couplings rubber joint in usa?

A2: Yes.the colour have the white,red,blue,grey ,yellow and others deponding on your needed. the carbon steel flange not painting anticorrosive paint must be galvanized in order to avoid rusting. Usually,we choose electronic galvanized or hot dip galvanized .



Q3: Do you attend the Fair ?

A3:Yes ,you can meet us ,then we can have a talk with you well . You can meet us at your office ,because we visit you every year.



Q4: Can i get a sample?

A4: Of cause you can . For samll order .Express wll be best. And for bulk order,sea ship way is best but take much time.For urgent orders.we suggest via air to airport plus our ship partner send to your door.



Q5: What is the MOQ of Epdm flexible flange couplings rubber joint in usa?

A5: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
