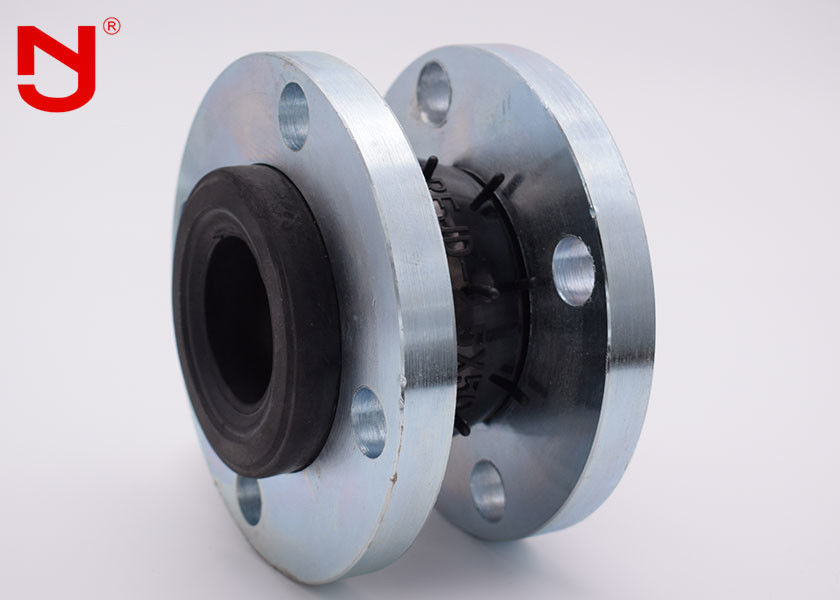

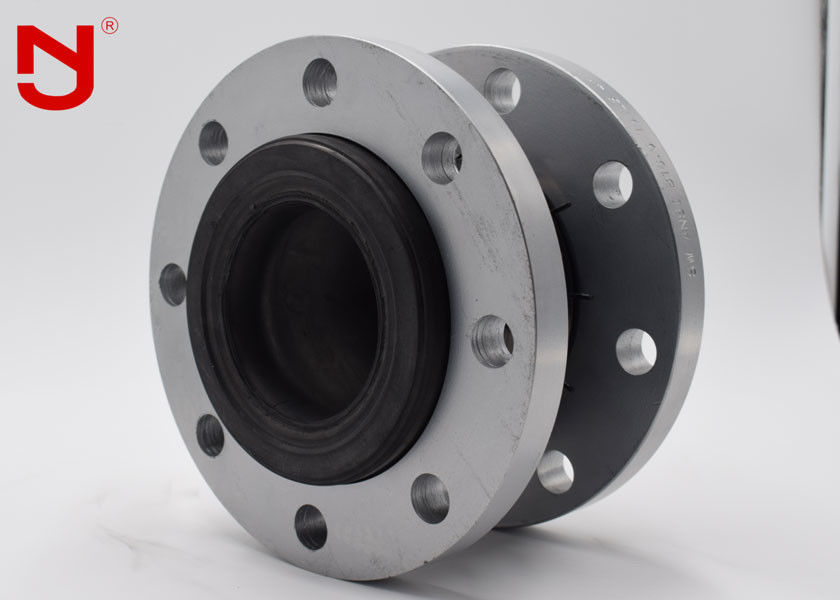

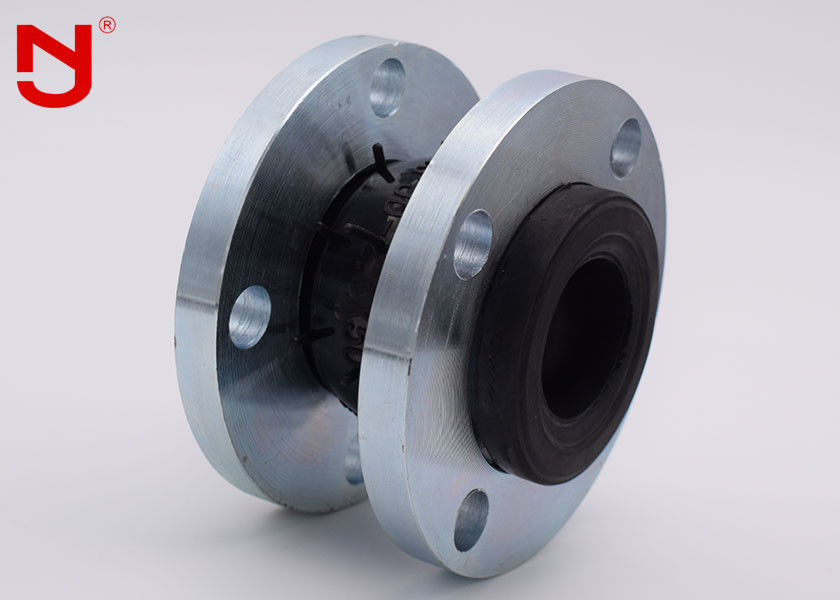

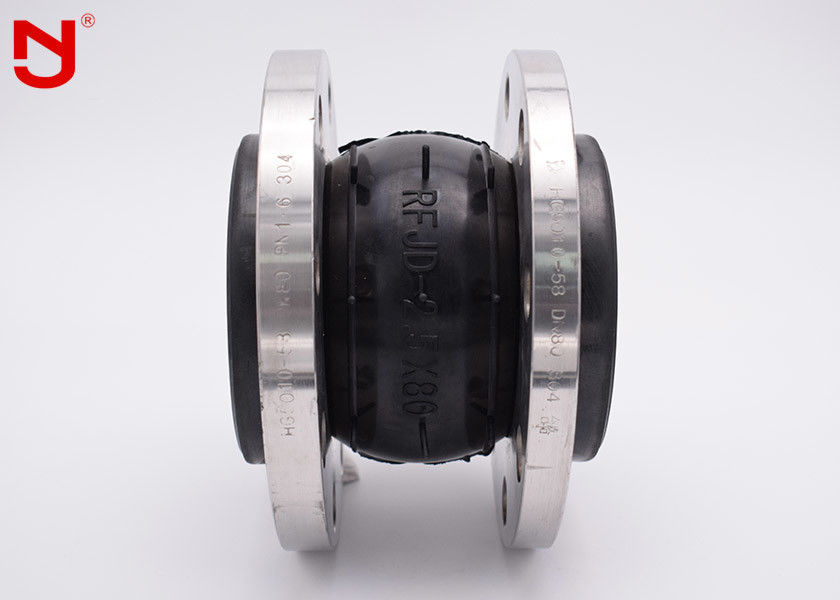

EPDM NBR SBR Pipe Expansion Joint DN32-DN3000 Nylon Cord Fabric Key Frame

EPDM NBR SBR Pipe Expansion Joint DN32-DN3000 Nylon Cord Fabric Key Frame
EPDM NBR SBR Pipe Expansion Joint DN32-DN3000 Nylon Cord Fabric Key Frame EPDM NBR SBR Pipe Expansion Joint DN32-DN3000 Nylon Cord Fabric Key Frame EPDM NBR SBR Pipe Expansion Joint DN32-DN3000 Nylon Cord Fabric Key Frame EPDM NBR SBR Pipe Expansion Joint DN32-DN3000 Nylon Cord Fabric Key Frame

Large Image :  EPDM NBR SBR Pipe Expansion Joint DN32-DN3000 Nylon Cord Fabric Key Frame

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE,ISO
Model Number: RFJD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10--2000
Packaging Details: carton or wooden
Delivery Time: 5--15 working days
Payment Terms: Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 10000 sets per week
Detailed Product Description
Size: DN32---DN3000 Material: EPDM,NBR,SBR
Flange Standard: DIN,ANSI,JIS Working Pressure: -0.2~4.5Mpa
Working Temperature: -30~120℃ Burst Pressure: 6.0Mpa
Control Rod: With Technical: Vulcanized
Samples: Free Delivery Time: Two Weeks (5000 Pcs)
High Light:

flanged rubber expansion joint

,

rubber bellows expansion joints

Water System Stainless Steel Flange Vulcanized Rubber joint For Pipe Fitting​



Product Description

1. Main body: NR,NBR,EPDM,etc

2. Key Frame: Nylon cord fabric

3. Pressurized ring: Steel wire strand

4. Flange: Q235,QT450,SS304,SS316





JINGNING Expansion Joints offer superior performance, reliability, and service life, resulting in improved plant safety and increased mechanical integrity of equipment. As specifically engineered products that are inserted in a rigid piping system, JINGNING Rubber Expansion Joints will:

  • Absorb movement
  • Improve thermal stability
  • Relieve system strain due to thermal change, load stress, pumping surges, wear of settling
  • Reduce mechanical noise
  • Compensate for misalignment
  • Eliminate electrolysis between dissimilar metals

All of our expansion joints carry safety ratings that exceed product specifications in areas such as pressure and movement. Non-metallic expansion joints and flexible couplings are ideally suited for a wide variety of industries.





                   GENERAL CHARACTRISTICS
Nominal Diameter DN15-DN3000
Working Pressure PN6-PN25
Working Temperature -20℃-140℃
Working Medium Water,Oil,Acid,Alkali
Part of technical data
Main data of rubber expansion joint
Nominal diameter(DN)
Length
Axial displacement(mm)
Horizontal displacement
Deflexion angle
mm
inch
mm
Extension
Compression
mm
(a1+a2)°
32
1 1/4
95
6
9
9
15°
40
1 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°



To select the proper piping expansion joint, it is critical to understand the media compatibility with the materials selected, full temperature, pressure and vacuum ranges, movements required, and dimensions between pipe flanges. With this information, JINGNING application engineers can assist in determining the ideal expansion joint for any application.



Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.


Contact us to know more about rubber expansion joints!



FAQ



Q1What`s the rubber material for Epdm flexible flange couplings rubber joint in usa?

A1: We have EPDM.CR,NBR and so on .you can choose your needed deponding on the work enviroment and media.



Q2: Is the flange galvaized for Epdm flexible flange couplings rubber joint in usa?

A2: Yes.the colour have the white,red,blue,grey ,yellow and others deponding on your needed. the carbon steel flange not painting anticorrosive paint must be galvanized in order to avoid rusting. Usually,we choose electronic galvanized or hot dip galvanized .



Q3: Do you attend the Fair ?

A3:Yes ,you can meet us ,then we can have a talk with you well . You can meet us at your office ,because we visit you every year.



Q4: Can i get a sample?

A4: Of cause you can . For samll order .Express wll be best. And for bulk order,sea ship way is best but take much time.For urgent orders.we suggest via air to airport plus our ship partner send to your door.



Q5: What is the MOQ of Epdm flexible flange couplings rubber joint in usa?

A5: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
