Double Sphere Threaded Expansion Joint , Pipework Expansion Joints High Pressure Resistance

Double Sphere Threaded Expansion Joint , Pipework Expansion Joints High Pressure Resistance

high temperature expansion joint

rubber flexible connector

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

RLJS

Contact Us

Request A Quote
Product Details
Size:
1/2"~3"
Rubber Material:
EPDM,NBR,SBR
Connection:
Thread/Screw
Usage:
Water ,Oil,Gas
Temperature:
-20~110 ℃
Standard:
BSPT,NPT
Test:
PED 2014/68/EU
Product Name:
Flexible Rubber Joint
Burst Pressure:
10.0Mpa
Color:
Black
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton or Wooden
Product Description

High quality flexible connector union type thread rubber expansion joint

Screw thread rubber Flexible Expansion Joint , also known as flexible joint, rubber expansion joint, rubber flexible joint, pipe expansion joint, soft rubber joint etc.

We introduce advanced technology from abroad, and combine it with Chinese production experience. In the manufacturing operation, the inner side endures high pressure; nylon cord fabrics and the inner rubber are better combined and can work under higher pressure than normal flexible rubber joint. Its characteristics are that the inner adhesive layer united perfectly, bright, clean and seamless; the tag adopts the vulcanization process, perfectly matches the product.

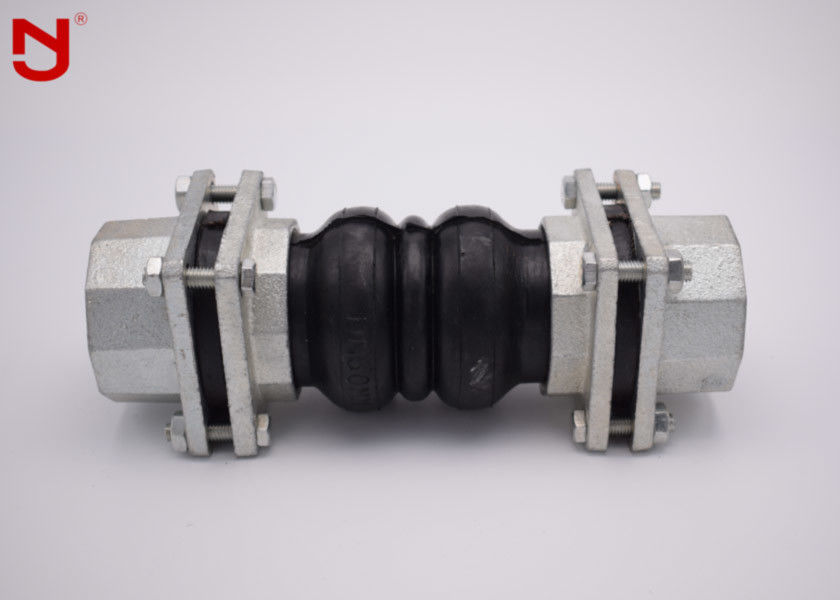

Double Sphere Threaded Expansion Joint , Pipework Expansion Joints High Pressure Resistance 0

Threaded union rubber expansion joint Advantage:


A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.

B:Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.

C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.



Product Details

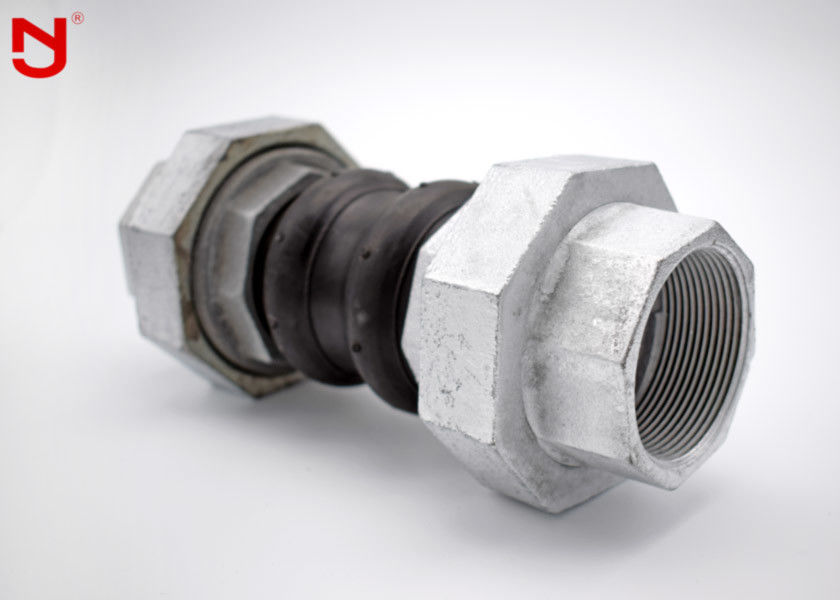

Double Sphere Threaded Expansion Joint , Pipework Expansion Joints High Pressure Resistance 1

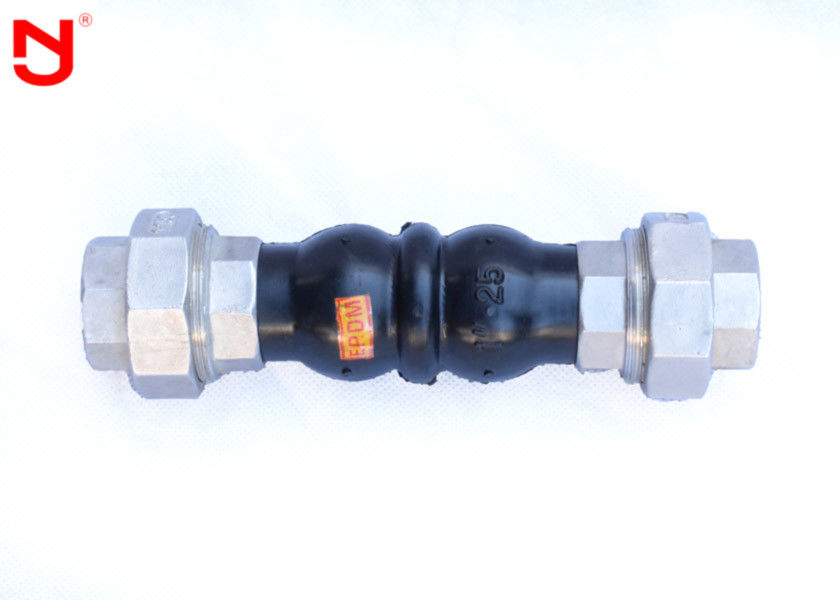

Double Sphere Threaded Expansion Joint , Pipework Expansion Joints High Pressure Resistance 2
Double Sphere Threaded Expansion Joint , Pipework Expansion Joints High Pressure Resistance 3Double Sphere Threaded Expansion Joint , Pipework Expansion Joints High Pressure Resistance 4

EPDM Thread-Connection expansion joint for high vibration absorbing ability can be customized DN15-DN80.

EPDM Thread-Connection expansion joint for high vibration absorbing ability after surface and treatment and inspection of finished products.



Notes:



1. All expansion joints are finshed with retaining flanges,limit rod units are available on special request.
2. Pressures shows are recommended“operating”,test pressure is 1.5time“operating”,burst pressure is 3 time “operating”.
3. Vacuum rating is based on neutral installed length without external load.Products shall not be installed “elongated”on vacuum applications.
4. Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed .This will either burn or seriously damage the expansion joints.
Huayuan Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design ,
construction,specification and materials without prior notice and without incuring any obligation.Any precise measurements,kindly contact with Huayuan technical service directly.
