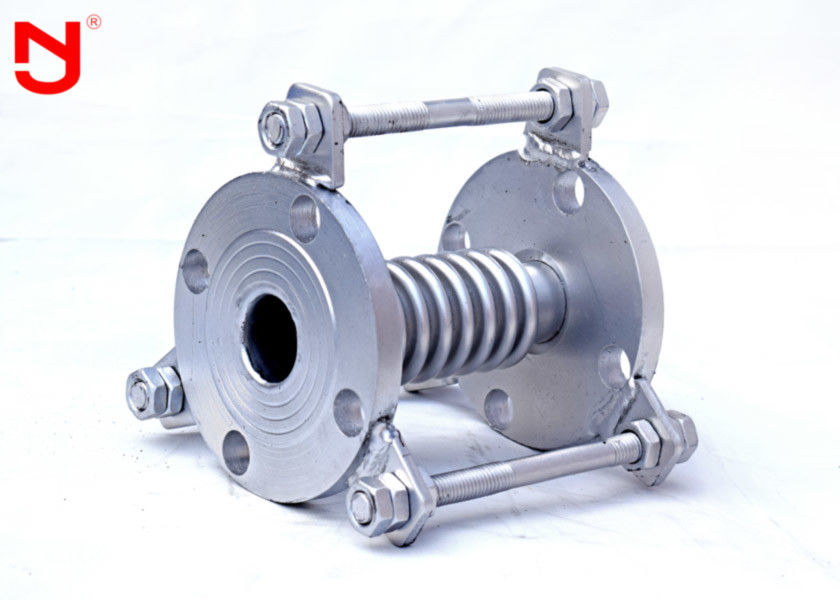

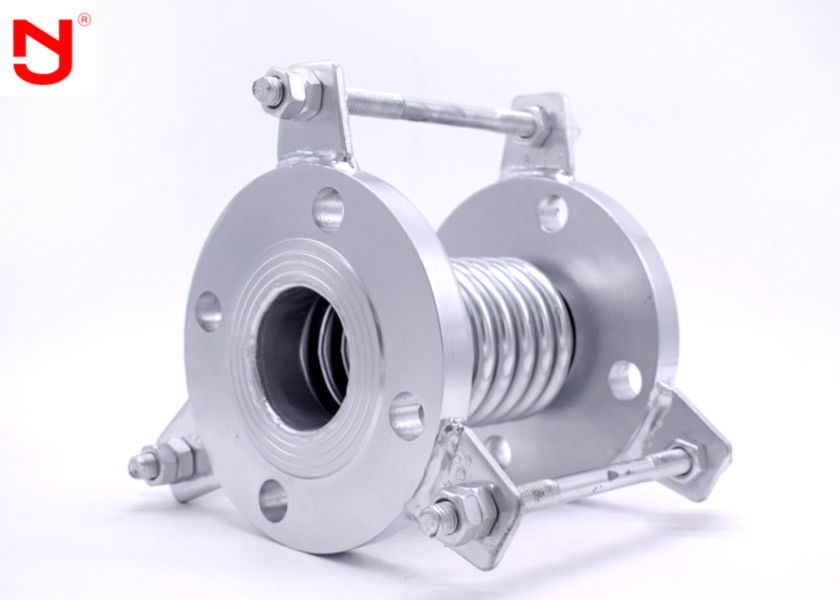

Floating Metal Expansion Joint Corrugated Hose Compressors Inlet For Fire Protection System

Floating Metal Expansion Joint Corrugated Hose Compressors Inlet For Fire Protection System

stainless steel expansion joint

flanged expansion joint

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

JDZ

Contact Us

Request A Quote
Product Details
Size:
DN50---DN3000
Bellows Material:
SS304,SS316,SS321
Flange Material:
Stainless Steel,Carbon Steel
Flange Standard:
ANSI,DIN,BS,AS,JIS
Working Medium:
Water,Oil,Steam
Warranty:
18 Months
Package:
Wooden Box
Product Name:
Metal Expansion Joint
Delivery Time:
5-15 Days
Stock:
10000
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

Stainless Steel Floating Flange Type Corrugated Hose Bellows

Product Description

Detail corrugated Expansion Joint features:
1) Improve the flow circulation and avoid the bellow deformation.
2) Absorbs thermal expansion and shock
3) Structure: Bellows + flat welding flanges
4) Main material, bellows: Stainless steel 304; Flanges: Stainless steel 304 or carbon steel
5) Compensates converting misalignment
6) Compensates for exhaust converter misalignment
Application:
7) Heating and air conditioning installation
8) Hot water and fire protection system
9) Compressors inlet and outlet
10) Pipe with axial displacement by temperature or pressure changes
11) Thermal motors refrigeration circuit

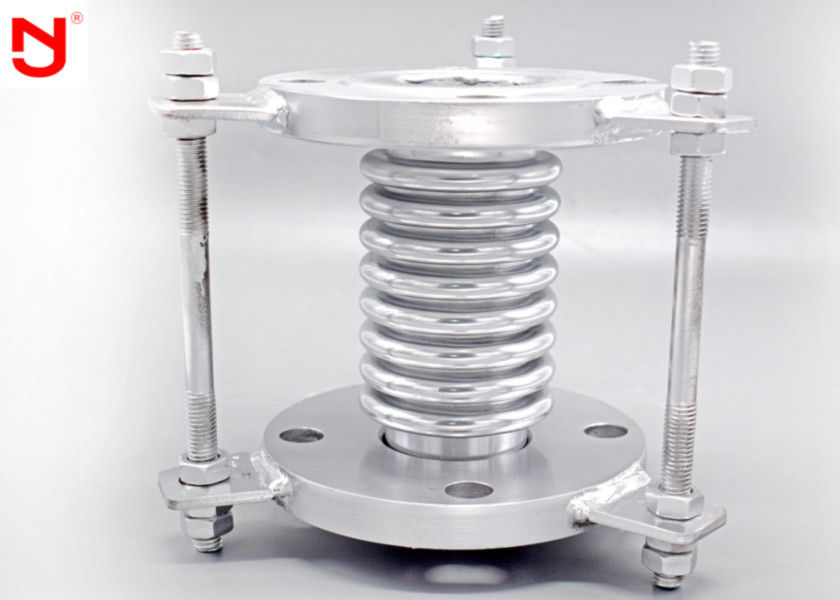

Floating Metal Expansion Joint Corrugated Hose Compressors Inlet For Fire Protection System 0



Nominal
Diameter
DN
Ripple
Qty.
Working Pressure(bar) Effective
area
(cm2)
Max.
Outside
Diameter
(mm)
Supplied Length(mm)
10 16 25 10 16 25
Axial Compensation(mm) Force Compress(N/mm) Flanged End Welded End
32 8 20 18 15 26 63 98 16 225 160 250 264 280
40 8 20 18 15 44 89 106 23 244 164 259 269 289
50 8 20 18 15 70 70 138 37 259 172 276 282 306
65 8 26 22 19 44 55 68 55 270 215 294 300 322
80 8 34 28 25 33 41 54 81 284 240 338 344

366



Products Features:

  • The compensator&metal expansion joints are used in a wide variety of piping application tocompensate for thermal expansion or contraction and to absorb equipment vibration or pipe motions.

  • We manufacture single, two-ply and multiply testable bellows in different sizes using precision forming technology.

  • They are used as an retractable elastic compensation element, has the advantages of thereliable working,good performance,compact structure.

  • The compensator&Metal expansion joints absorb movement in piping caused by theraml changes.

  • Durability and excellent chemical resistance.

  • Widely used to absorb termal expansion in pipe systems carring water, steam, oil and gases

  • Bellows are stainless steel with welding flanges,fixed or floating.

  • Stainless bellows compensators or expansion joints are designed according to the client'sspecifications ad design conditions

  • Control rods available ,as required.

  • Standard sizes range from 2" through 84".

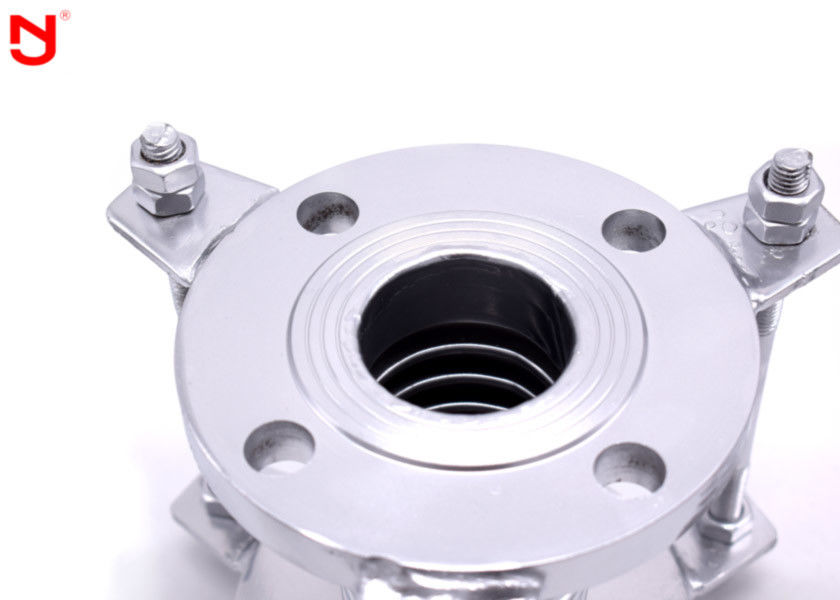

 Floating Metal Expansion Joint Corrugated Hose Compressors Inlet For Fire Protection System 1

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. Which price terms could accepted?
A: FOB,CIF all acceptable.
