Reliable Metal Expansion Joint Low Equipment Impact Vibration Multiply Testable

Reliable Metal Expansion Joint Low Equipment Impact Vibration Multiply Testable

flanged expansion joint

stainless steel bellows

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE

Model Number:

JDZ

Contact Us

Request A Quote
Product Details
Size:
DN50---DN3000
Bellows Material:
SS304,SS316,SS321
Working Pressure:
PN10,PN16,PN25,PN40,PN65
Certificate:
CE,ISO9001
Working Medium:
Water,Oil,Steam
Warranty:
24 Months
Delivery Time:
5-15 Days
Product Name:
Corrugated Expansion Joint
Technicals:
Forged
Stock:
10000
Payment & Shipping Terms
Minimum Order Quantity
1
Product Description

Newly Designed High Quality Pn10 Stainless Steel Bellows Compensators

Compensator is also called the expansion joint, or the slip joint.By work constitute the main body of the bellows, bracket structure, and end of flanges, pipe and other accessories.as kind of compensation components.Use its work subject bellows telescopic deformation effectively, to absorb the size of the change of piping, pipe,container, etc which is produced by the reason of heat bilges cold shrink,Or compensation pipeline, catheters, containers, axial, lateral and angular displacement.

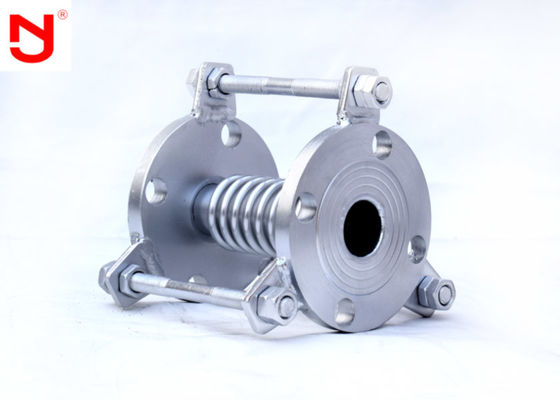

Reliable Metal Expansion Joint Low Equipment Impact Vibration Multiply Testable 0

Can also be used for noise reduction vibration reduction.Widely used in modern industry.

in order to prevent the heating pipe from high temperature, due to thermal elongation or deformation or damage of the temperature stress caused by pipeline,need to set on the pipeline compensator,To compensate for the thermal elongation Reducing wall stress and the role of force on the valve or bracket structurebest universal tile bellaw flexible flanged bellow manufacturer rubber stainless steel pipe metal bellows expansion joint.


Reliable Metal Expansion Joint Low Equipment Impact Vibration Multiply Testable 1


 Reliable Metal Expansion Joint Low Equipment Impact Vibration Multiply Testable 2

Date of bellow
DN

Number

of wave

Pressure grade(Mpa)

Available area

(cm2)

Max size

(mm)

Length(mm)
0.25 0.6 1 1.6 2.5
Flange JDZ/F
Pipe JDZ/F
Axial compensation mm/ N/mm
32 8 25/21 22/26 20/26 18/63 15/98 16 110 160/250 264/210
16 50/11 46/14 41/14 36/32 31/47 220 244/291 316/320
40 8 25/28 22/44 20/44 18/89 15/10 23 130 164/259 269/260
16 50/14 46/22 41/22 36/45 31/55 240 230/304 319/400
50 8 25/30 22/51 20/70 18/70 15/13 37 150 172/276 282/230
16 50/16 46/26 41/35 36/35 31/70 260 240/342 347/450
65 8 33/28 30/35 26/44 22/55 19/68 55 170 215/294 300/260
12 42/16 38/22 38/32 34/40 29/50 280 260/334 340/470
80 8 40/20 36/26 34/33 28/41 24/54 81 200 240/338 344/260
10 53/14 49/17 49/21 43/26 38/33 230 270/368 374/300
100 6 45/47 45/60 40/75 35/93 29/11 121 220 235/317 323/280
10 76/26 74/32 64/40 57/50 49/63 260 305/381 387/320
125 5 48/38 42/47 38/59 34/74 29/92 180 250 282/314 316/320/600
9 85/23 77/29 66/36 58/45 50/56 290 382/386 388/360
150 5 49/42 44/50 40/62 34/78 29/97 257 250 282/389 338/320
8 79/34 71/43 64/51 54/59 46/65 290 356/399 402/360
200 4 52/49 46/55 42/68 38/78 34/11 479 300 280/384 348/370/200
6 73/31 65/44 59/52 53/58 48/78 340 340/402 402/420
250 4 72/30 65/34 59/42 52/45 47/55 796 330 315/379 415/420/300
6 108/16 97/21 87/35 79/39 71/47 360 393/459 493/460
300 4 72/51 65/55 59/59 52/65 47/71 1105 340 366/427 466/480
6 108/32 97/35 87/37 79/41 71/45 400 464/525 564/520
350 4 72/58 65/62 59/67 52/74 47/81 1307 340 397/452 497/480
6 108/38 97/41 87/44 79/48 71/47 420 509/564 609/540
400 4 72/54 65/58 59/62 52/68 47/75 1611 340 412/478 512/480/430
6 108/36 97/39 87/43 79/47 71/52 420 522/588 622/560
