Product Details:
Payment & Shipping Terms:
|
| Size: | DN80----DN3000 | Material: | Ductile Iron，Stainless Steel,Carbon Steel |
|---|---|---|---|
| Warranty Time: | 18 Months | Technicals: | Forged |
| Working Temperature: | -30~400 ℃ | Sample: | Free |
| Delivery Time: | 5-15 Days | Product Name: | Dismantling Joint |
| High Light: | ductile iron dismantling joint,thrust type dismantling joint |
||

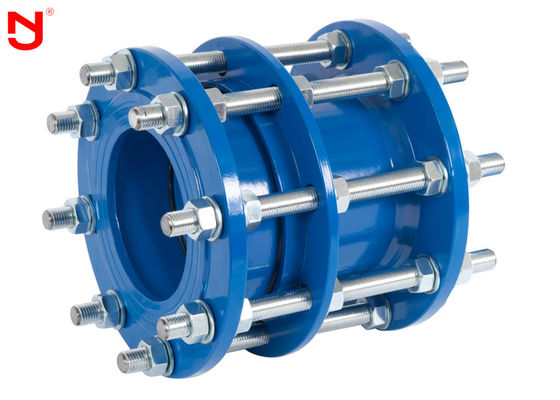

Cast iron CC2F detachable flanged transmission joint
Dismantling joint is designed to be the final closing piece in the pipe network, to ease the assembling and disassembling for later maintenance of a pump or valve. A standard adjusting range of 50mm on length and a small lateral and angular misalignment can be accommodated. This adjustability of the dismantling joint facilitates for easy removal of pumps and valves in circumstances of inspection, maintenance or replacement.
cast iron expansion flanged universal dismantling joint expanion joint
C2F dismantling joint
CC2F double flanged power delivery joint
BF Single flange limited expansion joint
AF loose flange flexible joint
telescopic joint
| Dismantling joint size | DN50-DN2000 |
| Dismantling Joint Pressure Grade | PN10,PN16,PN25 |
| Bolts, Nuts and Washers Material: | Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request. |
| Tie rod material | Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request. |
| Gasket material | For water or Gas : NBR Grade A For drinking water : EPDM rubber to BS2494:1990 type W For drinking water and sewage: SBR Grade F |
| Dismantling coating | Fusion Bonded Epoxy Coating inside and outside, or bitumen painting upon customers request. |
| Application | Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, etc |
|
DN |
Pipe Dia. |
Flange joint size |
Installation dimension |
Expansion δ |
Weight (kg) |
||||
|
|
|
Flange outer dia. |
Dia. of bolt hole |
Bolt |
Max |
Min |
|
|
|
|
|
|
|
|
No. |
Thickness |
|
|
|
|
|
65 |
76 |
185 |
145 |
4 |
18 |
220 |
180 |
40 |
13.1 |
|
80 |
89 |
200 |
160 |
8 |
20 |
220 |
180 |
40 |
15.0 |
|
150 |
168 |
285 |
240 |
8 |
22 |
220 |
180 |
40 |
33.8 |
|
200 |
219 |
340 |
295 |
8 |
24 |
220 |
180 |
40 |
41.0 |
|
250 |
273 |
395 |
350 |
12 |
24 |
220 |
180 |
40 |
55.1 |
|
300 |
325 |
445 |
400 |
12 |
24 |
245 |
195 |
50 |
68.3 |
|
400 |
426 |
565 |
515 |
16 |
26 |
245 |
195 |
50 |
101.3 |
Our tenet: your trust is our honor and we will manufacture high- quality products for you.
we can design and make the products according to your drawings and techincal requirements.The quality is better and the price is lower than the similar products another company make.
Contact Person: Wu
Tel: +86 15093112546
