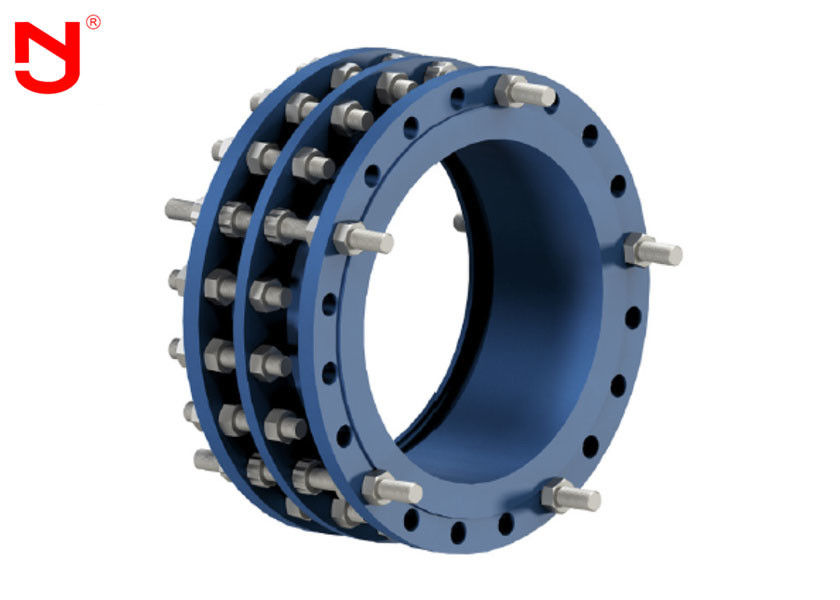

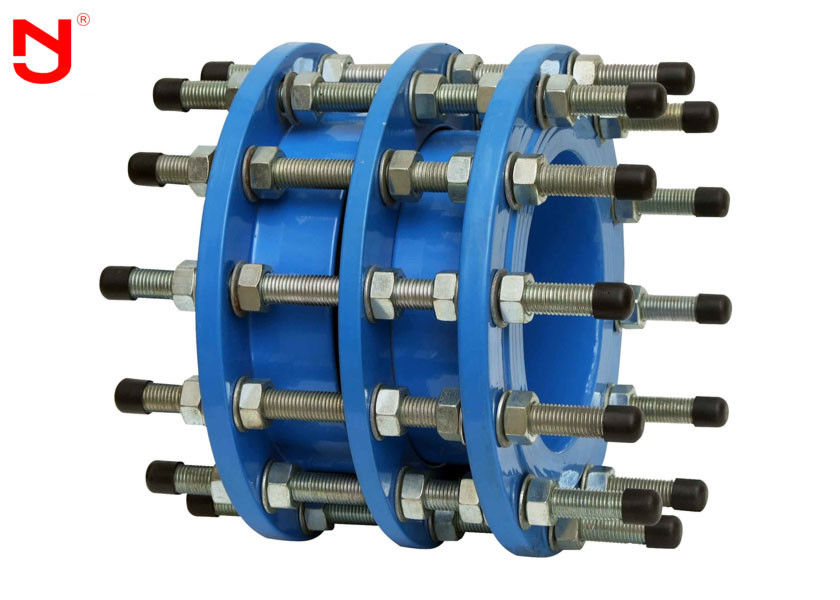

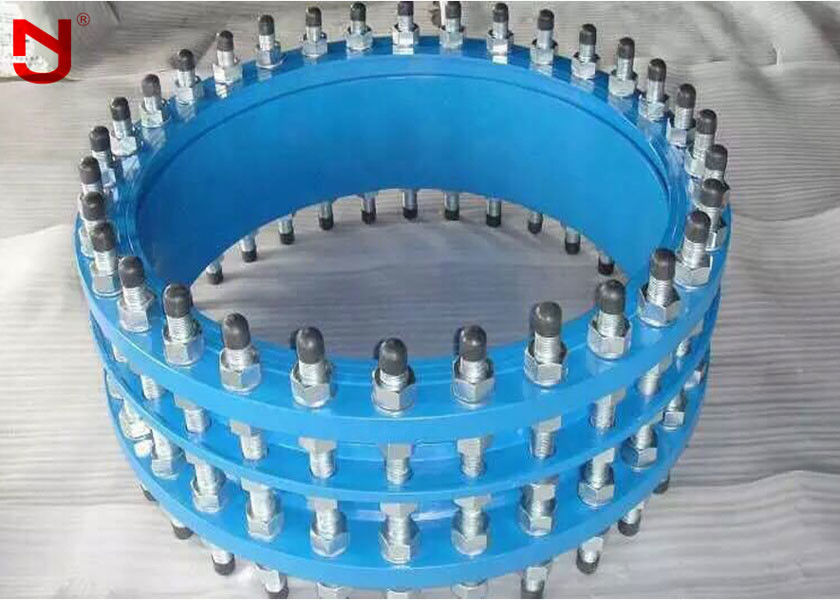

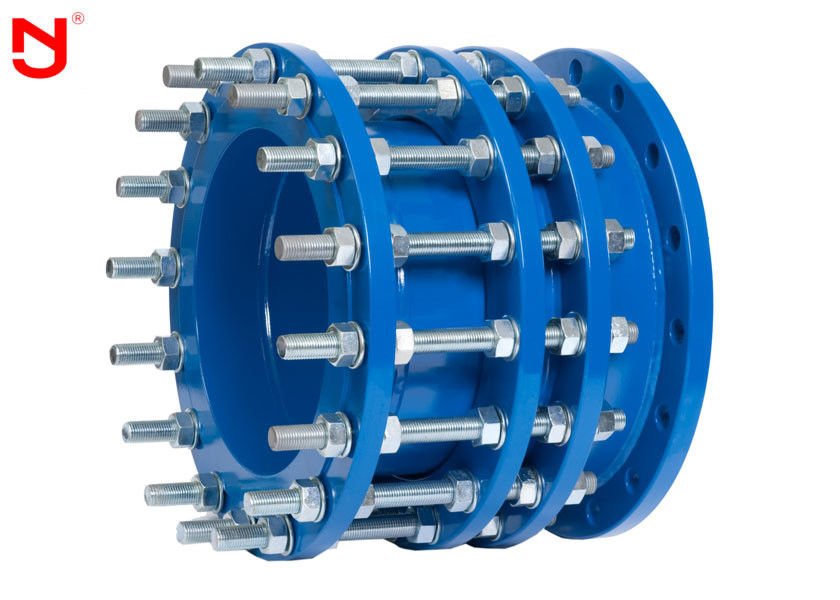

PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress

PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress
PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress

Large Image :  PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: CC2F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Detailed Product Description
Size: DN80----DN3000 Material: Ductile Iron,Stainless Steel,Carbon Steel
Warranty Time: 18 Months Flange Standard: DIN,ANSI,JIS
Working Temperature: -30~400 ℃ Name: Telescope Joint
In Stock Quantity: 2000 Product Name: Pipe Fittings
High Light:

restrained dismantling joint

,

thrust type dismantling joint

wholesale PN10/PN16/PN25 carbon steel material slip joint/telescopic joint



Wholesale PN10/PN16/PN25 carbon steel material slip joint/telescopic joint, pipes and other devices connected to the pipeline of new products, connected by the bolt, making it a whole, and has certain displacement, convenient installation. Can withstand axial stress of pipeline. So you can at the time of installation and maintenance, according to the on-site installation size adjustment, at work, not only improve the work efficiency, but also for pump, valve, pipeline equipment play a protective role.

PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress 0




cast iron expansion flanged universal dismantling joint expanion joint

C2F dismantling joint

CC2F double flanged power delivery joint

BF Single flange limited expansion joint

AF loose flange flexible joint

telescopic joint



Dismantling joint size DN50-DN2000
Dismantling Joint Pressure Grade PN10,PN16,PN25
Bolts, Nuts and Washers Material: Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
Tie rod material Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
Gasket material For water or Gas : NBR Grade A
For drinking water : EPDM rubber to BS2494:1990 type W
For drinking water and sewage: SBR Grade F
Dismantling coating Fusion Bonded Epoxy Coating inside and outside, or bitumen painting upon customers request.
Application Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, etc


PN10 PN16 PN25 Ductile Pipe Fittings Slip Type Convenient Installation Withstand Axial Stress 1



DN

Pipe Dia.

Flange joint size

Installation dimension

Expansion δ

Weight (kg)





Flange outer dia.

Dia. of bolt hole

Bolt

Max

Min













No.

Thickness









65

76

185

145

4

18

220

180

40

13.1

80

89

200

160

8

20

220

180

40

15.0

150

168

285

240

 8

22

 220

180

40

33.8

200

219

340

295

 8

24

 220

 180

40

41.0

250

273

395

350

12

 24

 220

180

40

55.1

300

325

445

400

 12

 24

245

195

50

68.3

400

426

565

515

 16

26

245

195

50

101.3







Our tenet: your trust is our honor and we will manufacture high- quality products for you.

we can design and make the products according to your drawings and techincal requirements.The quality is better and the price is lower than the similar products another company make.
