Place of Origin:
China
Brand Name:
JINGNING
Certification:
CE,ISO9001
Model Number:
VSSJAF
Contact Us
Video

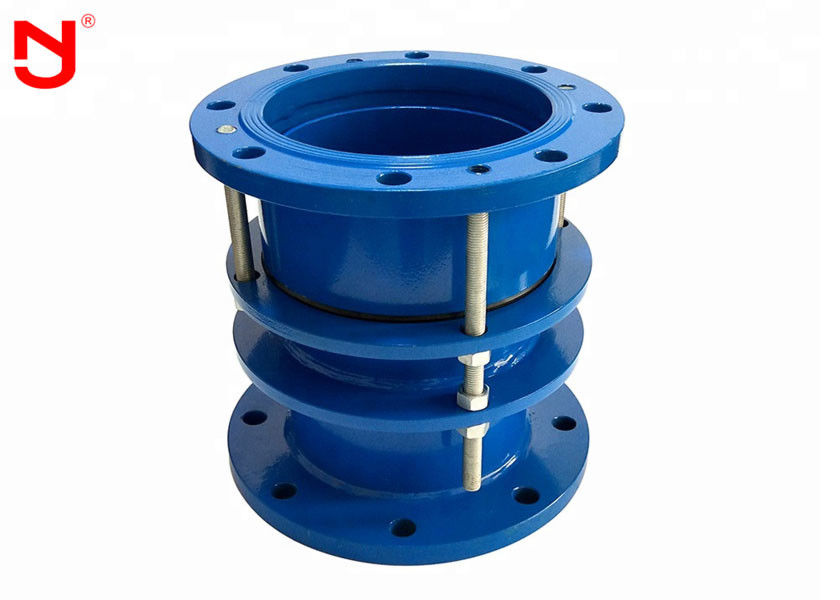

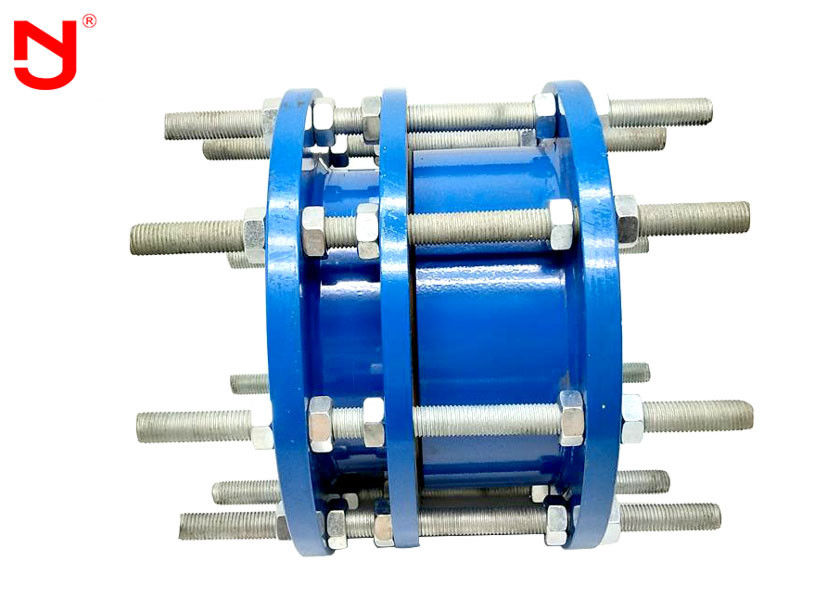

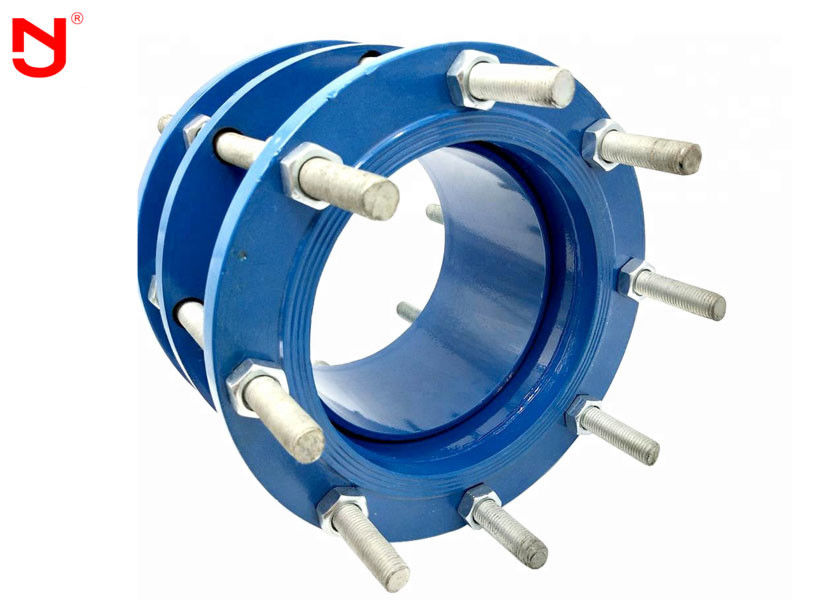

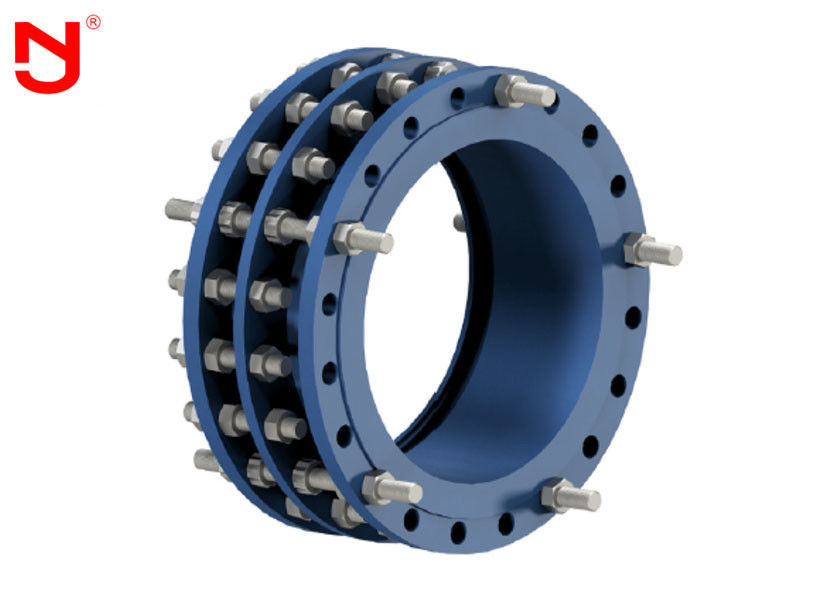

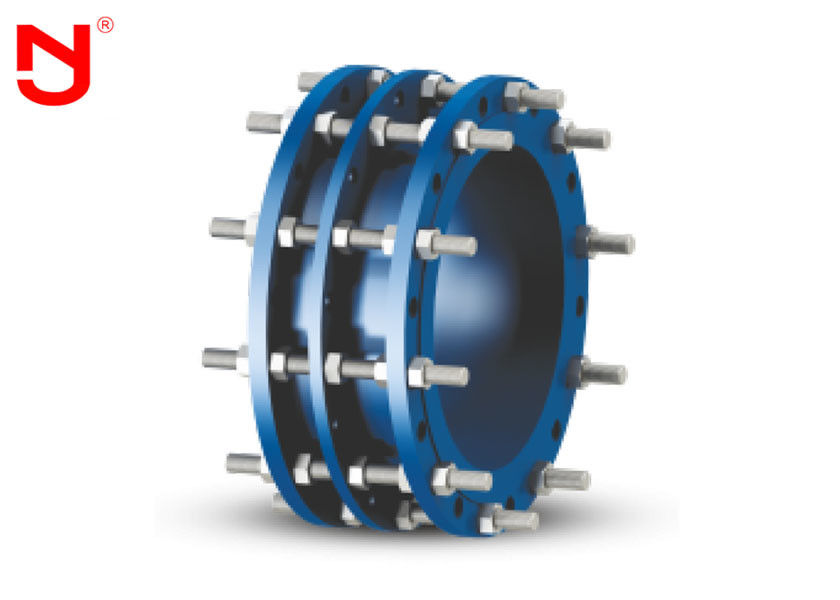

24 months warranty cast diamantling joint expansion joint china telescopic pipe joints
cast iron expansion flanged universal dismantling joint expanion joint
C2F dismantling joint
CC2F double flanged power delivery joint
BF Single flange limited expansion joint
AF loose flange flexible joint
telescopic joint
| Dismantling joint size | DN50-DN2000 |
| Dismantling Joint Pressure Grade | PN10,PN16,PN25 |
| Bolts, Nuts and Washers Material: | Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request. |
| Tie rod material | Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request. |
| Gasket material | For water or Gas : NBR Grade A For drinking water : EPDM rubber to BS2494:1990 type W For drinking water and sewage: SBR Grade F |
| Dismantling coating | Fusion Bonded Epoxy Coating inside and outside, or bitumen painting upon customers request. |
| Application | Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, etc |
|
DN |
Pipe Dia. |
Flange joint size |
Installation dimension |
Expansion δ |
Weight (kg) |
||||
|
|
|
Flange outer dia. |
Dia. of bolt hole |
Bolt |
Max |
Min |
|
|
|
|
|
|
|
|
No. |
Thickness |
|
|
|
|
|
65 |
76 |
185 |
145 |
4 |
18 |
220 |
180 |
40 |
13.1 |
|
80 |
89 |
200 |
160 |
8 |
20 |
220 |
180 |
40 |
15.0 |
|
150 |
168 |
285 |
240 |
8 |
22 |
220 |
180 |
40 |
33.8 |
|
200 |
219 |
340 |
295 |
8 |
24 |
220 |
180 |
40 |
41.0 |
|
250 |
273 |
395 |
350 |
12 |
24 |
220 |
180 |
40 |
55.1 |
|
300 |
325 |
445 |
400 |
12 |
24 |
245 |
195 |
50 |
68.3 |
|
400 |
426 |
565 |
515 |
16 |
26 |
245 |
195 |
50 |
101.3 |
FAQ:
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao, Tianjin or Guangzhou, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
