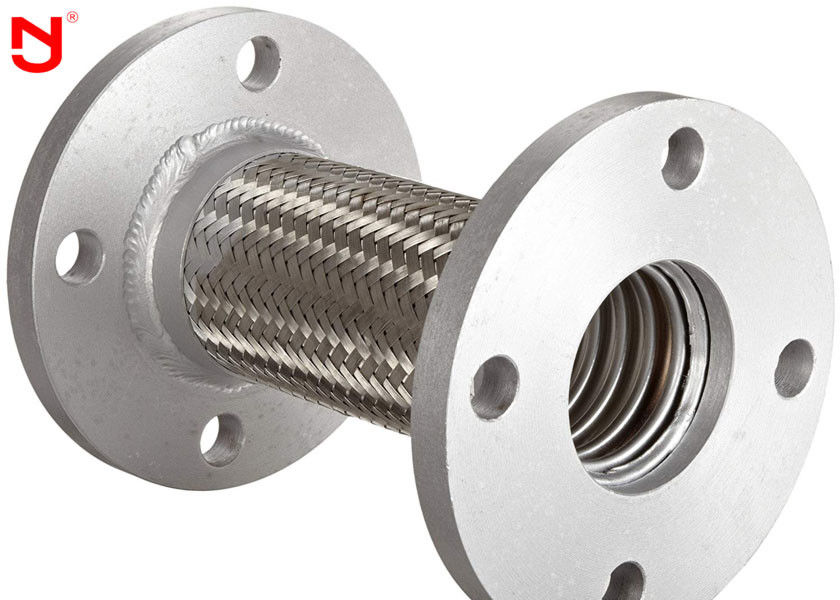

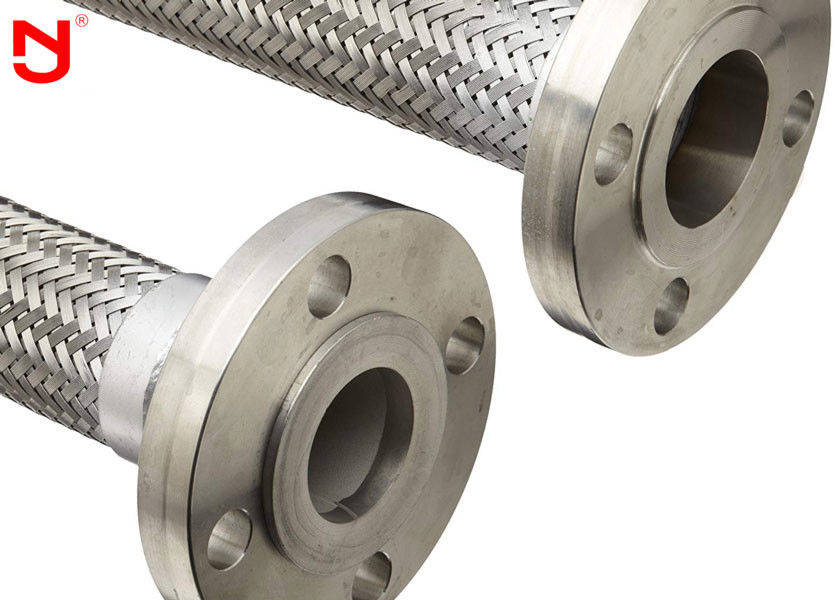

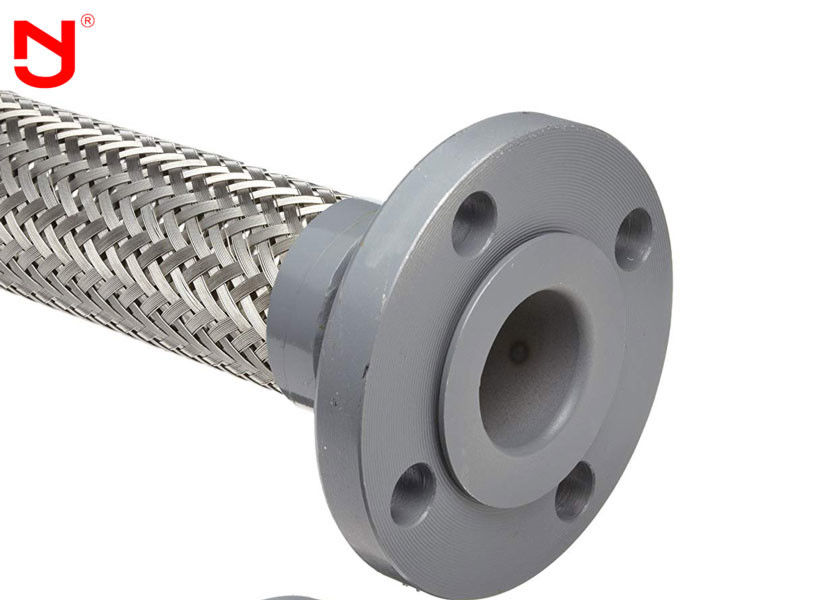

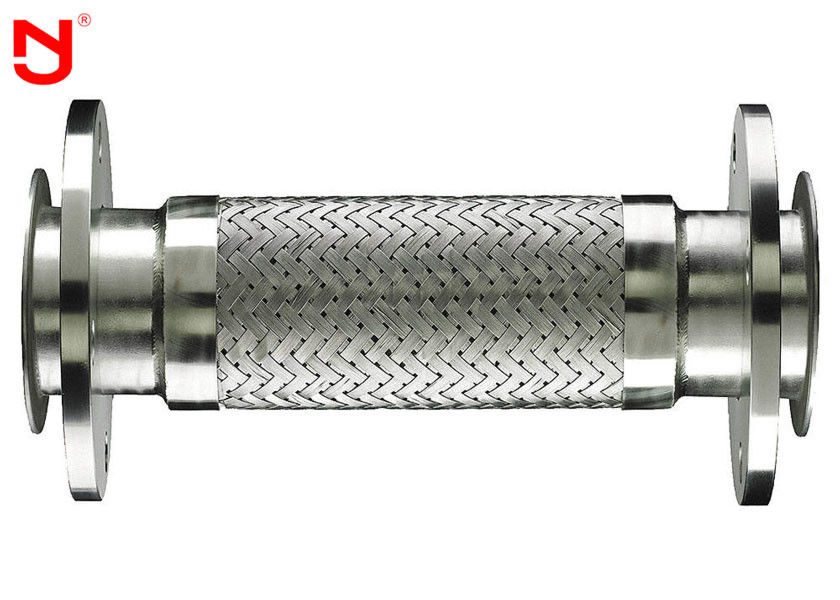

Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector Corrosion Resistant

Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector  Corrosion Resistant
Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector  Corrosion Resistant Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector  Corrosion Resistant Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector  Corrosion Resistant Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector  Corrosion Resistant

Large Image :  Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector Corrosion Resistant

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20---500
Packaging Details: Wooden Box
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 Sets/Week
Detailed Product Description
Size: DN50----DN2000 Bellows Material: SUS 304,SS316
Flange Standard: DIN,BS Flange Material: Carbon Steel
Welding Line Type: Sprial Welded Reinforcement: High Tensile Steel Wire
OEM&ODM: Yes Product Name: Metal Hose
High Light:

stainless braided hose

,

braided expansion joint

Double wire braided corrugated sus304 stainless steel tube/pipe flexible hose



CONSTRUCTION



outer braided layer

one or multilayer wire or steel belt net

with joints or flanges at both ends



CHARACTERISTIC



corrosion-resistance, high temperature resistance, low temperature resistance (-196°C~+420°C),light weight, small volume, and good flexibility. It is widely used in aviation, spaceflight, oil, chemical industry, metallurgy, power, papermaking, wood, textile, building, medicine, food, tobacco, traffic and etc.big diameter mud hose



Inner Core: Corrugated Stainless Steel



Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel

Stainless steel tubing formed into corrugations parallel to one another

Helical / Convoluted option available upon request



 Outer Core:Braided Stainless Steel Layers



Purchase corrugated core hose with no layers, single or double braided

Flexible metal hose outer braid layers made from 304 stainless steel



 What is the condition of our metal flexible hose ?





Connection type

Flanged/threaded/quick coupling/welding

Hose material

Ss304/ss316/ss321

Diameter

DN6-DN700

Pressure

6bar-25bar

Temperature

-196℃~+600℃

Length

According to your request

Thickness

5mm-20mm



To properly design a metal hose assembly for a particular application, the following design parameters must be determinde:



1. Temperature-----You should provide us information as the temperature to which the assembly is exposed a proper fit.

2. Size-----The diameter of the connections in which the assembly will be installed is needed to provide.

3. Media-----This is improtant since you must be sure that the assembly's components are chemically compatible with the media going through the hose as well as the environment in which the hose is installed.

4. Pressure-----identify the internal pressure to which the assembly will be exposed. This information is important to determine if the assembly is strong enough for the application.

5. Indenify the necessary end fittings-----This is required since fittings for the assembly must be chosen to properly fit the mating connection.



What is the parameter of our metal flexible hose?



Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector  Corrosion Resistant 0

Double Wire Metal Braided Hose Steel Belt Net Both Ends Flange Connector  Corrosion Resistant 1
