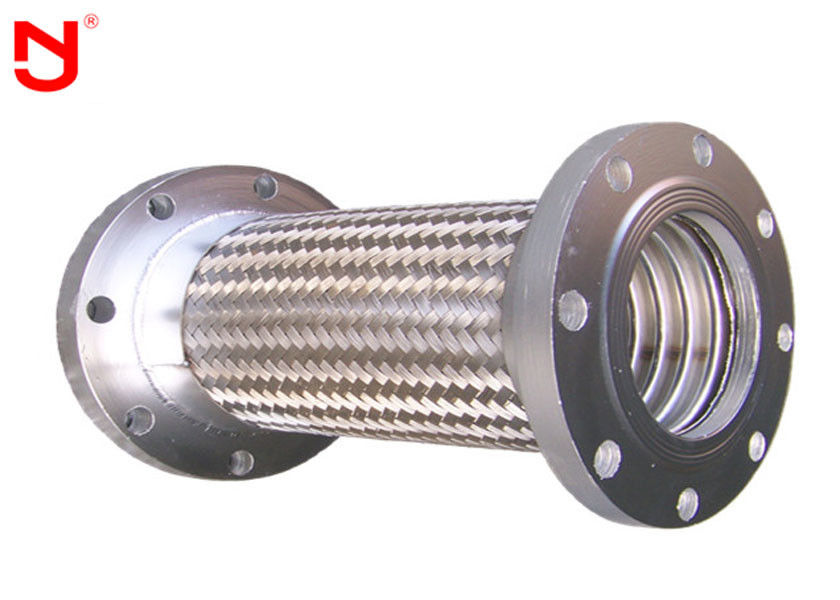

Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange

Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange
Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange

Large Image :  Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: JR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20---500
Packaging Details: Wooden Box
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 Sets/Week
Detailed Product Description
Size: DN50----DN2000 Bellows Material: SUS 304,SS316
Certificate: CE, ISO 9001 Flange Material: Carbon Steel,SS304,SS316
Welding Line Type: Sprial Welded Reinforcement: High Tensile Steel Wire
OEM&ODM: 15 Years' Experience Product Name: Stainless Steel Hose
High Light:

stainless braided hose

,

flexible hose connector

China Factory Flexible Stainless Steel Braided Metal Hose With Flange



What is the condition of our metal flexible hose ?



Connection type Flanged/threaded/quick coupling/welding
Hose material Ss304/ss316/ss321
Diameter DN6-DN700
Pressure 6bar-25bar
Temperature -196℃~+600℃
Length According to your request
Thickness 5mm-20mm



To properly design a metal hose assembly for a particular application, the following design parameters must be determinde:



1. Temperature-----You should provide us information as the temperature to which the assembly is exposed aproper fit.

2. Size-----The diameter of the connections in which the assembly will be installed is needed to provide.

3. Media-----This is improtant since you must be sure that the assembly's components are chemically compatible with the media going through the hose as well as the environment in which the hose is installed.

4. Pressure-----identify the internal pressure to which the assembly will be exposed. This information is important to determine if the assembly is strong enough for the application.

5. Indenify the necessary end fittings-----This is required since fittings for the assembly must be chosen to properly fit the mating connection.



metal bellow hose information:

Braided flexible connectors are an important part of a wide range of systems that require flexibility in fluid transfer. They are constructed from lengths of corrugated stainless steel bellows which are covered with flexible stainless steel braiding to add strength.

metal bellow hose features:

1. Absorbs thermal growth in the piping and provides protection to adjacent piping and equipment.

2. Provides compensation for mis-alignments and eliminates stress.

3. Absorbs mechanical equipment vibrations in the connected piping.

4. Noise associated with the vibration is eliminated.

5. Lowers overall operating costs.

6. Service life is substantially higher compared to Rubber Expansion Joints.





Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange 0









What is the parameter of our metal flexible hose?

Pipeline Metal Expansion Joint Sprial Welded Absorbs Thermal Growth With Flange 1
